SPECIFICATIONS-
- DSP Processor: Cirrus Logic CS47048
- Power: 150 MHz/32 bit/192 KHz
- 8-Channels
- ADC: Cirrus Logic CS47048 32 bit/192 KHz
- ADC Dynamic Range/THD: 108 dB/-98 dB
- DAC: Cirrus Logic CS8422 24 bit/192 KHz
- DAC Dynamic Range/THD: 140 dB/-120 dB
- Low level (Pre)/Sensitivity: 1-5 VRMS
- High Level (Spk In)/Sens.: 2-20 V
- Optical Digital IN: 24 bit-192 KHz
- Coaxial Digital IN: 24 bit-192 KHz
- Freq. Response (-3dB): 10 Hz - 22.5 KHz
- S/N Ratio only DSP Digital Input: 110 dBA
- S/N Ratio only DSP Analog Input: 106 dBA
- S/N Ratio Amp + DSP at max. power: 95 dBA
- THD+N only DSP Digital Input: 0,002 %
- THD+N only DSP Analog Input: 0,005 %
- THD+N Amplif. + DSP Analog Input: 0,07 %
- Crosstalk at 1 Khz only DSP: 90 dB
- Crosstalk Amplifier + DSP: 45 dB
- Amp Power @ 4Ω: 6 x 80 watts
- Amp Power @ 2Ω: 6 x 120 watts
- Amp Power @ 4Ω Bridged: 3 x 240 watts
- F/R EQ: 1-6 ch Gr. & Par./31 poles
- Effect EQ: 7-8 ch Gr. & Par./11 poles
- Mute/Solo: Yes, each channel
- Time Align. (Range/Steps): 0/15 ms / 0.02 ms
- Max Delay (Cm/Steps): 515 cm / 0.68 cm
- Polarity: 0/180°

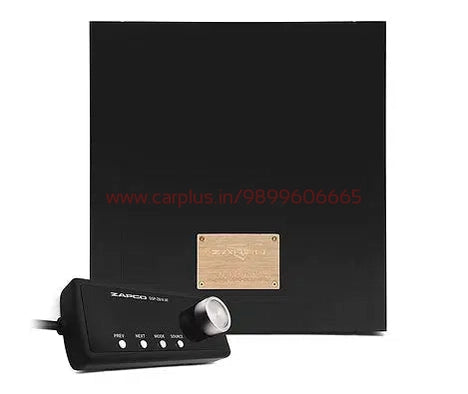

- Remote Control included
- HD-BT Streaming (with optical HD-BT
- PC/Display Connection: USB/6-pin Mini DIN
- Unit Dimensions: 213(W) x 222(L) x 50(H)
