SKU: ZAPCO00011

ZAPCO

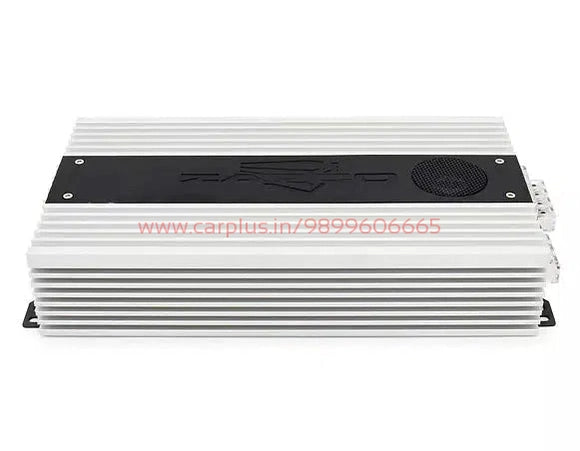

ZAPCO 4CH Sound Q Class AB Amplifier - ST-4X SQ III

Rs. 34,990.00

Rs. 31,490.00
( / )
Click here to be notified by email when ZAPCO 4CH Sound Q Class AB Amplifier - ST-4X SQ III becomes available.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question
FEATURES AND FUNCTIONS
  • 4-Channel, Full Range, Class A/B
  • SQ Upgrades: Op-amps, Caps, Etc.
  • Tiffany style Panel Mount RCA’s
  • RCA and Speaker Level Inputs
  • Variable input gain control
  • Variable electronic crossover
  • Auto-on with Speaker level inputs
  • New aluminum chassis

SPECIFICATIONS
  • Power @ 4Ω: 4 x 70 watts
  • THD @ Rated Power  < 0.1% THD
  • Power @ 2Ω: 4 x 95 watts
  • Power Bridged @ 4Ω: 2 x 190W RMS
  • Signal to Noise Ratio > 95dB
  • Channel Separation  >60dB
  • Frequency Response 15Hz to 30KHz ±1dB
  • Input Sensitivity .25v to 5v
  • Dimensions in mm: 160(W) x 58(H) x 300(L) Overall: 160(W) x 58(H) x 325(L)
