SKU: ZAPCO00009

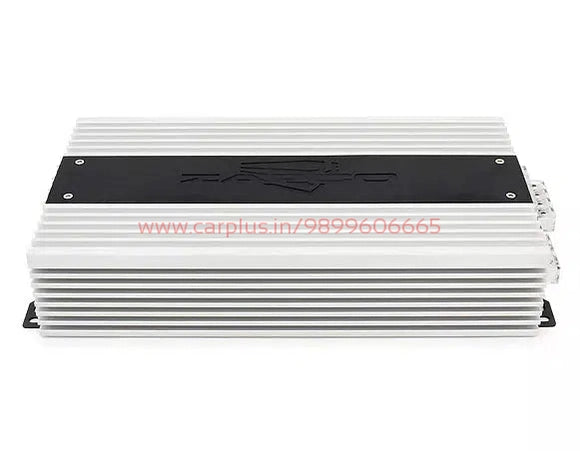

ZAPCO 4CH Class D SQ Amplifier - ST-204D SQ III

Sale price

Rs. 64,990.00

Regular price Rs. 58,490.00
( / )
Click here to be notified by email when ZAPCO 4CH Class D SQ Amplifier - ST-204D SQ III becomes available.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question
FEATURES AND FUNCTIONS
  • 4-Channel, Full Range, Class D
  • RCA and Speaker Level inputs
  • Variable input gain control
  • Variable electronic crossover
  • Variable bass boost control

SPECIFICATIONS
  • Power @ 4Ω: 4 x 200 watts RMS
  • THD @ Rated Power  < 0.5%THD
  • Power @ 2Ω: 4 x 290 watts RMS
  • Power Bridged @ 4Ω: 2 x 580 W RMS
  • Signal to Noise Ratio > 90dB
  • THD + Noise < 0.1%
  • Frequency Response 15Hz to 30KHz ±1dB
  • Input Sensitivity .25v to 5v
  • Dimensions in mm: 160(W) x 58(H) x 300(L) Overall: 160(W) x 58(H) x 325(L)
