PRODUCT DESCRIPTIONS-

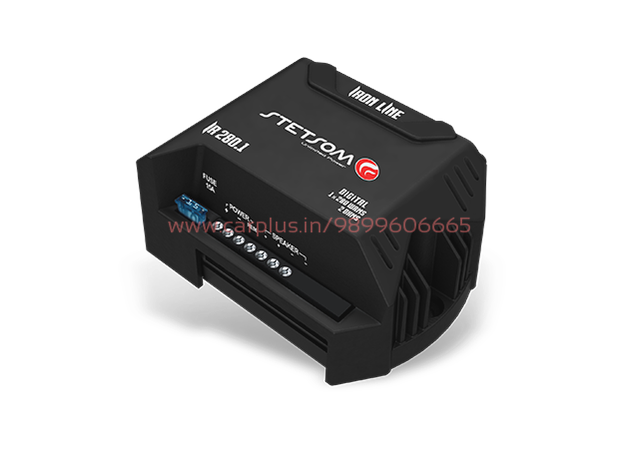

The IR280.1 Car Audio Amplifier is ideal for internal sound and can be installed with 1 SubWoofer or also for Trio Type: installing with Woofer, drivers and tweeters.
- Very compact Amplifier.
- Amazing an Bold design.
- Power Supply reinforced for Bold Bass and High fidelity in midrange and treble.
- Safety Energy Technology: great energy efficiency.
Technical Specifications-
| CHARACTERISTICS | IR 280.1 |
| Number of Channels | 1 |
| RMS Power at 2 Ohm 12.6V | 1 x 220W RMS |
| RMS Power at 4 Ohm 12.6V | 1 x 120W RMS |
| RMS Power at 2 Ohm 13.8V | 1 x 280W RMS |
| RMS Power at 4 Ohm 13.8V | 1 x 150W RMS |
| Supply Voltage | 9,5 ~ 15Vdc |
| Frequency Response | 10Hz ~35KHz |
| Crossover Low Pass | L.P.F: 90Hz |
| Crossover High Pass | H.P.F: 50Hz / H.P.F: 700Hz |
| Signal to Noise | > 90 dB |
| Harmonic Distortion | > 0,03 % THD |
| Input Sensitivity | 230mV |
| Input Impedance | 44K OHMS |
| Impedance Output | 2 OHMS |
| Consumption with Signal Musical | 11,5A |
| Consumption with Signal Bass | 23A |
| Dimensions (H x W x D) mm | 48 x 78 x 112 mm |
| Weight Kg | 0,355 Kg |
