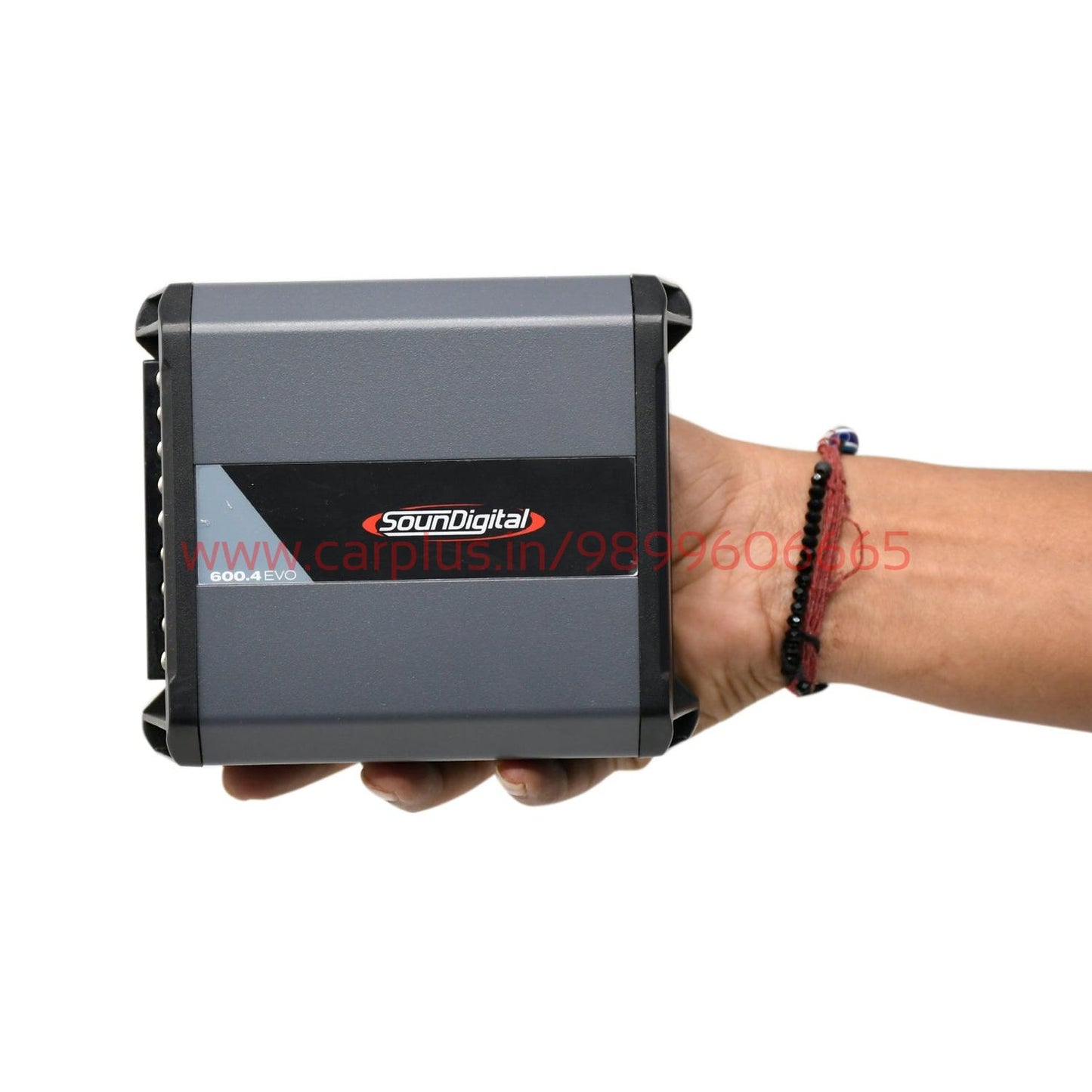

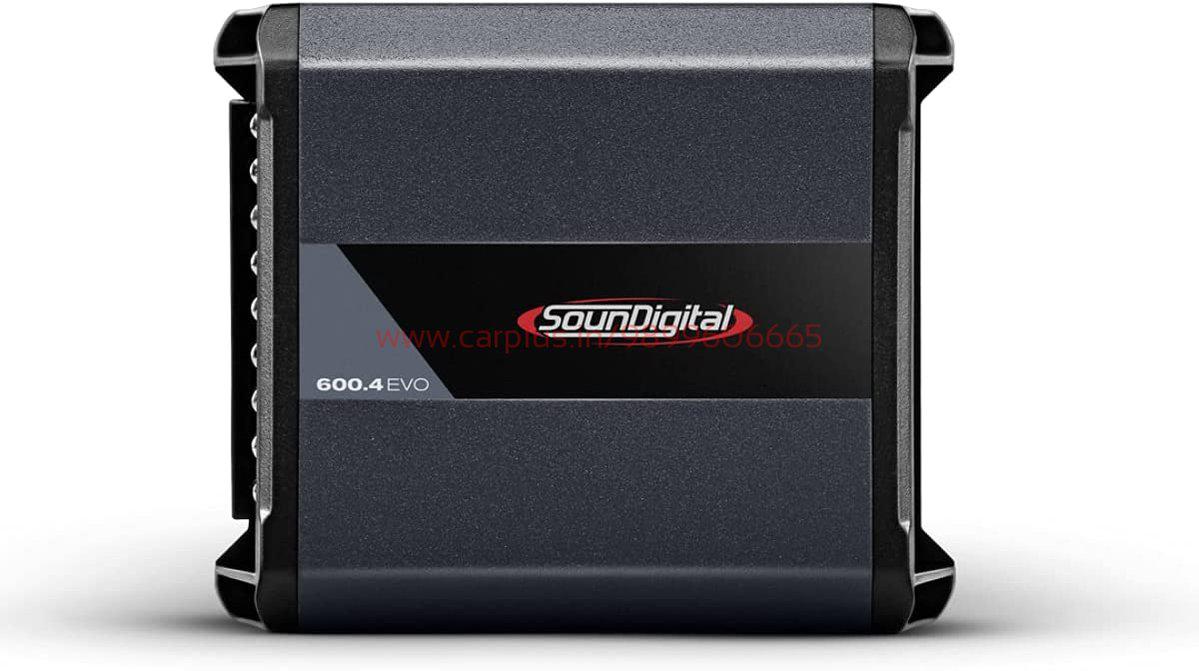

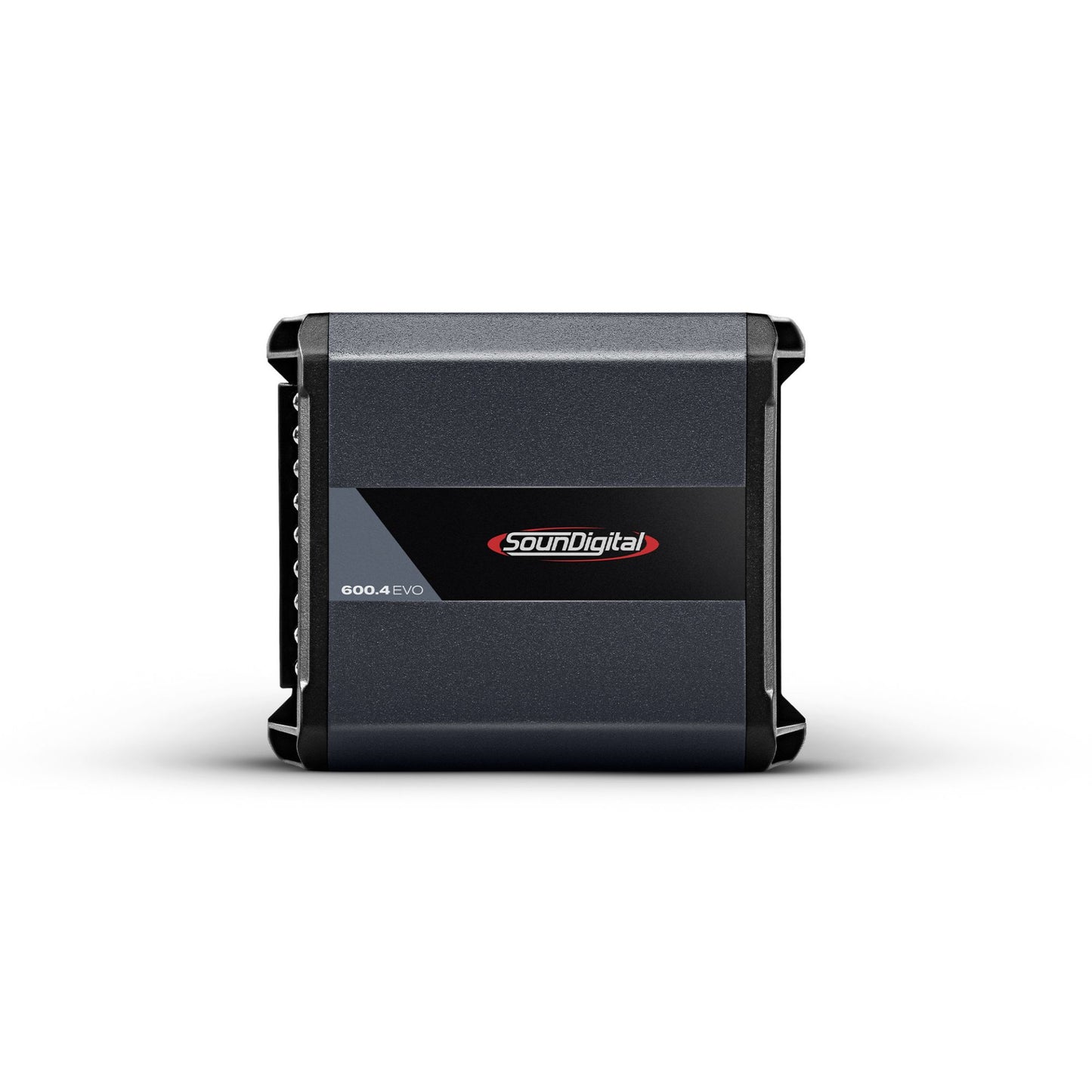

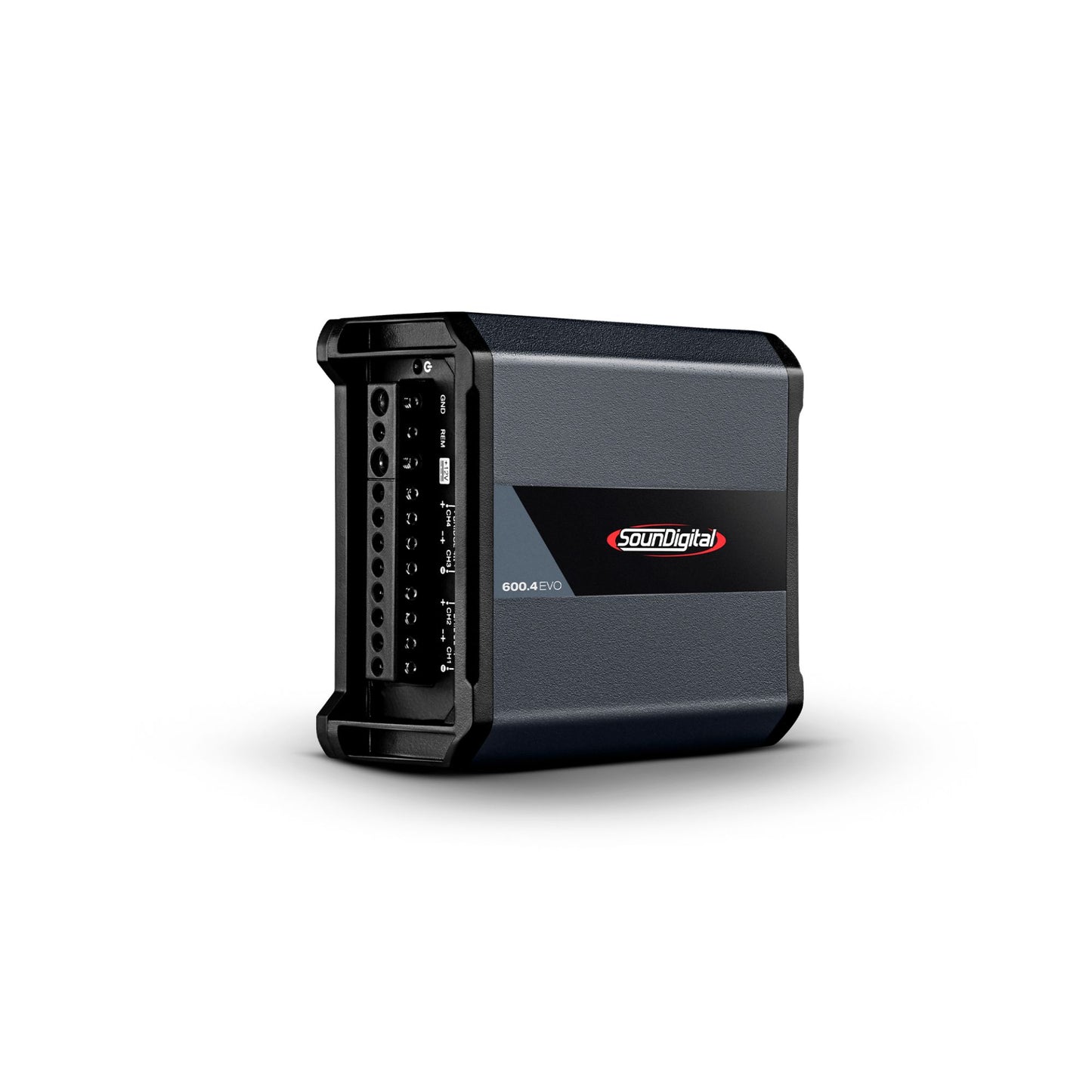

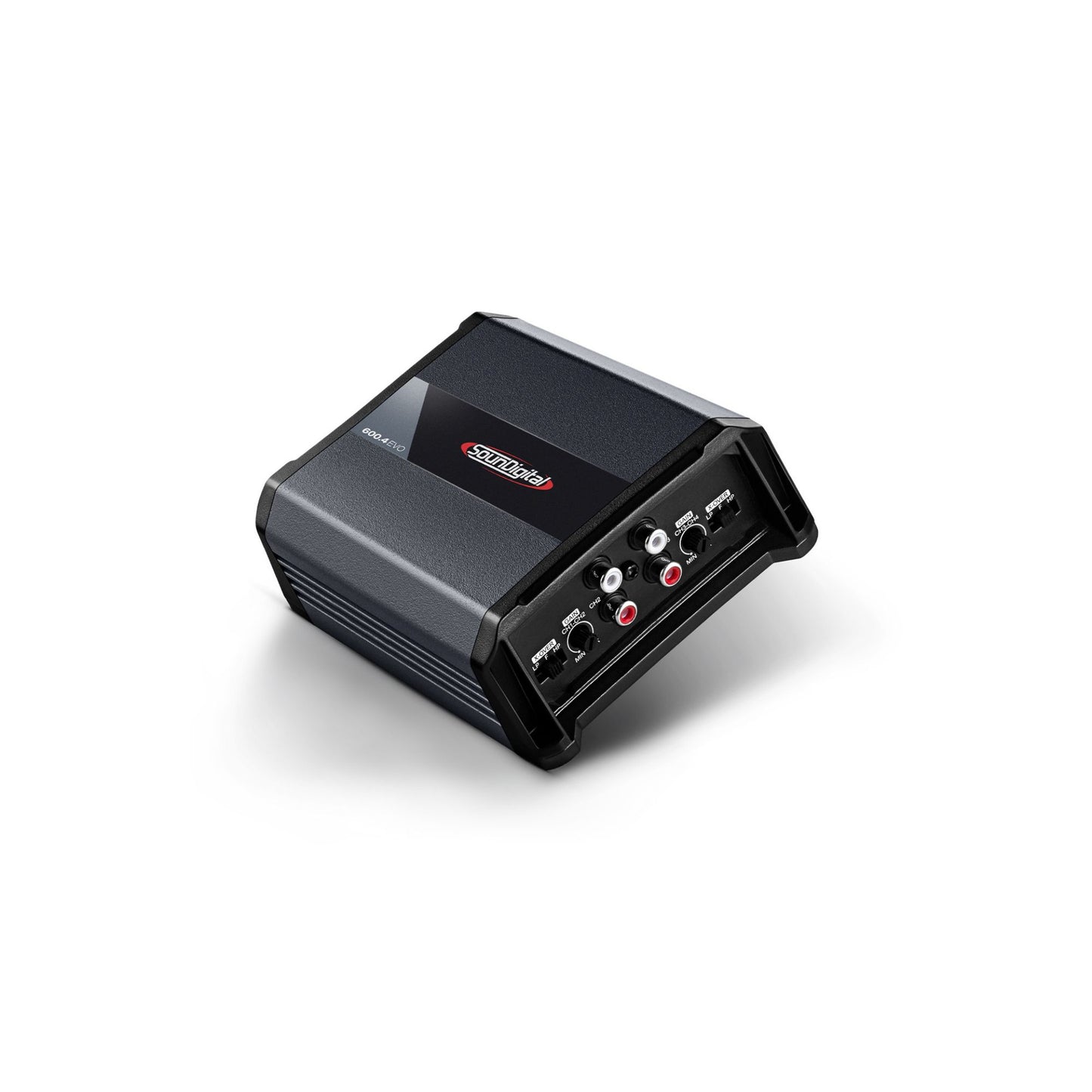

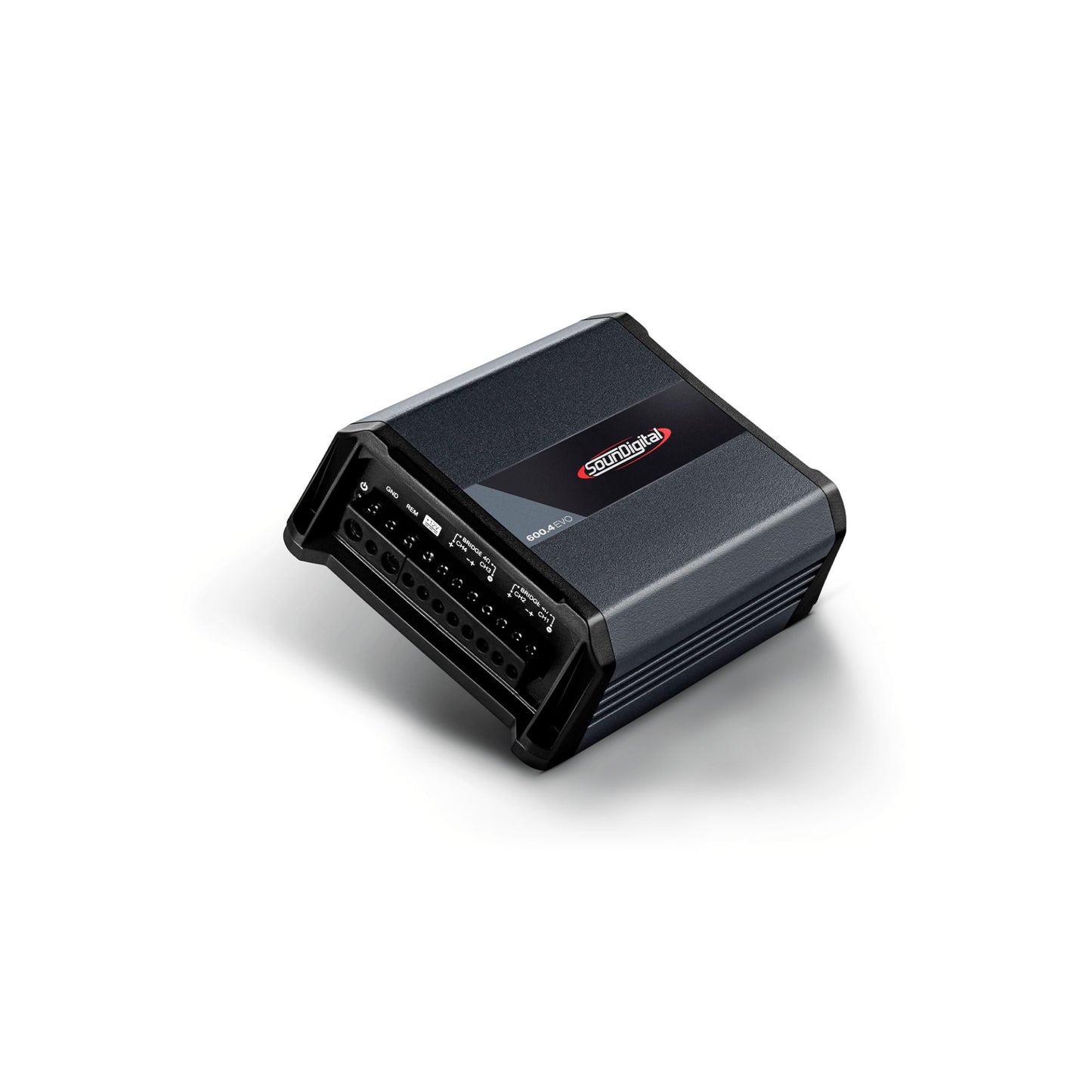

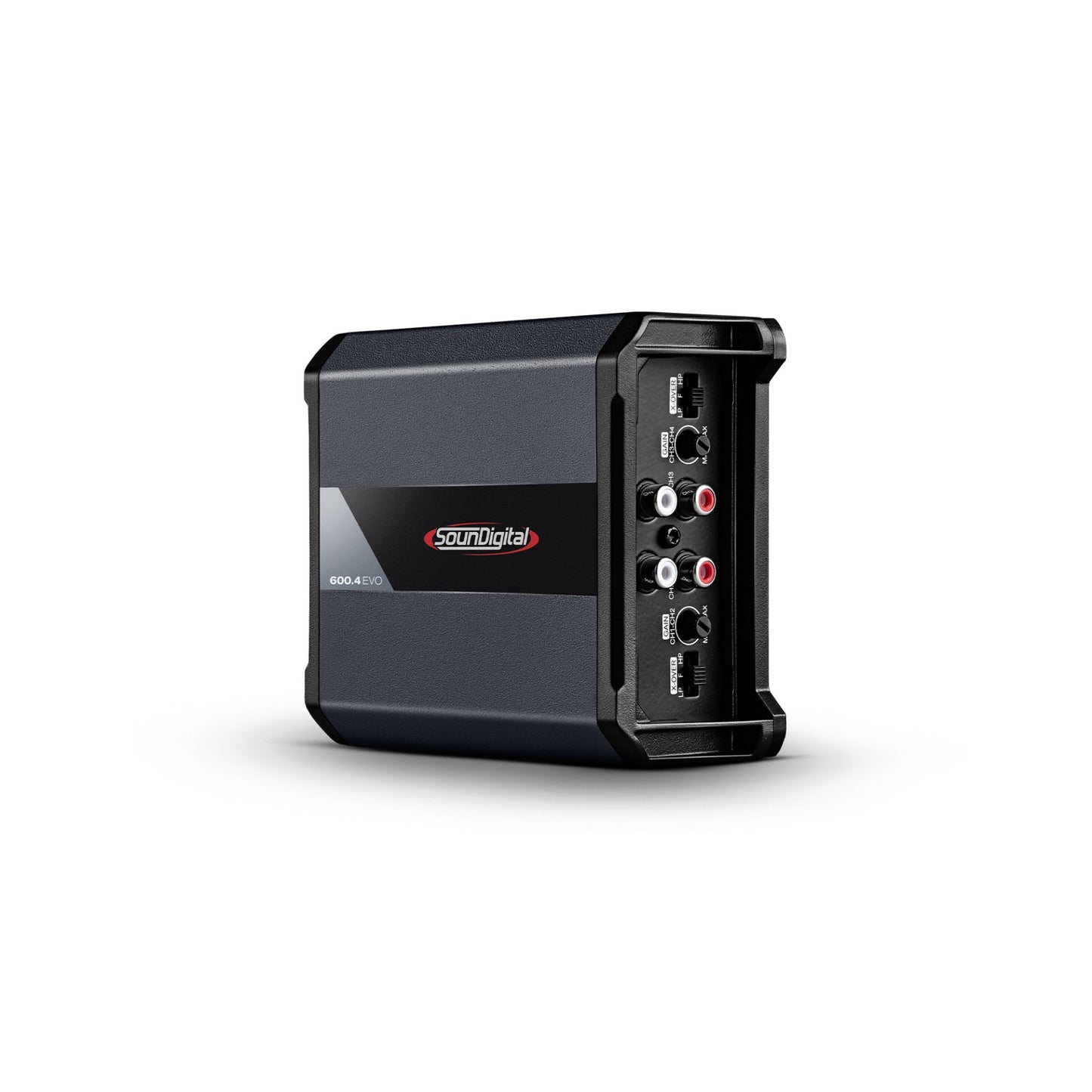

The 600.4 EVO 4.0 is a compact, modern amplifier that delivers 600W RMS of power distributed over 4 channels.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
General Specifications
-
600.4 EVO 4.0 – 4 OHMS
Power @ 1Ω: N/A
Power @ 2Ω: 4 X 150W RMS
Power @ 4Ω: 4 X 100W RMS
Bridge Power @ 2Ω: N/A
Bridge Power @ 4Ω: 2 X 300W RMS -
Operating Voltage:
8V – 16V
-
Current Draw (Music):
29A
-
Current Draw (Max):
58A
-
Recommended Fuse (Music):
35A
-
Total Efficiency:
82%
-
Damping Factor:
200
-
Frequency Response (-3dB):
10Hz – 20kHz
-
SNR:
88dB
-
Crossover
LPF / HPF: 80Hz
-
Width:
4.4 in / 11,3 cm
-
Length:
5.3 in / 13,5 cm
-
Height:
2 in / 5,1 cm
-
Weight:
0,67 Kg
