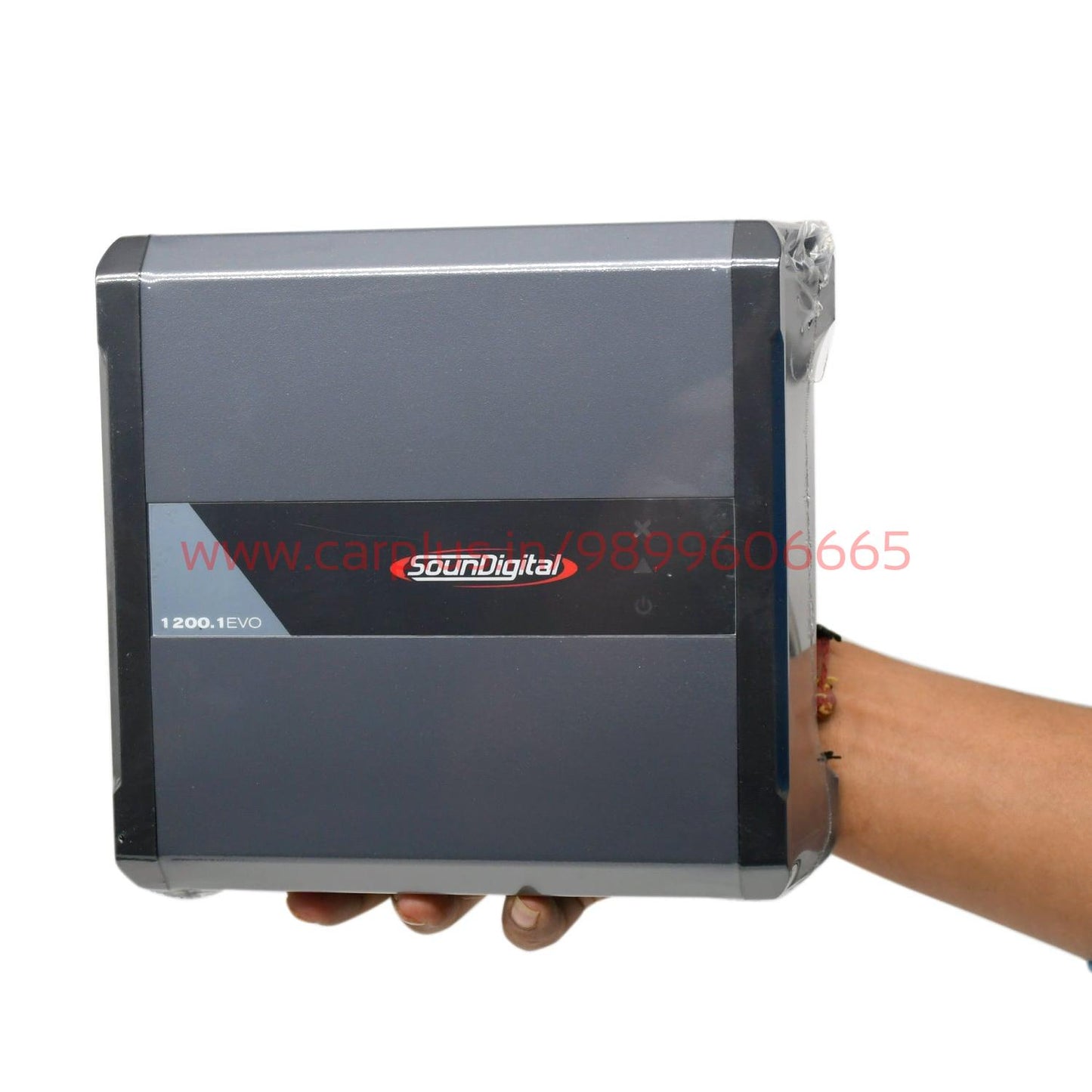

The 1200.1 EVO 4.0 is a compact and modern amplifier that delivers 1200W RMS of power over 1 channel.
The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.
General Specifications
+
-
1200.1 EVO 4.0 – 1 OHM
Power @ 1Ω: 1 X 1200W RMS
Power @ 2Ω: 1 X 660W RMS
Power @ 4Ω: 1 X 363W RMS -
Operating Voltage:
8V – 16V
-
Current Draw (Music):
63A
-
Current Draw (Max):
127A
-
Recommended Fuse (Music):
70A
-
Total Efficiency:
75%
-
Damping Factor:
>1000
-
Frequency Response:
5Hz – 20kHz
-
SNR:
99dB
-
Crossover
LP: 50Hz – 500Hz
HP: 5Hz – 80Hz -
Width:
7.1 in / 18.1 cm
-
Length:
8 in / 20.5 cm
-
Height:
2.2 in / 5.7 cm
-
Weight:
1.37 kg
