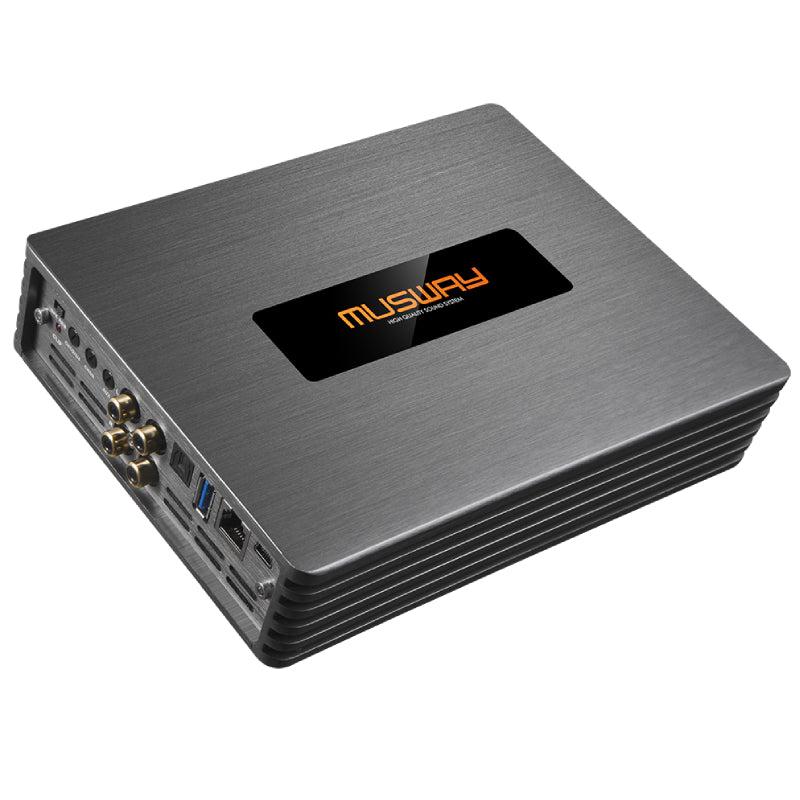

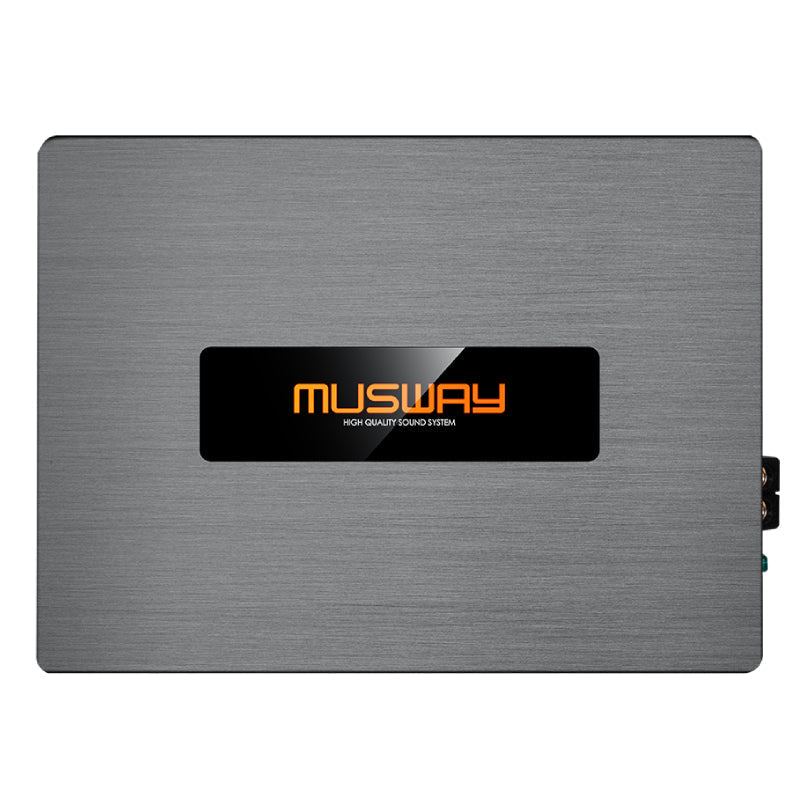

MUSWAY 8 Channel DSP with 6 Channel Amplifier - (M6 V4-512K)

The 6-channel M6 power amplifier is not only a bestseller in the Musway range, but has been making car hi-fi history for years. In the January 2025 issue of Car & Hifi, the new v4 version secured two first-place finishes: It was named "BEST PRODUCT" in the top-of-the-range category and was chosen by the editors as "PRODUCT OF THE YEAR 2025" in the DSP power amplifier category. The excellent sound and noticeable increase in power overshadowed everything else: In the test lab, the new M6 impressed with 6 x 96 watts at 4 ohms and a whopping 6 x 166 watts at 2 ohms – more than ever before. The fact check confirms: Musway's performance figures are not only reliable – they are even exceeded!

High-quality components are also a given for Musway in the area of signal processors: The Analog Devices™ ADAU1452 DSP chip is used, combined with signal converters from Burr-Brown™. Sound adjustments can be made instantly via a smartphone app or conventional PC software. Whether frequency response or time correction, Q-factor or time adjustment, phase shift, or complex crossover configurations, a wide range of settings are available to professionally meet all your audiophile requirements. Plug and play via MX-Connect™ or ISO version.

The M6Evo features a 20 cm cable with open ends, while the M6 comes with a 2.5 meter ISO cable for easy plug-and-play connection to the car radio. Numerous optional T-cable sets are available for easy plug-and-play connection of the M6.

Also available as a 24V version.

Characteristics:

• Intelligent high-level input with EPS ® (Error Protection System)

• Start-stop ready, automatic switch-on function

• Burr-Brown converter (PCM3168A) and Analog Devices DSP (ADAU1452)

• 512k Bit DSP technology, controllable via DSP software and smartphone app

• Soft clipping (power attenuation) in 2 ohm operation

• Signal-to-noise ratio 94 dB, frequency response 10 Hz – 20 kHz (-3 dB)

• THD 0.014% (1 kHz, 4 ohms, 5 W)

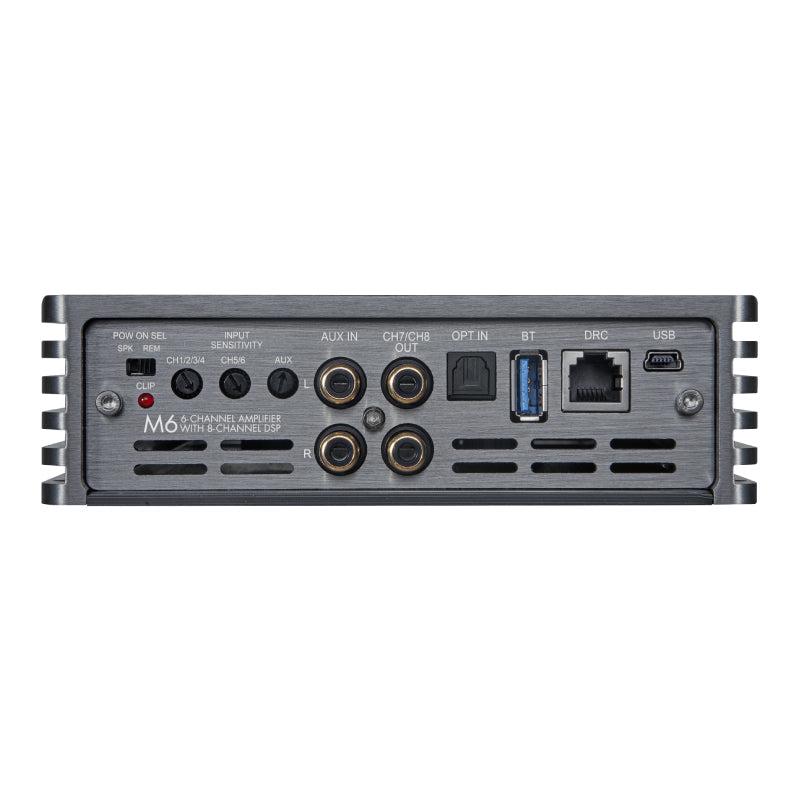

• Separately adjustable input sensitivity (channel 1-4, channel 5-6), clipping LED

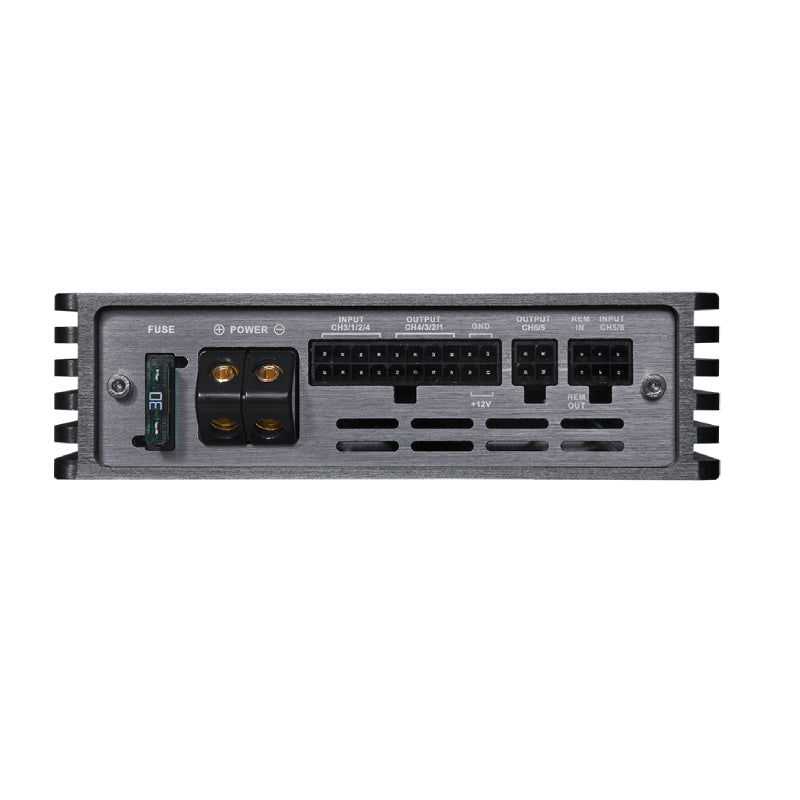

• Including 2.50 m MX-Connect™ wiring harness to ISO

• Plug+Play with vehicle-specific cable sets

• External Bluetooth ® USB dongle BTS , BTS-HD & BTA-HD for audio streaming & app control (optional)

• Digital remote control DRC1 with OLED display for controlling various DSP functions (optional)

•  Quick Connect Terminal for connecting MUSWAY subwoofer systems
