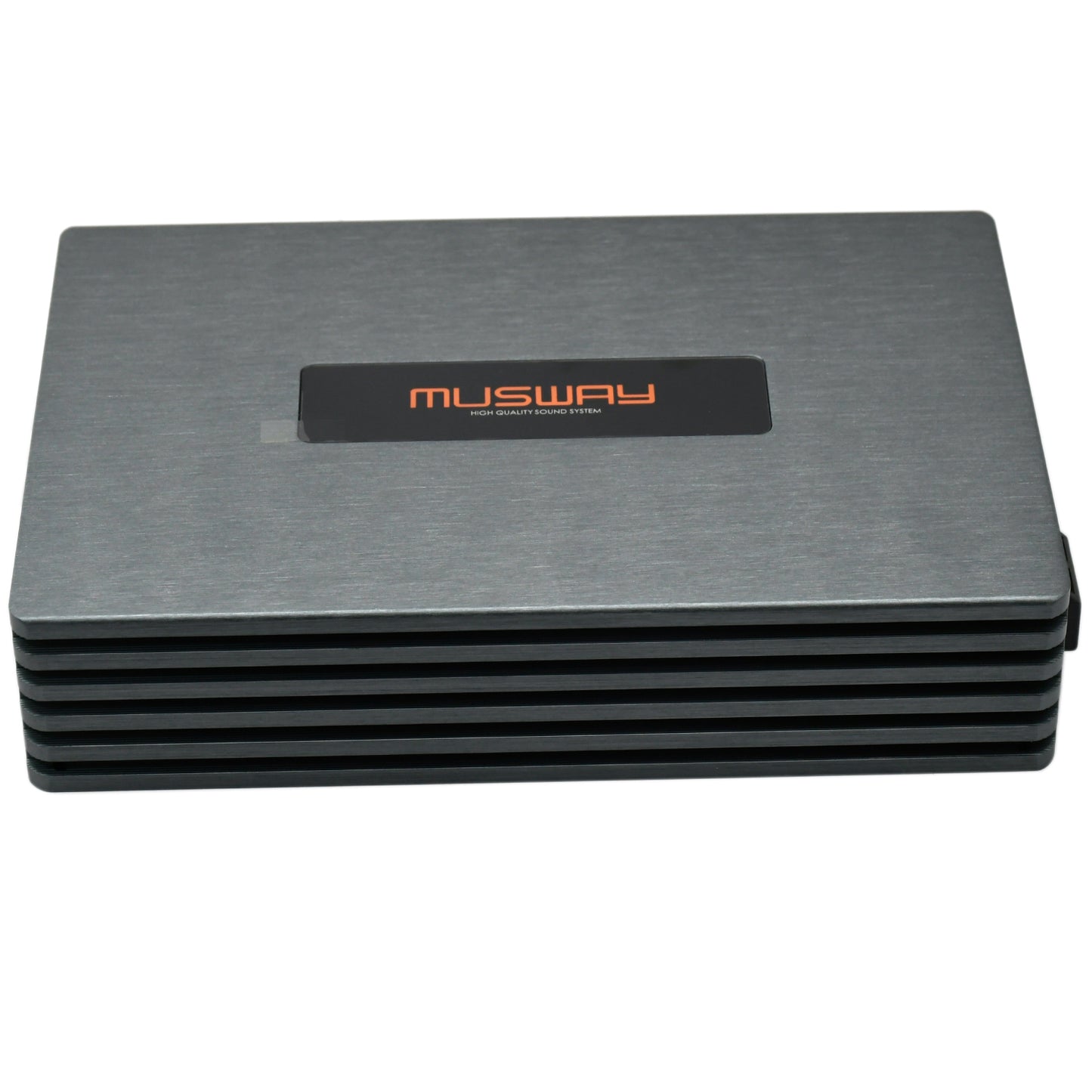

MUSWAY 6 Channel Amplifier With 10 Channel DSP-(M6PRO)

The M6PRO 6-channel DSP amplifier is aimed at true sound enthusiasts who don't want to install simple plug-and-play upgrades for factory systems, but prefer customized car audio systems with higher performance. Experienced professionals consciously accept the additional wiring effort. It's remarkable that the M6 PRO version, despite a power increase of over 400 watts compared to the M6 Plug+Play version, is barely larger. With compact dimensions of 16 x 25 cm, the more powerful Pro version remains almost identical to the regular M6. As good as the regular M6 already is, the Pro version takes it up a notch. With an impressive 6 x 142 watts at 4 ohms and 6 x 249 watts at 2 ohms, it is the most powerful 6-channel DSP amplifier ever measured in the Car&Hifi test lab.

The PRO version also offers an improved overall feature set: a powerful 10-channel DSP with four processed RCA outputs for driving additional amplifiers has been implemented. The DSP chip used is the proven Analog Devices™ ADAU1452, combined with high-end signal converters from Burr-Brown™. Sound adjustments can be made instantly via a smartphone app or traditional PC software.

Characteristics:

• Intelligent high-level input with EPS ® (Error Protection System)

• Start-stop ready, automatic switch-on function

• Burr-Brown converter (PCM3168A) and Analog Devices DSP (ADAU1452)

• Dual 64bit, 295 MHz DSP technology, controllable via DSP software and smartphone app

• Soft clipping (power attenuation) in 2 ohm operation

• Signal-to-noise ratio 100 dB, frequency response 10 Hz – 22.5 kHz (-3 dB)

• THD 0.01% (1 kHz, 4 ohms, 10 W)

• External Bluetooth ® USB dongle BTS , BTS-HD & BTA2 for audio streaming & app control (optional)

• Digital remote control DRC1 with OLED display for controlling various DSP functions (optional)

•  Quick Connect Terminal for connecting MUSWAY subwoofer systems
