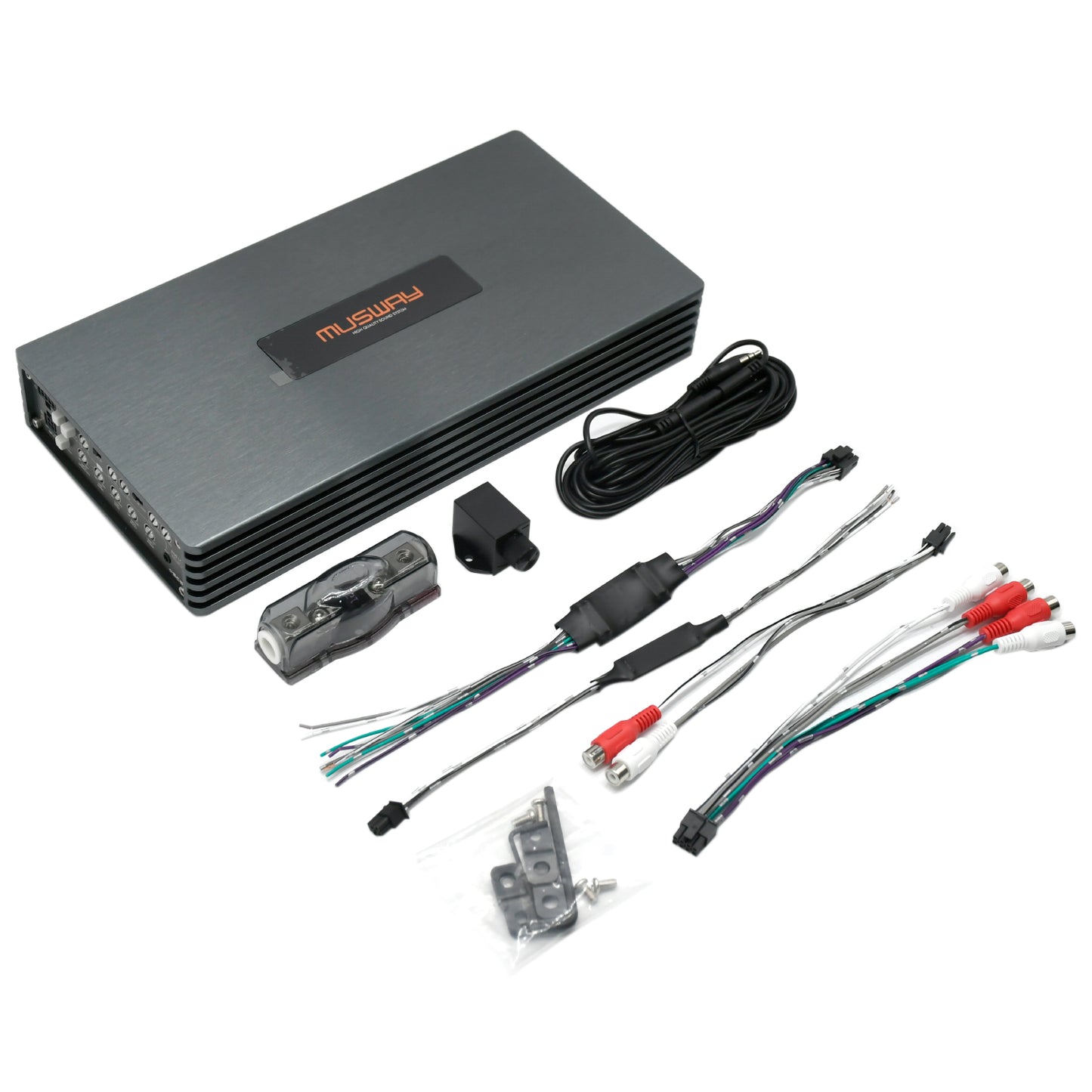

What's Inside?

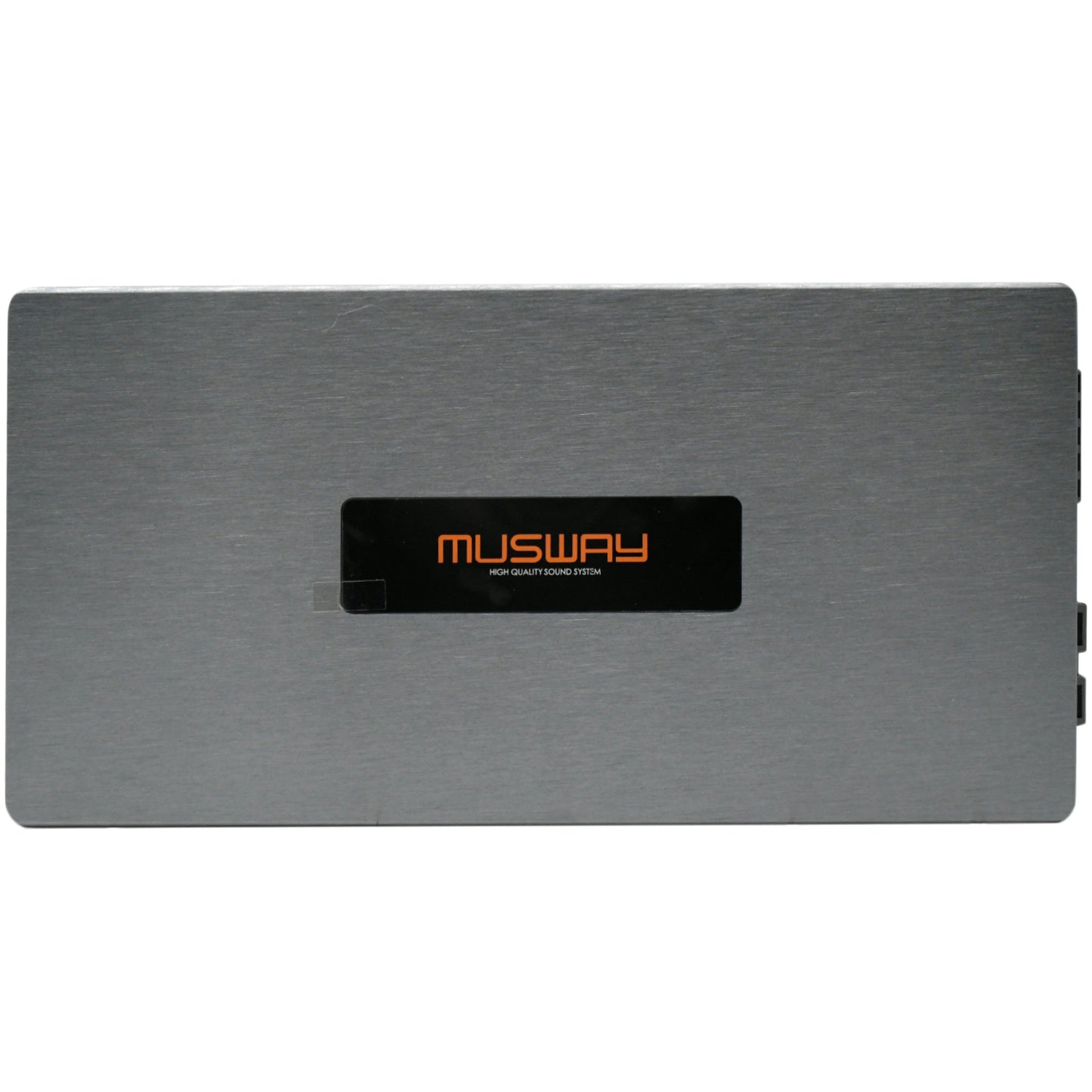

- 5-Channel Class-D Full Range Car Amplifier

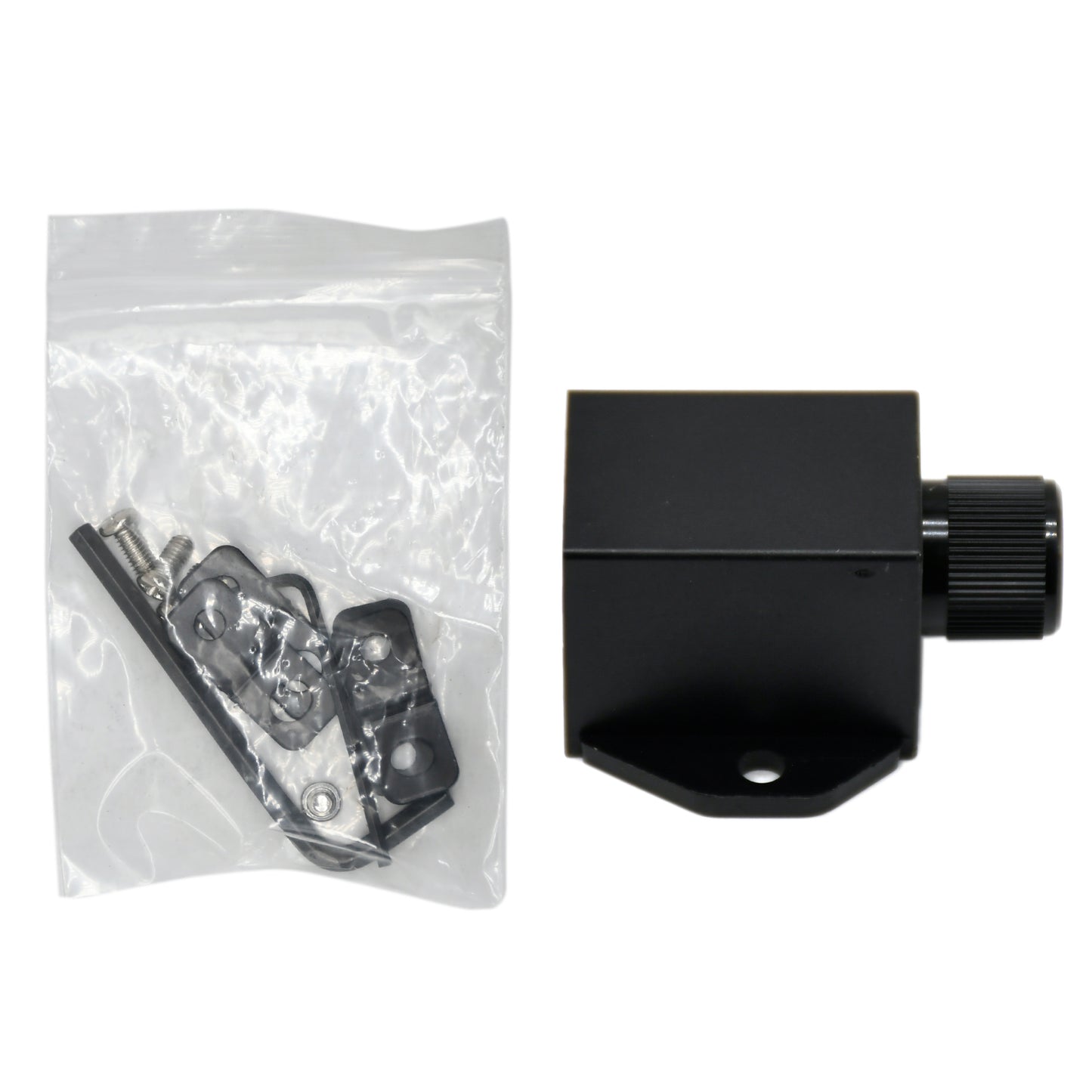

- Remote Level Control
- Owner’s Manual
Seamless Performance and Advanced Design for Unmatched Reliability
Experience seamless performance with start-stop vehicle systems, reliable operation with advanced EPS protection, and cutting-edge 4-fold laminated circuit boards that ensure a compact design while effectively suppressing EMI interference, meeting the highest European standards for Class D amplifiers.
Versatile Connectivity and Convenient Controls in a Durable Design
Enjoy versatile connectivity with high- and low-level input options, enhanced by an RCA output for added flexibility, all housed in a durable brushed aluminum design for superior heat management. Plus, benefit from the convenience of automatic turn-on via DC Offset or Signal Sensing and an included remote level controller for effortless sound adjustments.
Product Overview
Start-Stop ready
EPS (Intelligent High Level Input Error Protection System)
Utilizes 4-fold laminated circuit boards that allows for small size and effectively suppresses EMI (RF) interference which is a must for full range Class D Amplifiers. Passes the difficult EMI European standards.

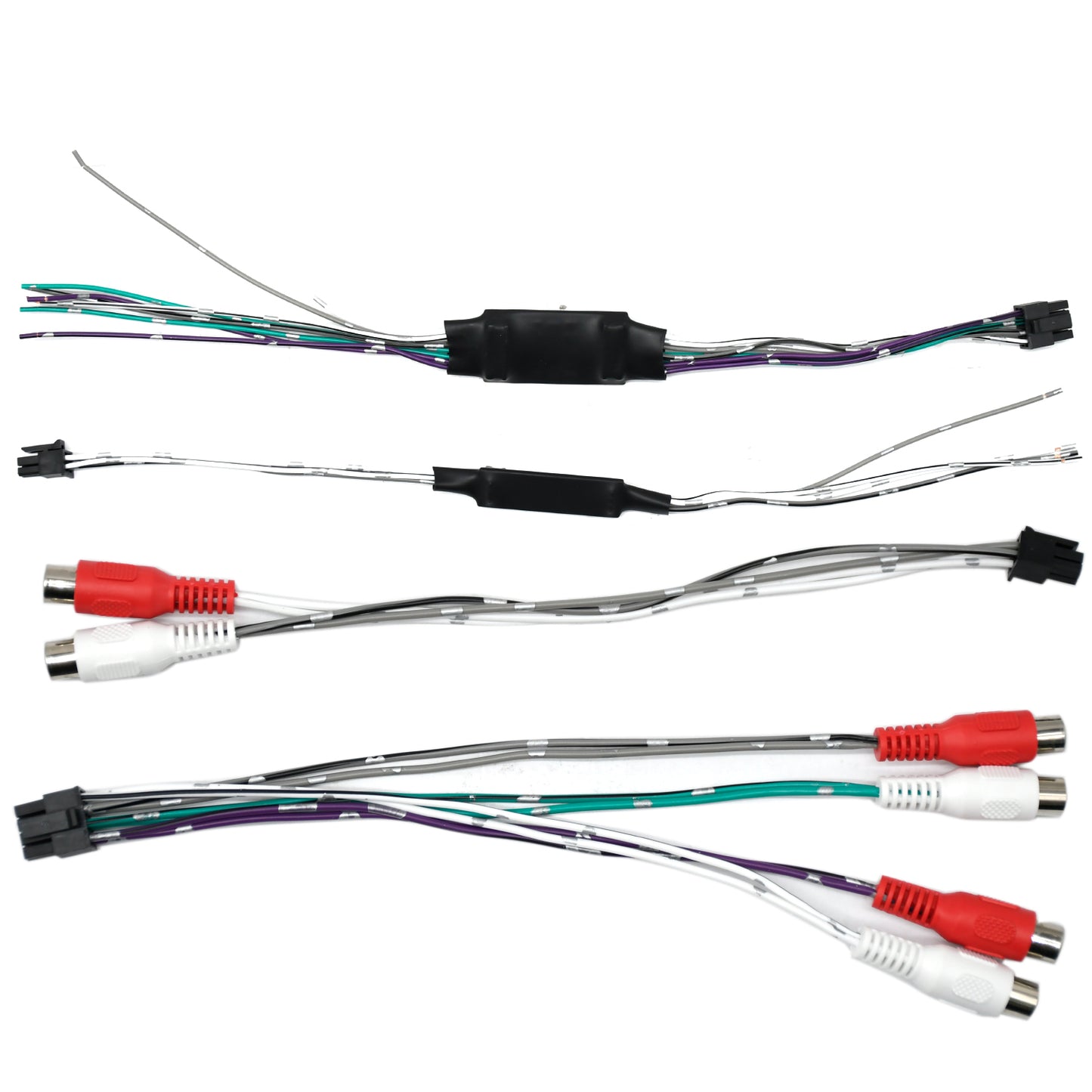

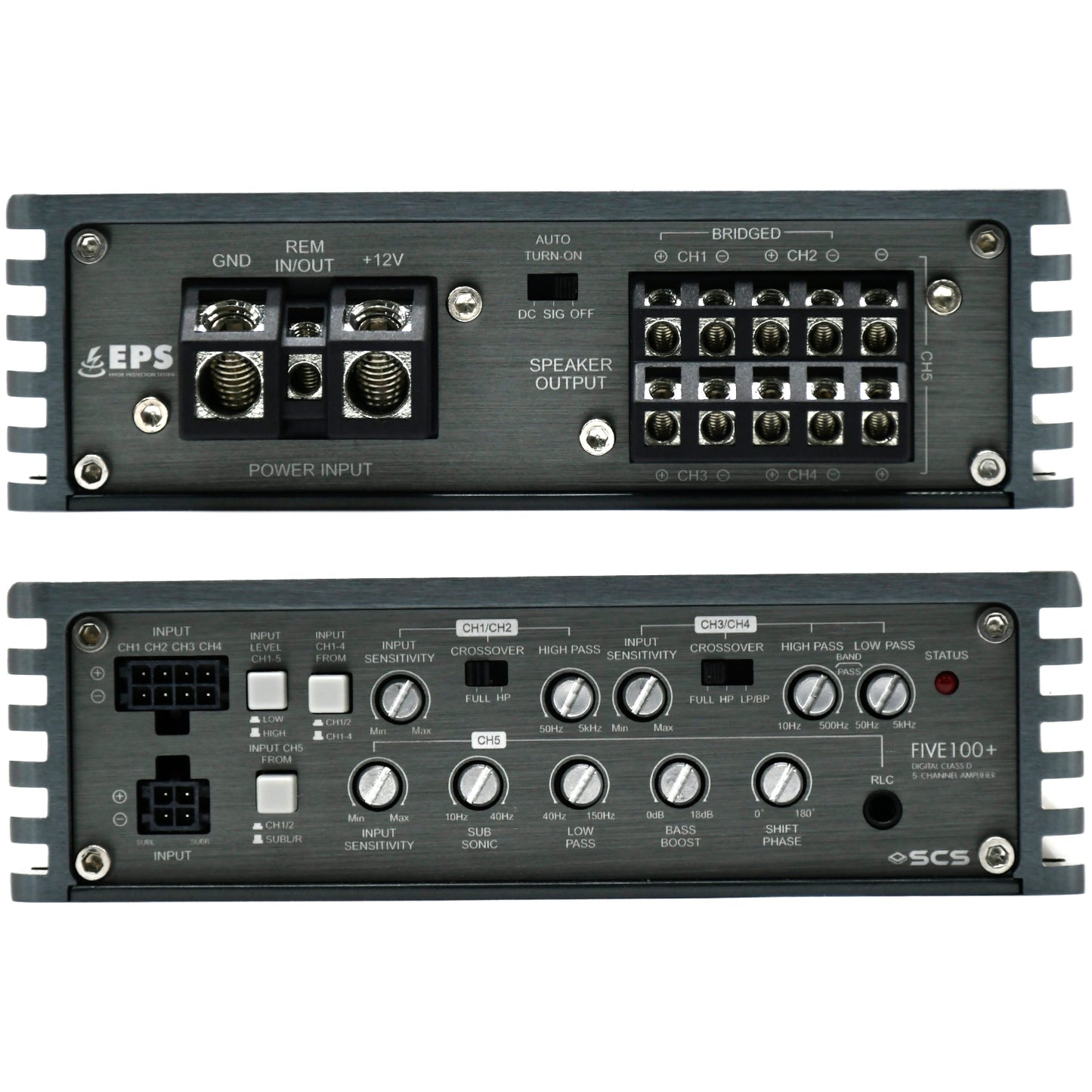

High- and Low-Level Inputs
RCA (Low Level) output.

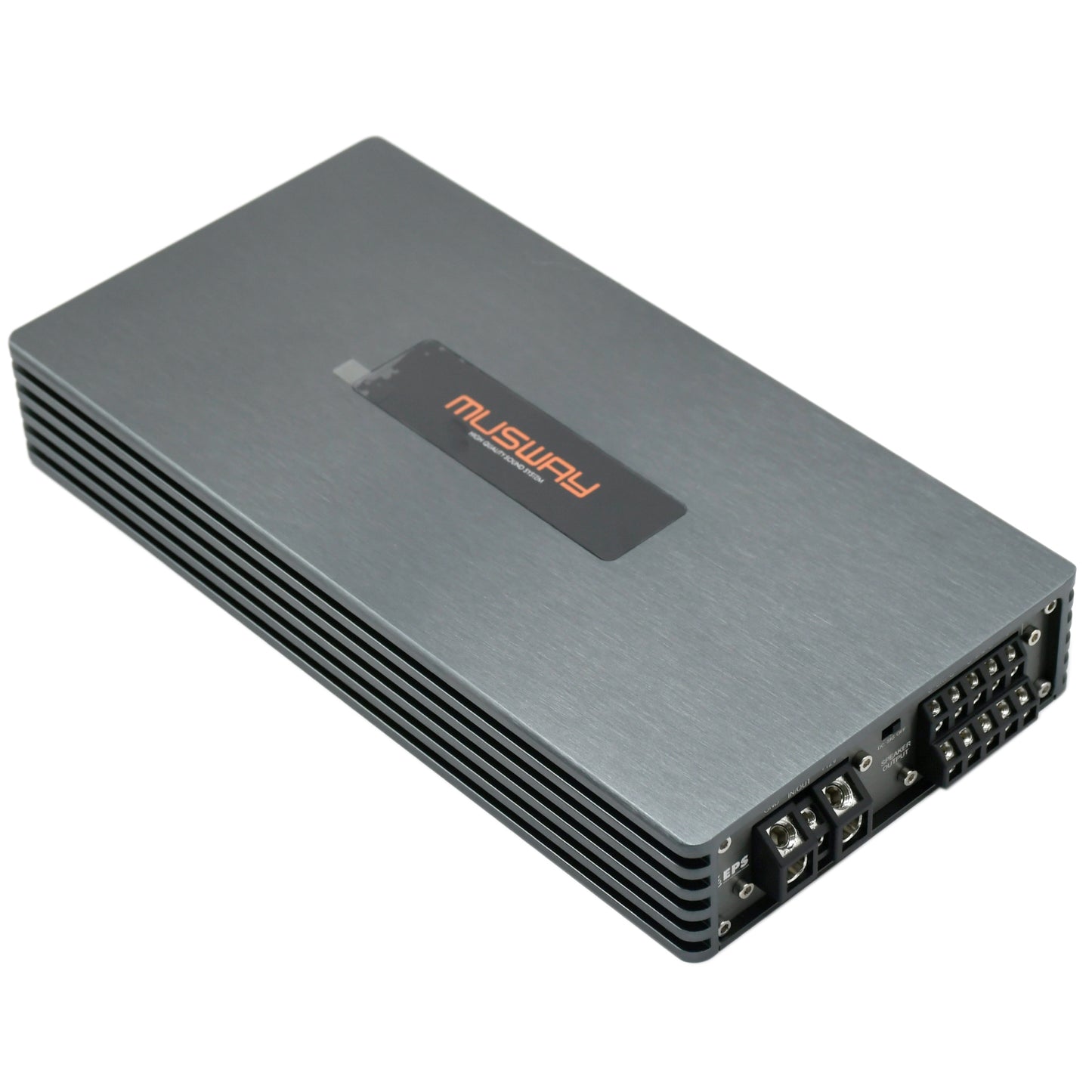

Brushed aluminum heat sink and end panels
Auto Turn On via DC Offset or Signal Sensing

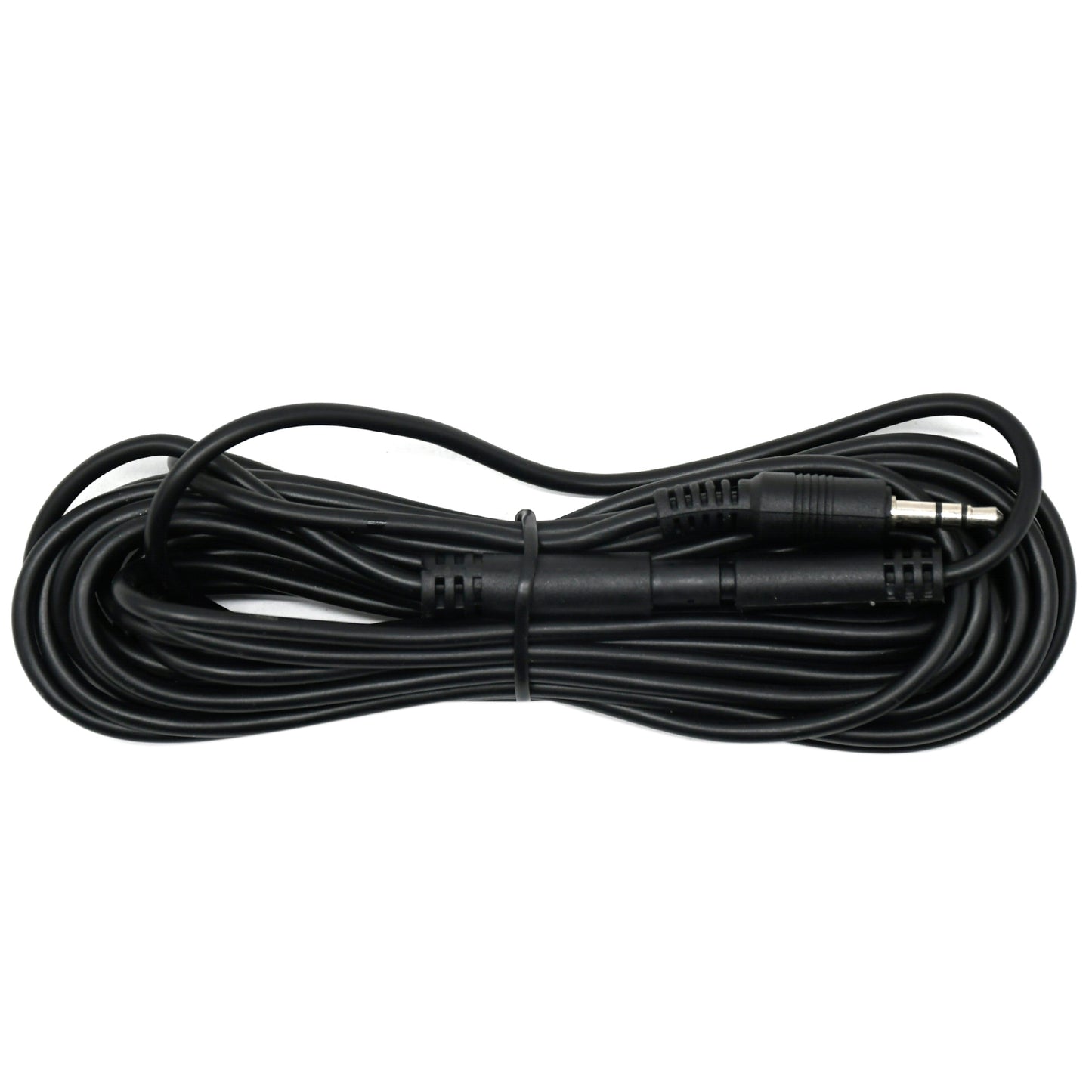

Remote level controller is included in the box
Product Power
OUTPUT POWER RMS @ 13.8v:
(CH1 - CH4) 4 x 115w @ 4 Ohms
(CH1 - CH4) 4 x 200w @ 2 Ohms
(CH1 - CH4) 2 x 400w @ 4 Ohms bridged
(CH5) 1 x 225w @ 4 Ohms
(CH5) 1 x 400w @ 2 Ohms
(CH5) 1 x 600w @ 1 Ohms
OUTPUT POWER RMS @ 14.4v:
(CH1 - CH4) 4 x 125w @ 4 Ohms
(CH1 - CH4) 4 x 225w @ 2 Ohms
(CH1 - CH4) 2 x 450w @ 4 Ohms bridged
(CH5) 1 x 250w @ 4 Ohms
(CH5) 1 x 425w @ 2 Ohms
(CH5) 1 x 650w @ 1 Ohms

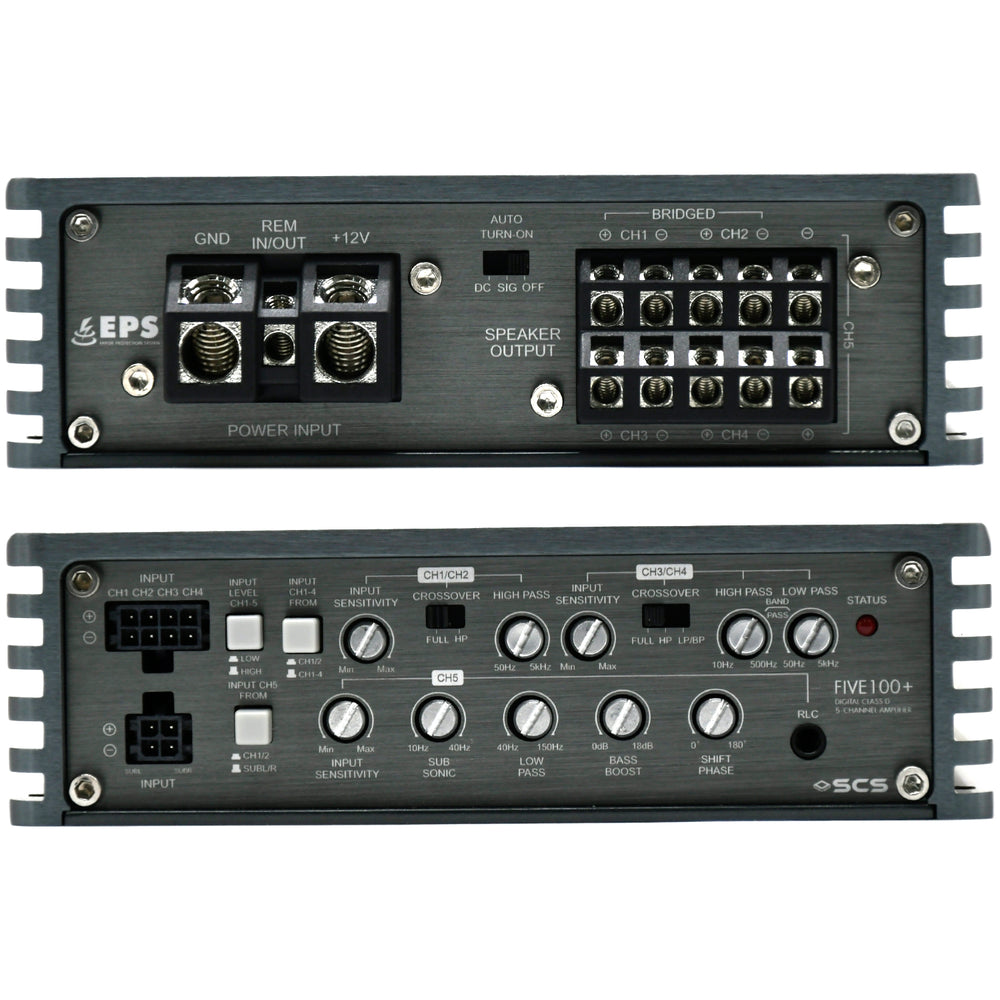

Product Specifications:
Frequency Range -3dB: 4-39000 Hz
Damping Factor: 300
S/N ratio: > 107 dB
THD+N: < 0.02%
Input Sensitivity
Low-Level: 0,3 - 7,8V
High-Level: 0,7 - 15,6V
Channel 1/2
Crossover Modes: Full - HP-Copy
High Pass Filter: 50 - 5000 Hz
Channel 3/4
Crossover Modes: Full - HP - LP/BP
High Pass Filter: 10 - 500 Hz
Low Pass Filter: 50 - 5000 Hz
Channel 5
Subsonic Filter: 10 - 40 Hz
Low Pass Filter: 40 - 150 Hz
Bass Boost: 0 - 18 dB @ 45Hz
Phase Shift: 0 - 180
Start-stop capability: 8.5V
High Level Input with EPS : Yes
Auto Turn On: Via DC or Signal

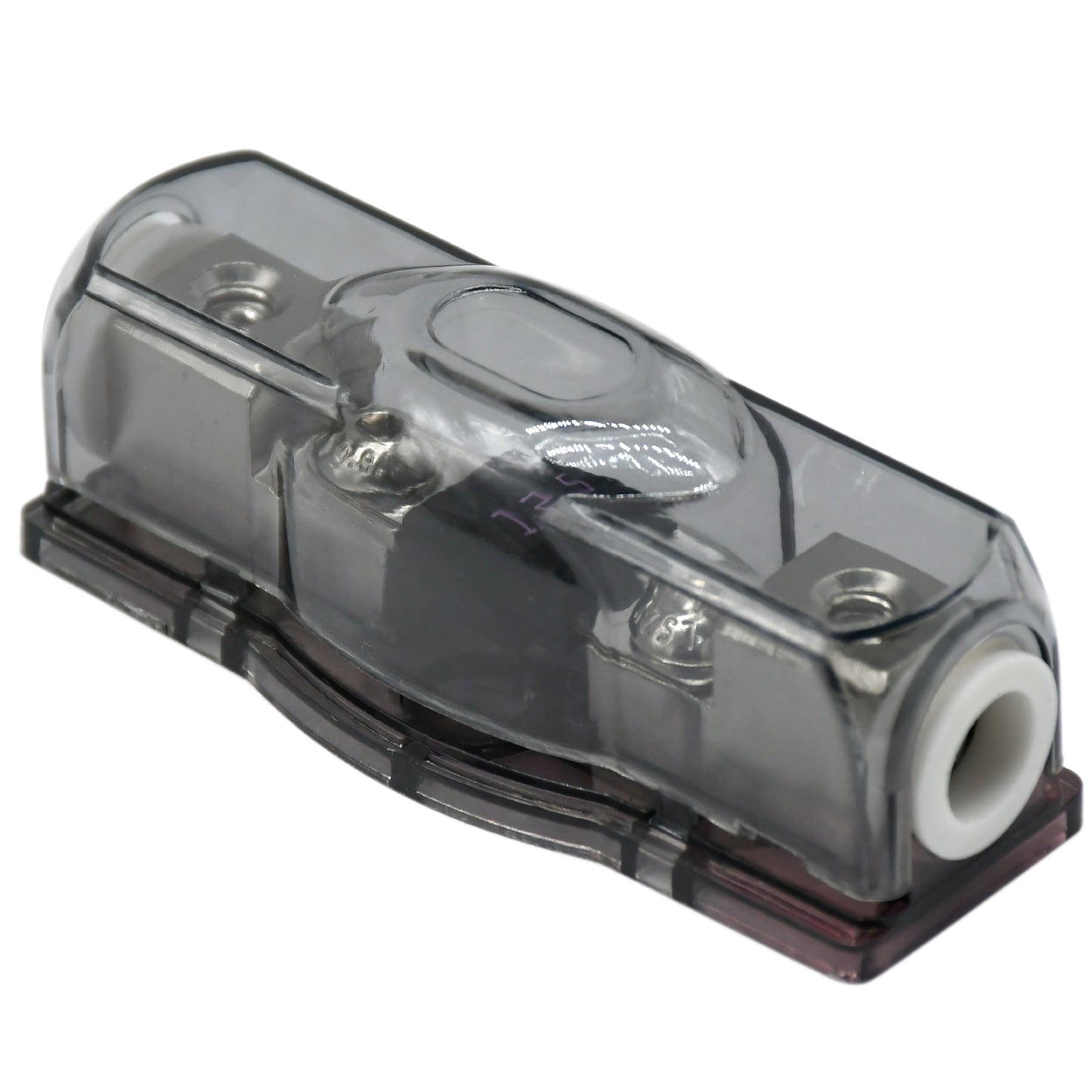

Fuse Rating: 1 x 125A (external)
Dimensions: 295 x 45 x 150 mm
