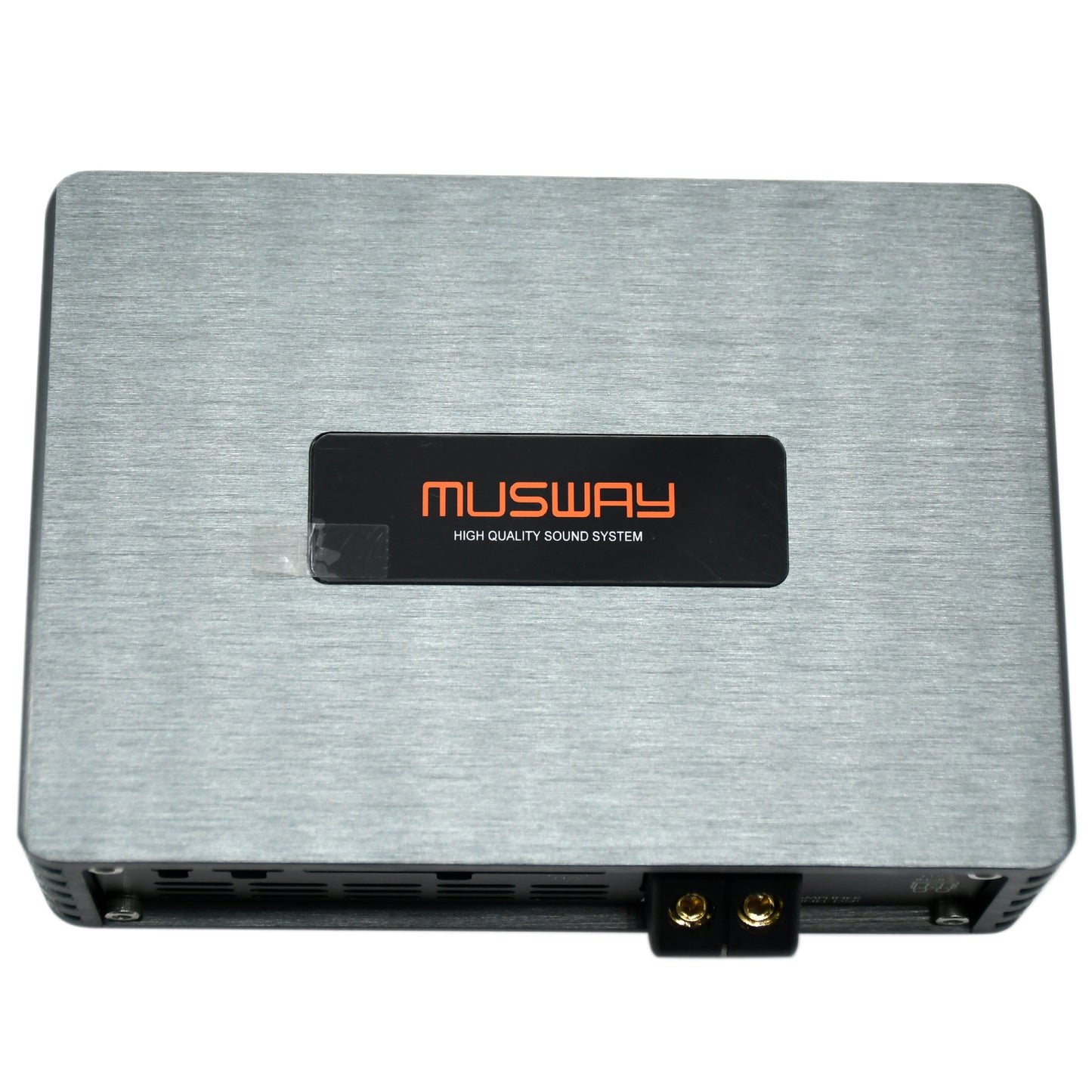

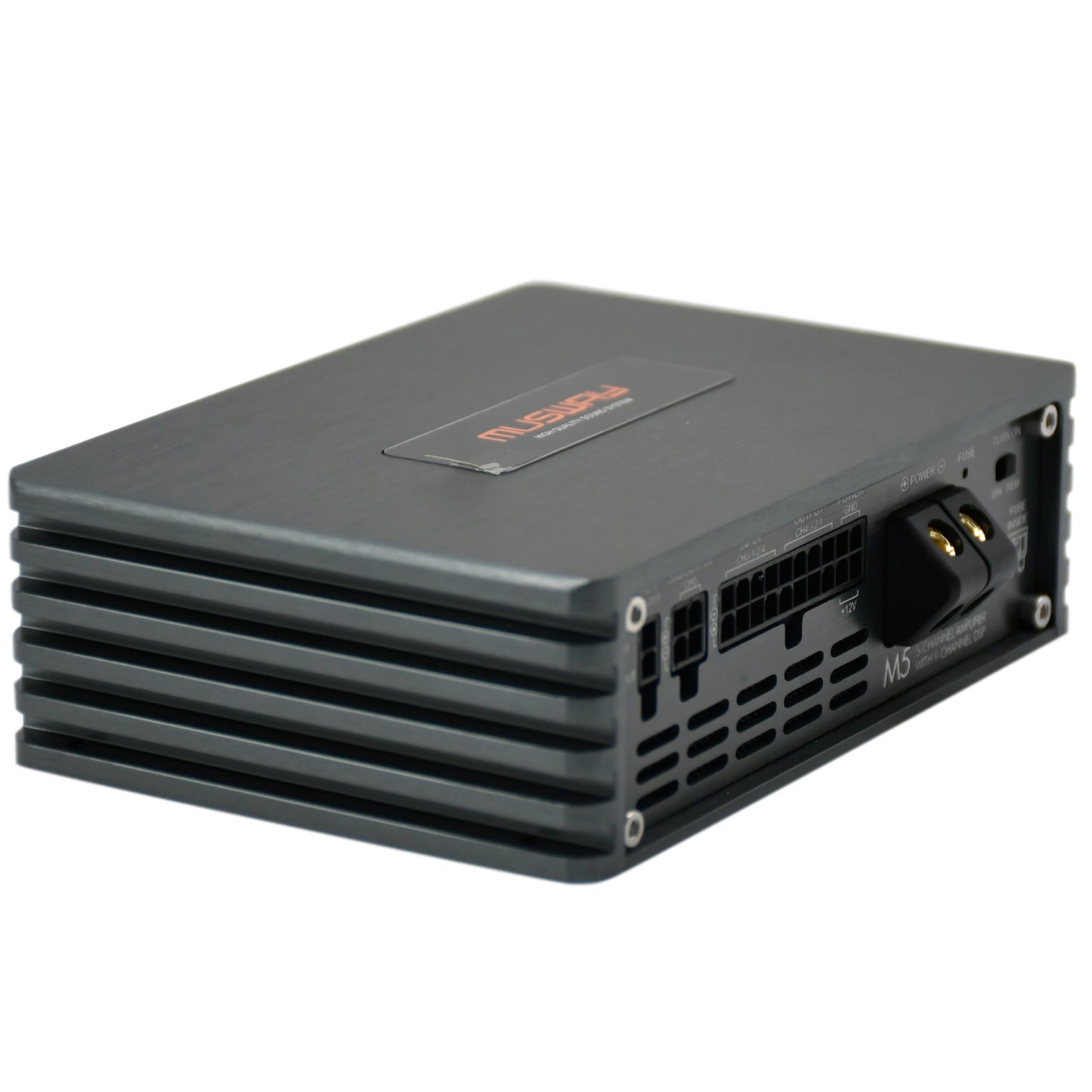

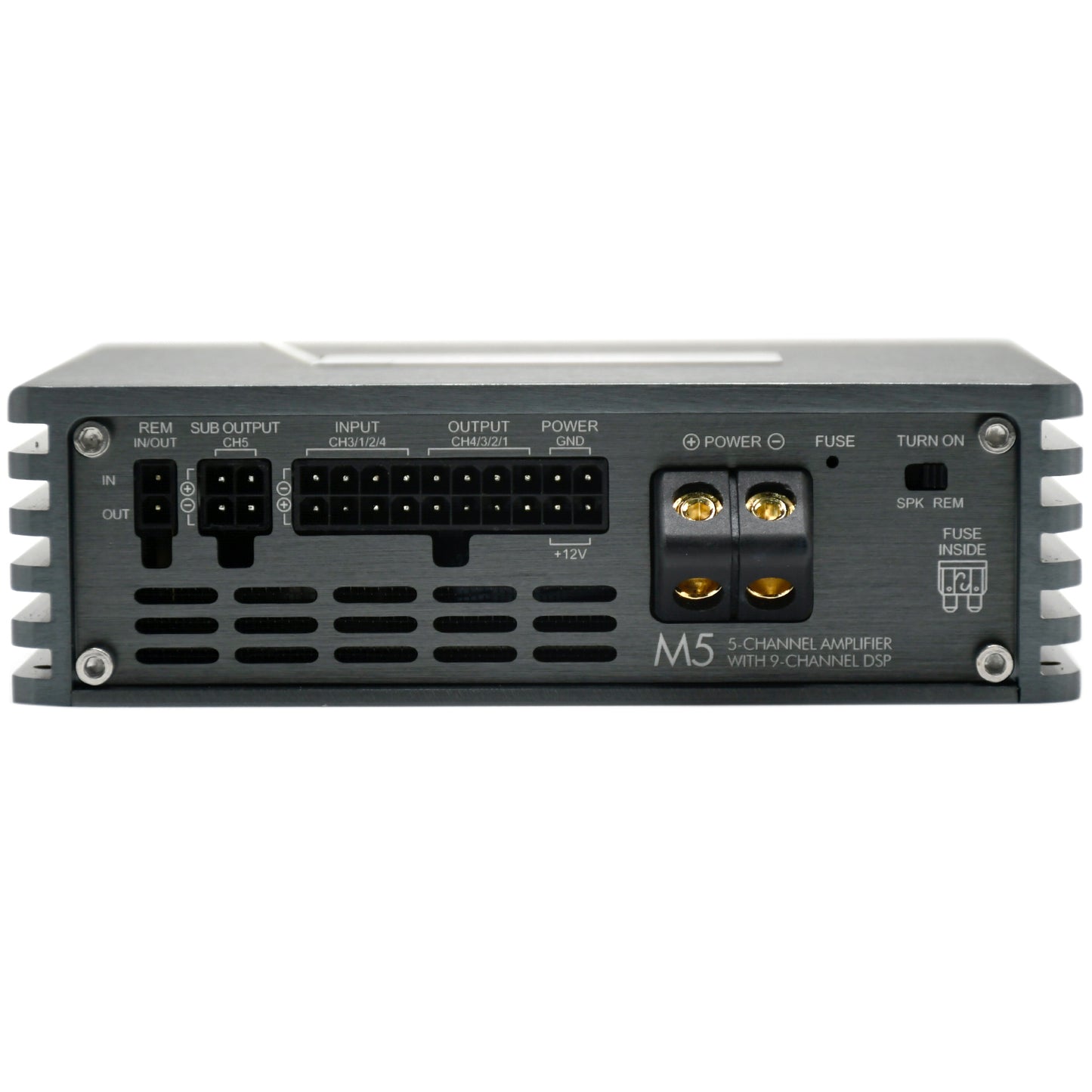

MUSWAY 5 Channel Amplifier With 9 Channel DSP - (M5)

Barely larger than a mobile phone, the M5 fits into the smallest of spaces. While there are many small Class-D amplifiers, none of this size offer 500 watts RMS of power and integrated 9-channel DSP. This multi-talented device can shine as a high-quality component in a sophisticated high-end system or effortlessly fill an entire vehicle with sound. It owes its impressive versatility to its 9-channel DSP, which seamlessly integrates additional components with four additional, externally usable channels. No matter what sonic visions you want to realize, the M5 is a future-proof investment that adapts perfectly to future expansion without the need for replacement. Four powerful 50-watt RMS channels are available for passive front and rear systems – and even the subwoofer has plenty of power left over, with 300 watts at 2 ohms in active mode.

As is typical for Musway, only the highest-quality components are used in the M5: The Analog Devices ADAU1452 DSP chip is a dream, flanked by Burr-Brown converters. Sound adjustments are lightning fast via app or PC software. Whether frequency or time correction, Q factor, time adjustment, phase shift, or complex crossover configurations, all the settings are available to professionally meet audiophile demands.

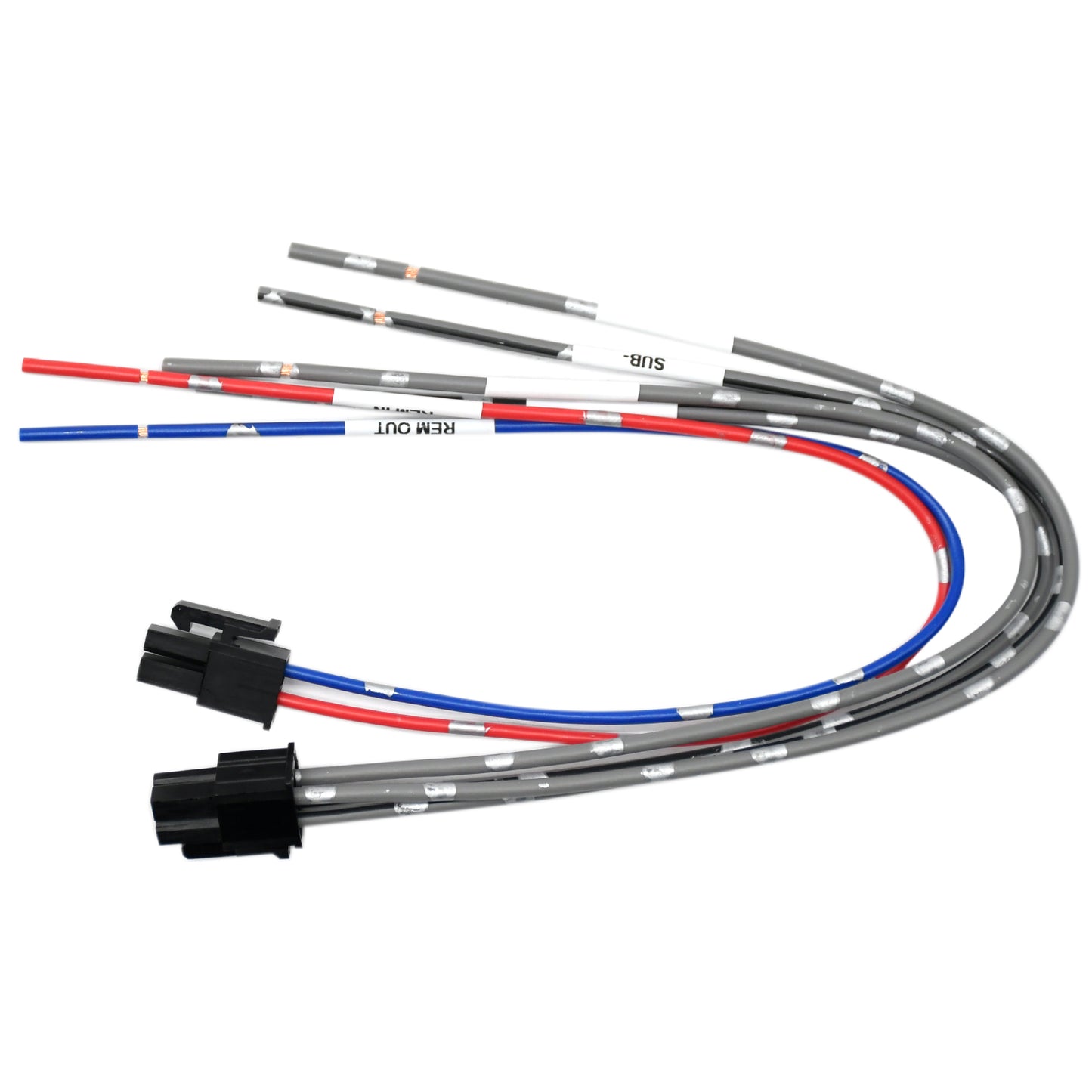

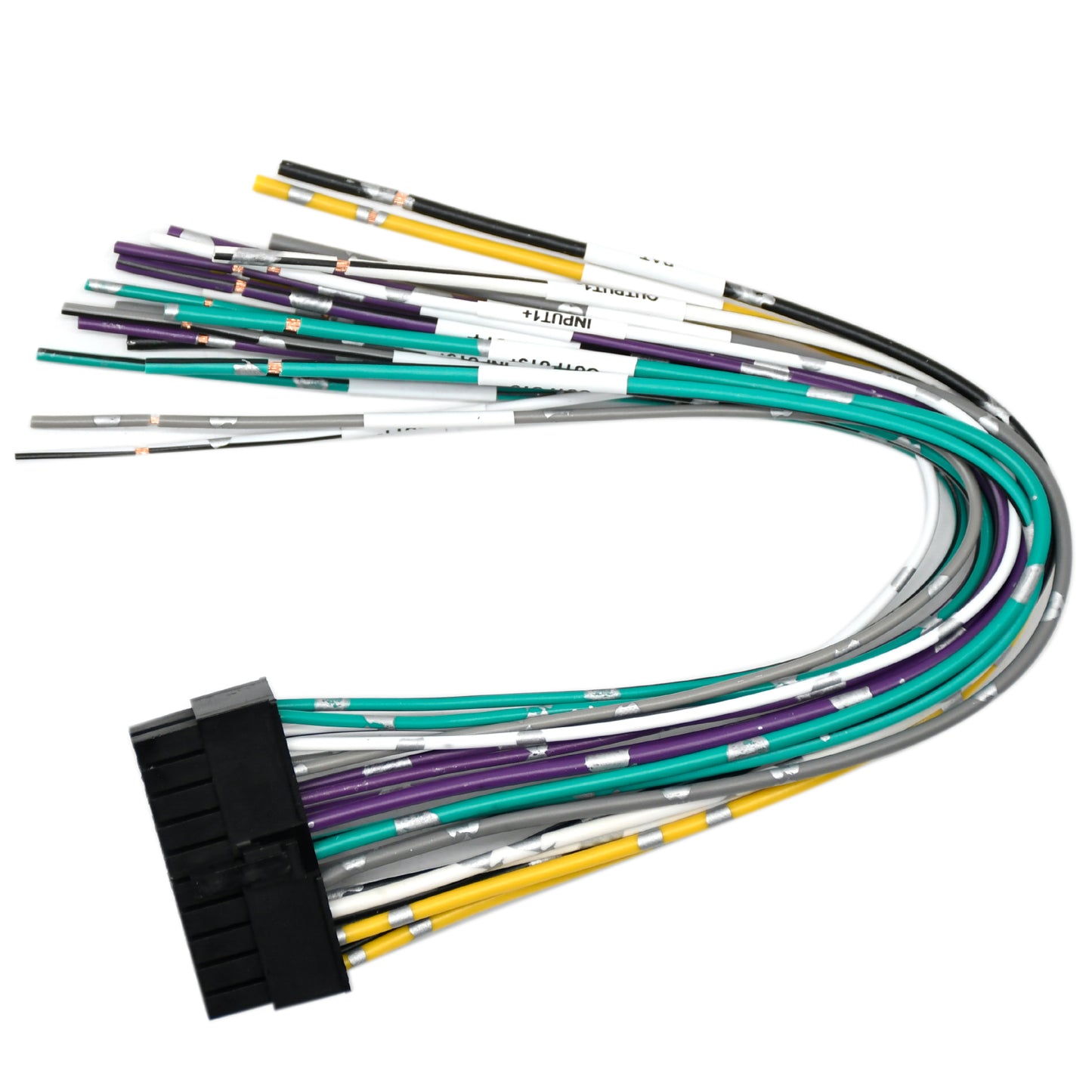

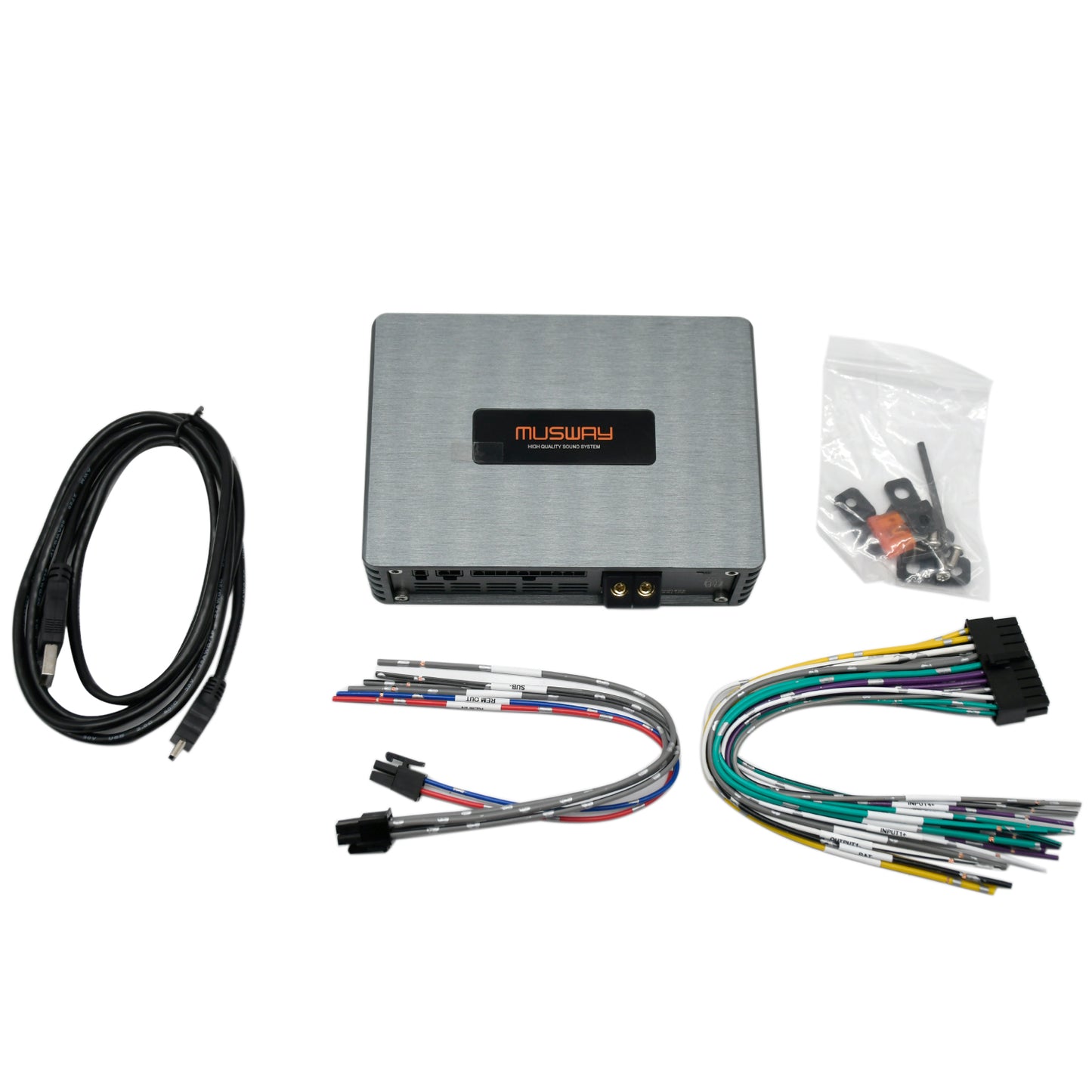

The EVO version of the M5 features a 20 cm wiring harness with open ends, while the regular M5 comes with a 2.5 meter long ISO cable for easy plug+play connection to the car radio.

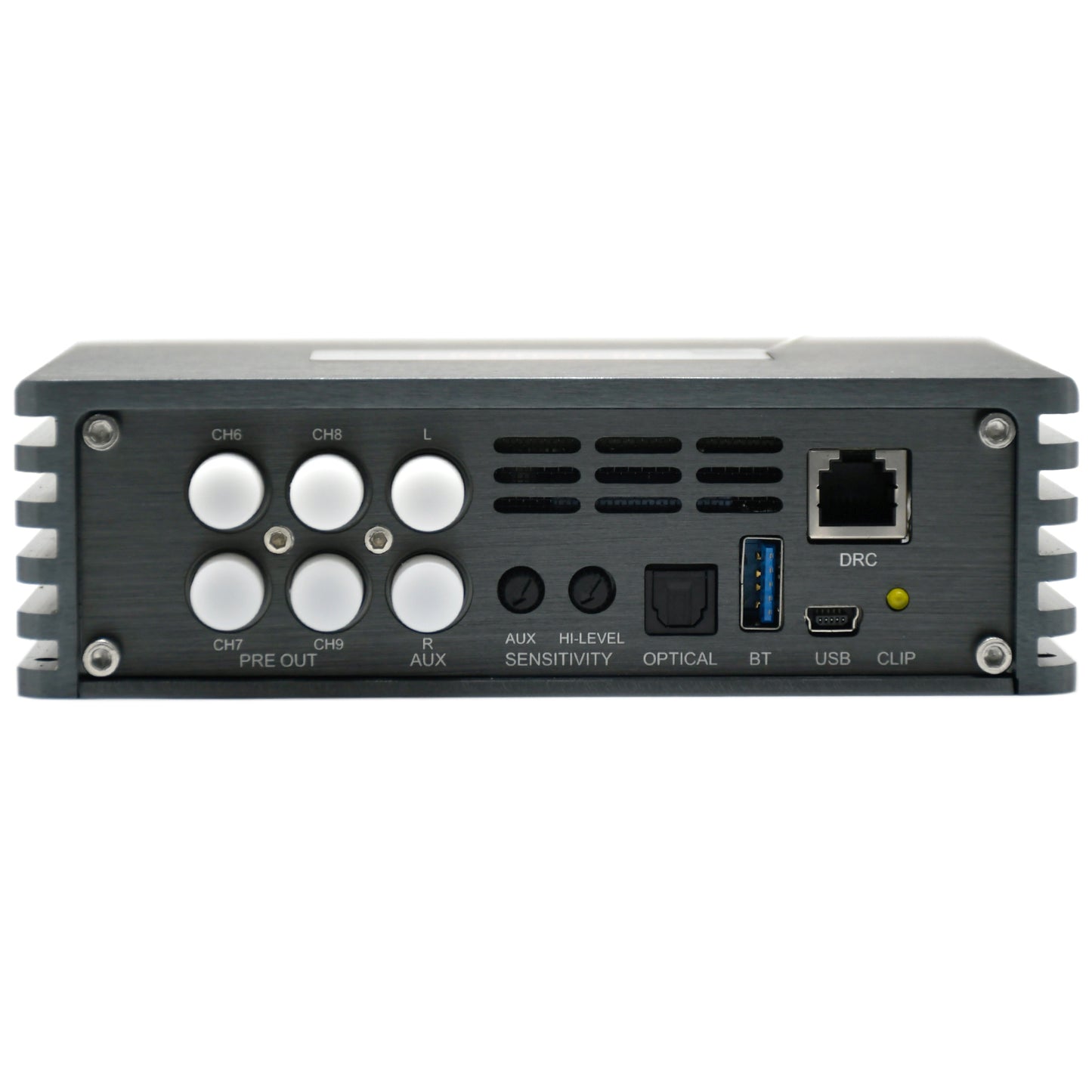

Characteristics:

• Intelligent high-level input with EPS ® (Error Protection System)

• Start-stop ready, automatic switch-on function

• Burr-Brown converter (PCM3168A) and Analog Devices DSP (ADAU1452)

• Dual 64bit, 295 MHz DSP technology, controllable via DSP software and smartphone app

• Signal-to-noise ratio 95 dB, frequency response 10 Hz – 20 kHz (-3 dB)

• Total harmonic distortion 0.015% (1 kHz, 4 ohms, 90% power)

• Clipping LED

• Including 2.50 m MX-Connect™ wiring harness to ISO

• Plug+Play with vehicle-specific cable sets

• External Bluetooth ® USB dongle BTS , BTS-HD & BTA2 for audio streaming & app control (optional)

• Digital remote control DRC1 with OLED display for controlling various DSP functions (optional)

•  Quick Connect Terminal for connecting MUSWAY subwoofer systems
