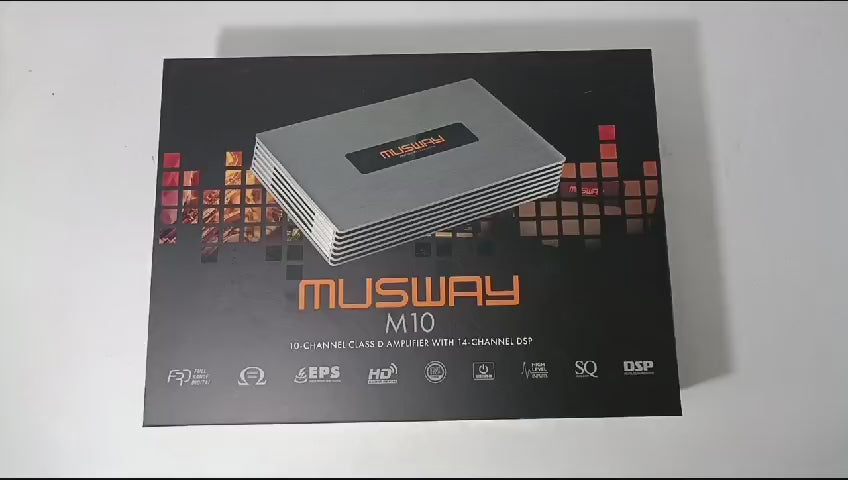

MUSWAY 12 Channel DSP with 10 Channel Amplifier - M10

The new Musway M10 amplifier impresses with its 10 Class-D channels and an integrated 14-channel DSP with four outputs. It is especially designed for hi-fi enthusiasts who want to create more complex car hi-fi speaker systems without complex wiring. With its two powerful subwoofer channels, the M10 is particularly well-suited for current BMW and Mercedes models that require the power of powerful under-seat or footwell subwoofers.

The amplifier therefore offers an impressive selection of low-level and high-level inputs. In addition to six RCA inputs and one AUX input, there are also 10 high-level inputs available that can receive signals directly from the speakers. Channels 1-8 are designed for a load of 24 V/RMS, while channels 9 and 10 can even be driven with 32 V/RMS – ideal for vehicles with complex factory systems. Naturally, the high-level signals are protected with EPS® to prevent errors in the diagnostic system.

Characteristics:

• Intelligent high-level input with EPS ® (Error Protection System)

• Start-stop ready, automatic switch-on function

• Burr-Brown converter (PCM3168A) and Analog Devices DSP (ADAU1466)

• Dual 64bit, 295 MHz DSP technology, controllable via DSP software and smartphone app

• Soft clipping (power attenuation) in 2 ohm operation

• Signal-to-noise ratio 95 dB, frequency response 15 Hz – 22 kHz (-3 dB)

• Total harmonic distortion 0.05% (1 kHz, 4 ohms, 90% power)

• Separately adjustable input sensitivity (channel 1-8, channel 9-10, AUX), clipping LED

• External Bluetooth ® USB dongle BTS , BTS-HD & BTA2 for audio streaming & app control (optional)

• Digital remote control DRC1 with OLED display for controlling various DSP functions (optional)
