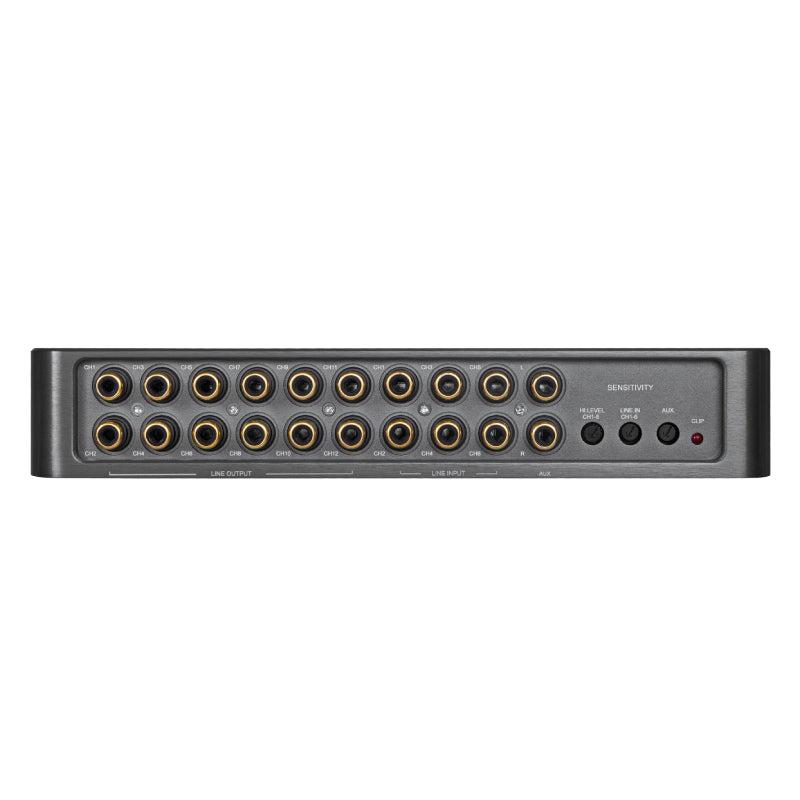

MUSWAY 12 Channel DSP - TUNE12

With the new 12-channel stand-alone DSP TUNE12, the luxury manufacturer MUSWAY proves once again how good high-end audio can look. The TUNE12 impresses with outstanding features and inner values that are fundamental for very complex devices. Three Burr-Brown PCM3168A converters were installed to optimize channel separation. Due to multiple use, mixed operation of different sources is also possible, for example. At the heart of the unit is the state-of-the-art DSP chip ADAU1452 from Analog Devices, which has been finely tuned by MUSWAY engineers and leaves nothing to be desired for audiophiles. In addition to the extremely high sound quality, which is expressed, among other things, by very low distortion values, the graceful DSP also impresses with its generous features: Not only does it have 12 fully processable outputs, but in addition to AUX, S/PDIF and optical digital inputs, it also has 6 low-level and 8 high-level inputs. The latter are equipped with the latest EPS ® and process up to 24 V/RMS.

Characteristics:

• Intelligent high-level input with EPS ® (Error Protection System)

• Start-stop ready, automatic switch-on function

• Three Burr-Brown converters (PCM3168A) and Analog Devices DSP (ADAU1452)

• Dual 64bit, 295 MHz DSP technology, controllable via DSP software and smartphone app

• Separately adjustable input sensitivity (CH1-8 high level, CH1-6 low level, AUX)

• High-quality full aluminum housing with glass plate

• External Bluetooth ® USB dongle BTS , BTS-HD & BTA2 for audio streaming & app control (optional)

• Digital remote control DRC1 with OLED display for controlling various DSP functions (optional)
