The new MX series amplifiers are ideal for creating visually stunning combinations with the MUSWAY DSP amplifiers M4+, M6, or D8. They are also perfect for forming a high-end team with the TUNE12, DSP68PRO, or DSP68 standalone processor. The MX models thus make it possible to create powerful 7-, 8-, or even 12-channel combinations. These elegantly designed amps convey their qualities immediately upon first touch: no rattling metal, heatsinks and end panels made of brushed aluminum, and a flush-mounted MUSWAY logo on the top.
The amplifiers have everything on board that a modern sound system needs: EPS ® , automatic switch-on, high and low level inputs and much more. The cleverly switchable crossovers in the multi-channel amplifiers offer every imaginable configuration - whether fully active, partially active or passive operation, everything is possible.
Technical data:
1 x 250 watts RMS @ 4 ohms
1 x 400 watts RMS @ 2 ohms
1 x 650 watts RMS @ 1 ohm
Subsonic filter 10 - 40 Hz
Low-pass filter 40 - 150 Hz
Bass Boost 0 - 18 dB
Phase control 0 - 180°
RCA inputs, RCA outputs
High-level inputs with EPS ®
Automatic switch-on function
Filter Bypass Function (Pure Amplification)
Quick Connect 2 + 2 Ohm speaker output
Bass level remote control
Dimensions: 150 x 45 x 200 mm
Characteristics:
• Start-Stop ready, Auto Turn-On
• EPS ® protection circuit (Error Protection System)
• IFT (Interference Free Technology, EMV tested)
• High and low level inputs
• PURE IN>OUT function
• Brushed aluminum heatsink and end panels

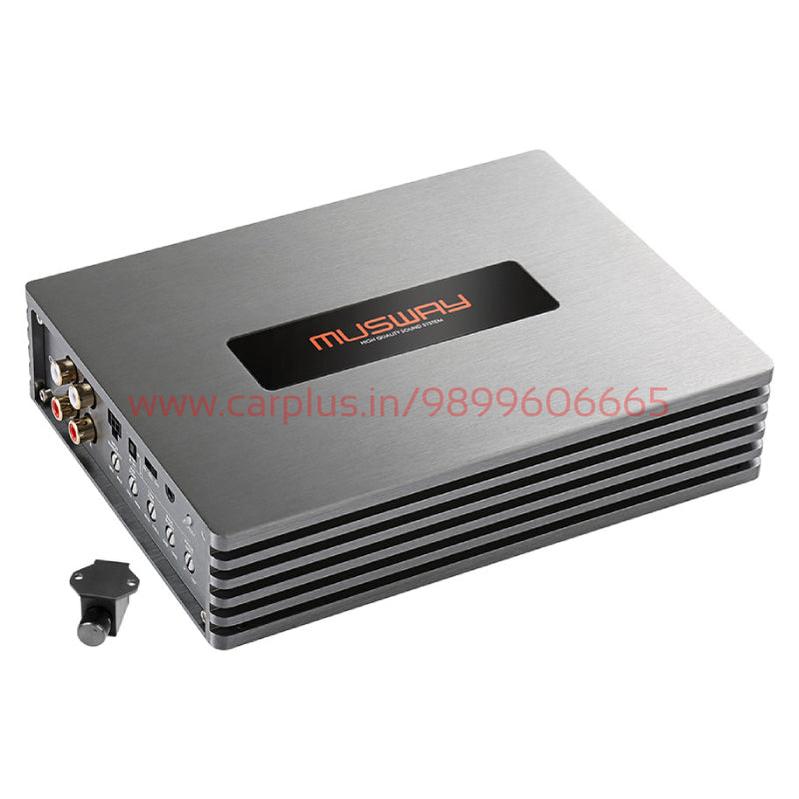

• Compact bass level remote control
• Quick Connect Terminal
