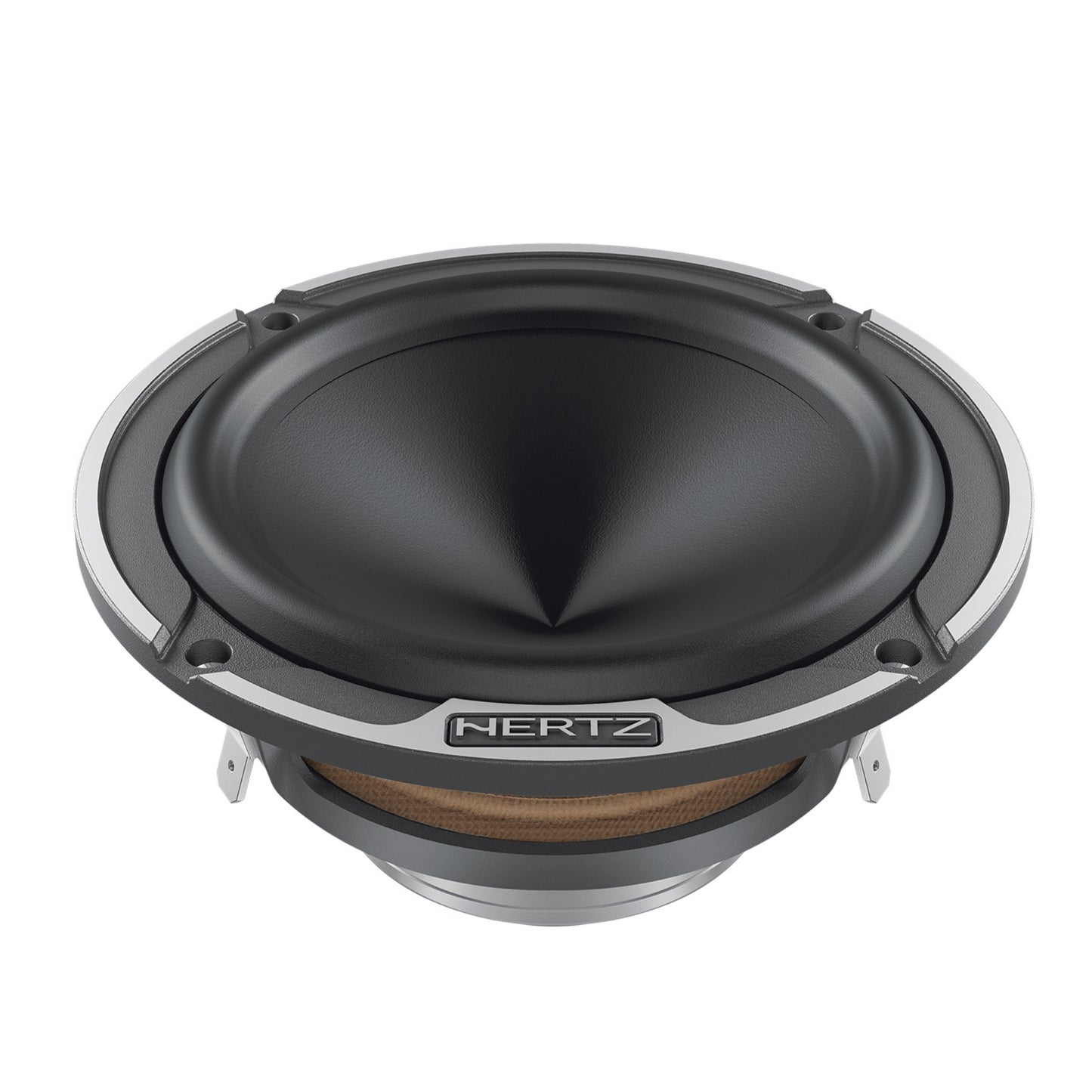

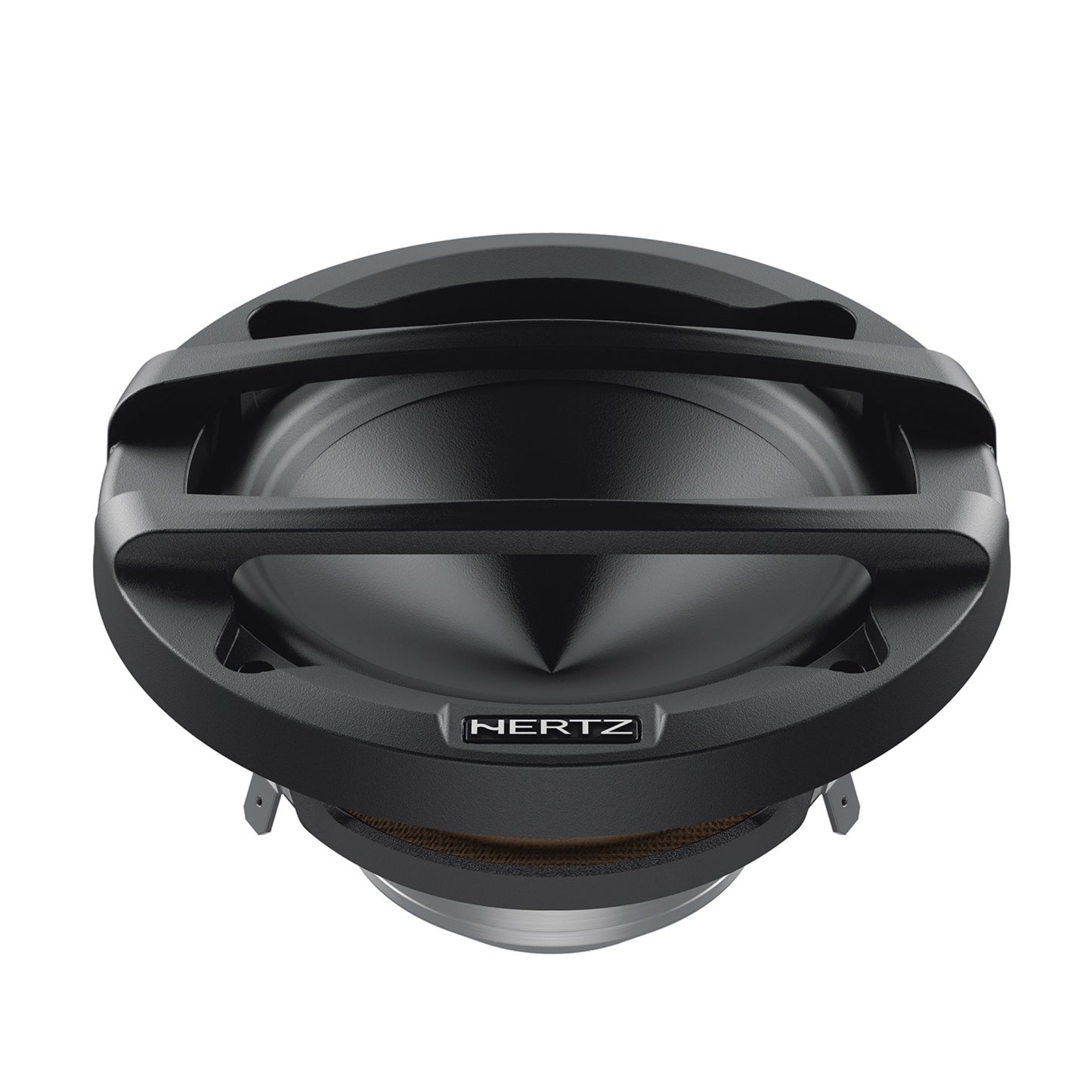

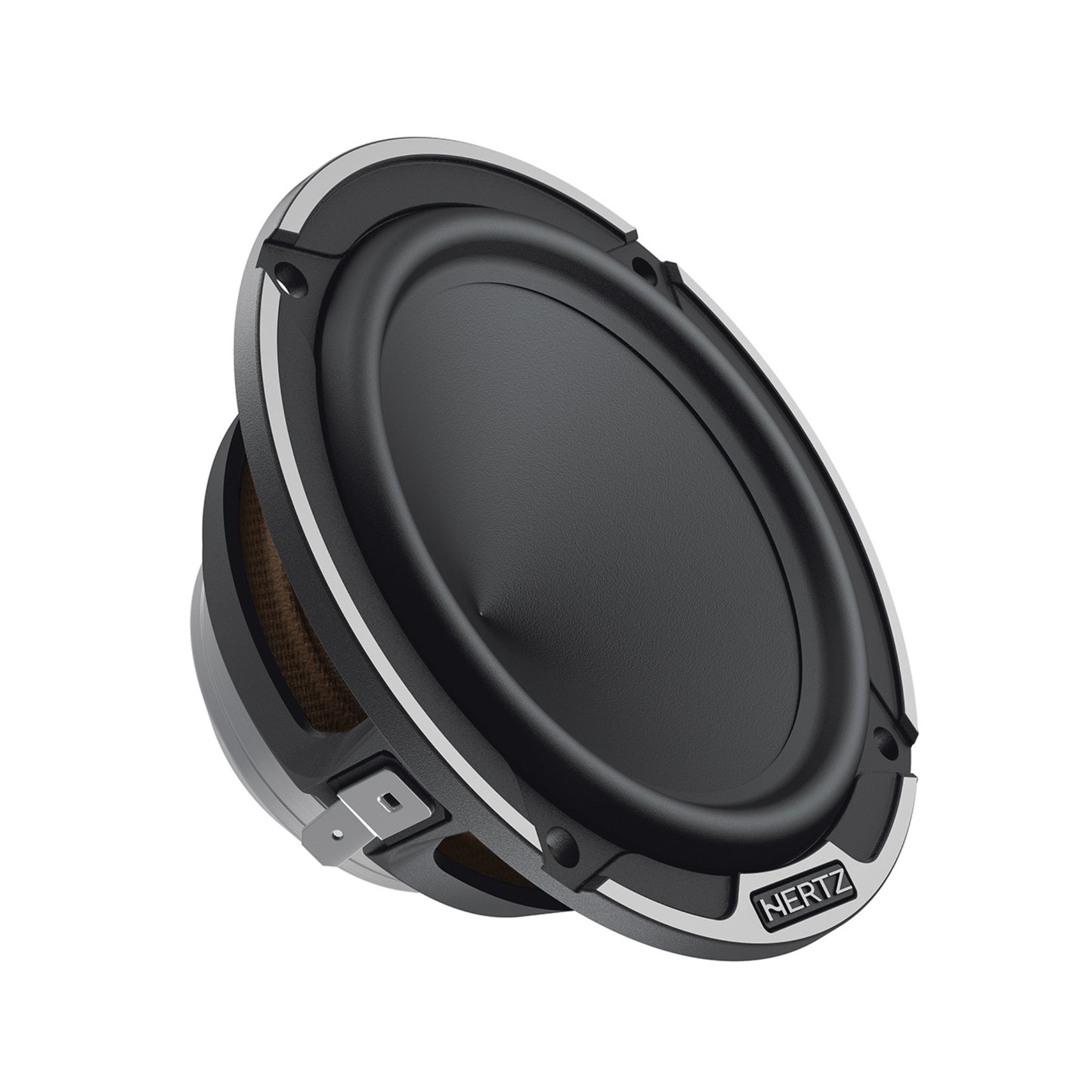

The ML 700.3 Legend car audio midrange features the V-cone geometry upgrade, the Neodymium magnet assembly and the threespoke anti-resonant aluminium alloy basket with vented holes.
Thanks to these technologies, as well as the Boundary Free Surround, taking the diameter emission from 60 to 65 mm, the midrange will provide extended, properly damped low frequency response, as the component will be filtered especially at the low frequencies, for excellent combination with the ML 1800.3 Legend, to build an ultra-performing system for competitions.
Technical Specs
| Component | Mid-range |
| Size mm (in.) | 70 (3) |
| Power Handling - Peak W | 100 |
| Power Handling - Peak Note | (Hi-Pass filtered @ 250Hz - 12dB Oct.) |
| Impedance Ohm | 4 |
| Voice Coil Ø | 20 (0.8) |
| Frequency Response Hz | 200 - 20k |
| Magnet size D x d x h mm (in.) | 45 x 25 x 3,5 (1.77 x 0.98 x 0.13) |
| Weight of one speaker kg (lb.) | 0,21 (0.46) |
| Magnet | Neodymium |
| Cone | Pressed-pulp cone with cotton fibres |
Electro-acoustic Specs
| D mm | 65 |
| Re Ohm | 3,8 |
| Fs Hz | 110 |
| Le mH | 0,05 |
| Vas I | 1,1 |
| Mms g | 2,7 |
| Cms mm/N | 0,7 |
| BL T*m | 3,3 |
| Qts | 0,57 |
| Qes | 0,67 |
| Qms | 4 |
| Spl dB | 90 |
