PRODUCT DESCRIPTION-

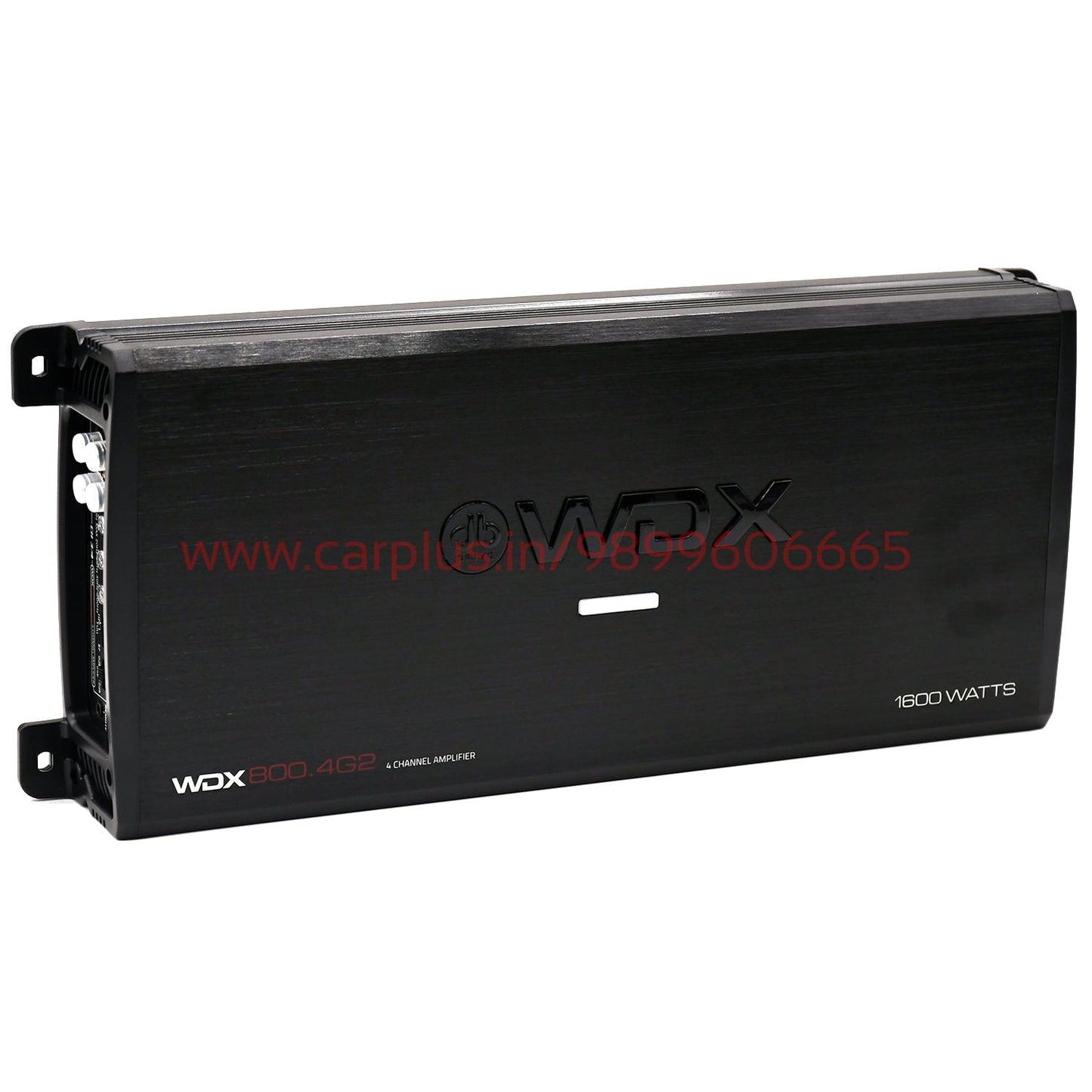

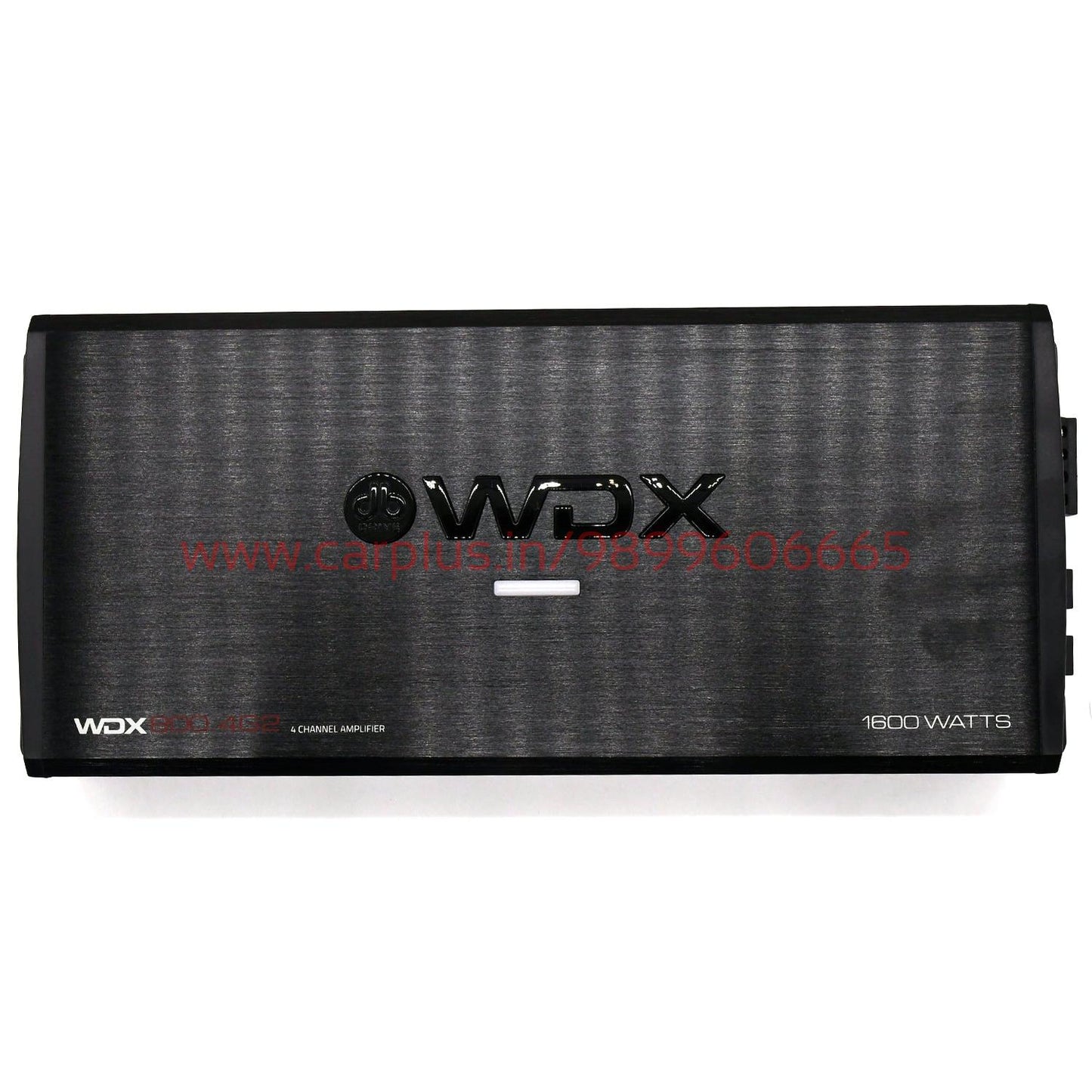

The DB Drive WDX amplifiers includes built-in variable crossovers. The WDX300.4G2, WDX400.4G2 and WDX800.4G2 also offers independent 12dB per octave High Pass and Low Pass X-Over Network. For added low frequency performance the amplifiers are equipped with a selectable6dB-12dB bass boost @ 45Hz- 2Ω Stereo Capability
- Blue LED POWER-ON Indicator

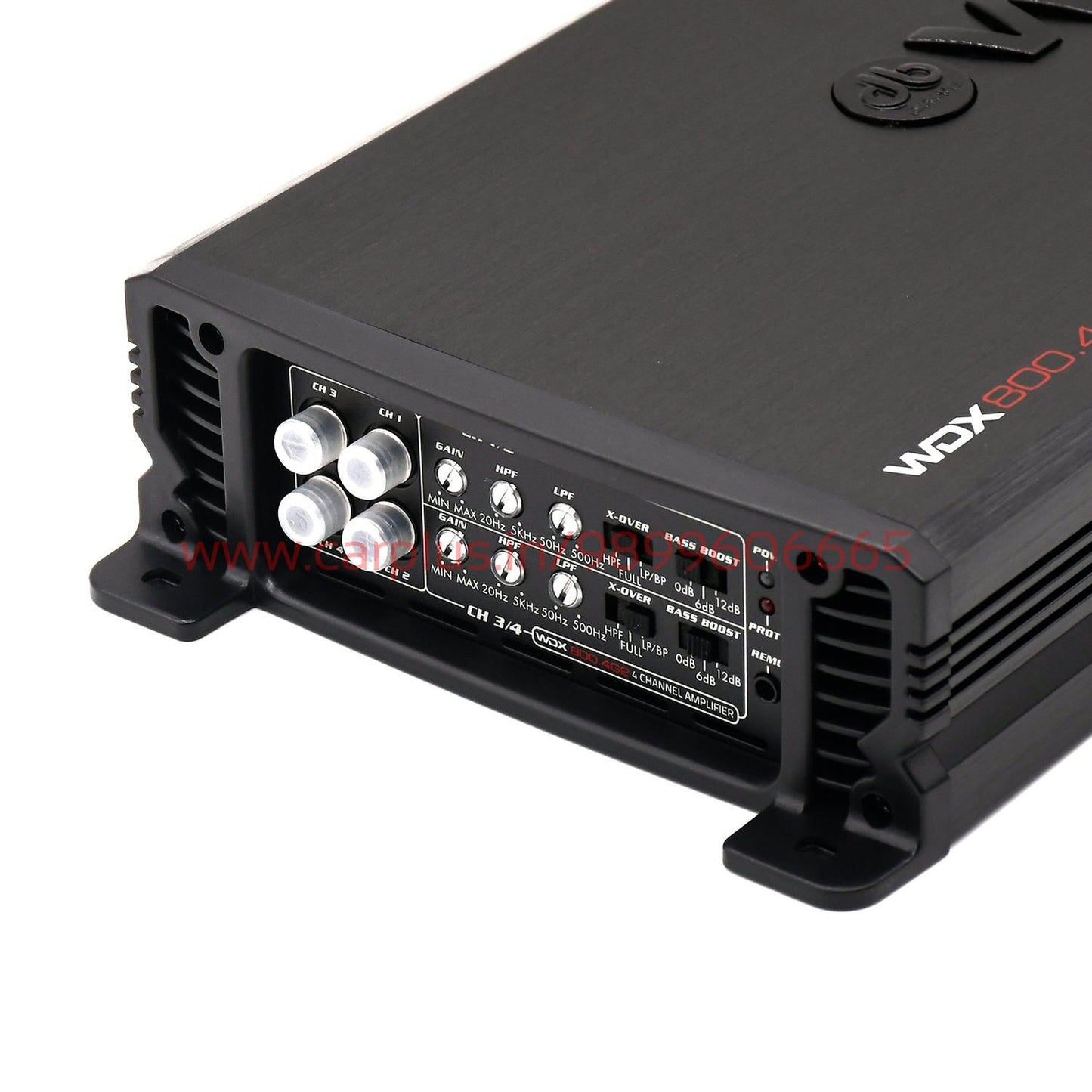

- Variable Low Level RCA Input
- Variable 12DB Per Octave Low-Pass X-Over

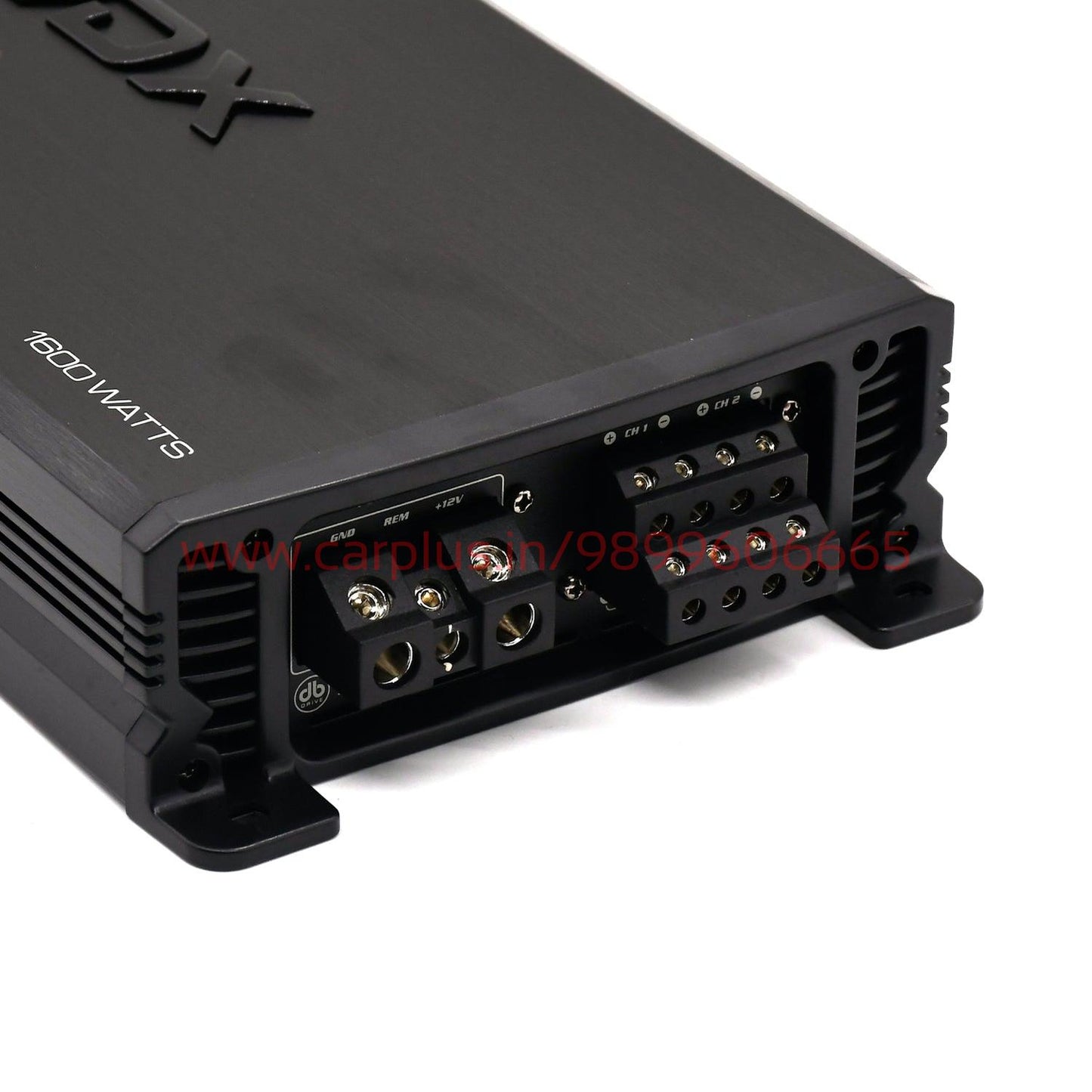

- Direct- Connect Connection Terminals
- Buffered Pre-amp input
- Selectable 6dB-12dB Boost @ 45Hz
- DRIVESINK Heat Management System
- Unregulated DB-DC PWM Power Supply
- Speaker Short Circuit Protection
Specifications-
Physical Structure-
| Length (A) | 15.75″ / (400mm) |
| Width (B) | 7.08″ / (180mm) |
| Height (C) | 2.25″ / (57.15mm) |
General Specifications-
| Rated Power @ 14.4 Volts | 4 x 110 Watts @ 41Ω |
| Dynamic Power Handling | 2 x 330 Watts @ 4Ω Bridged |
| 4 x 220 Watts @ 2Ω |
Parameters-
| Frequency Response | 10Hz ~ 250Hz |
| S/N Ratio | < 105 dB |
| Independent Selectable X-Over F/R | HPF / LPF /LP-BP |
| Variable High Pass Filter | 50Hz ~ 5KHz |
| Variable Low Pass Filter | 50Hz ~ 500Hz |
| Damping Factor | 200m< |
