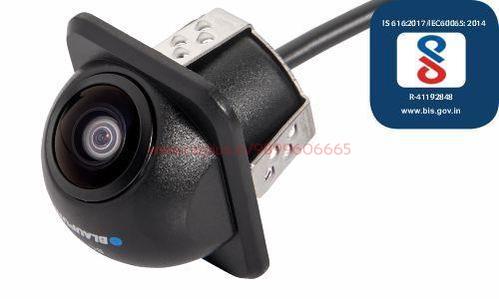

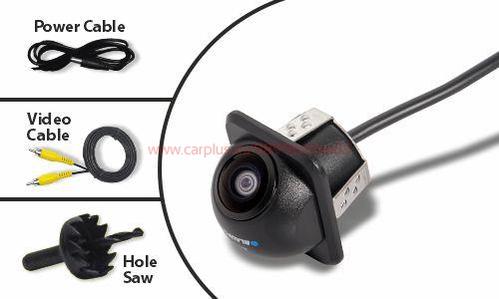

170° Universal OE style Rear View Number Plate Camera with Moving Guidelines

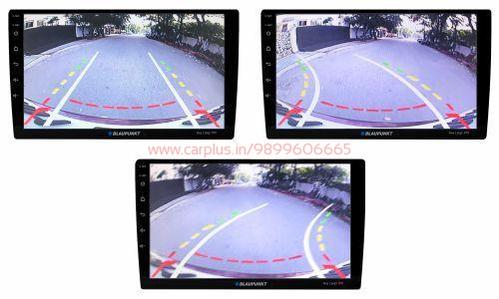

BC DH05 (OE style rear number plate camera) is equipped with high end 1/3" CMOS color sensor and is Element Ready. It is designed to withstand extreme weather conditions. It consumes very little power due to the design and use of modern circuitry inside. It has Moving Guidelines
C-MOS Sensor
A CMOS sensor is an electronic chip that converts photons to electrons for digital processing. BC DH05 incorporates a highly efficient color sensor and modern electronics, reducing power consumption.
General Specifications
BC DH05 (OE style rear number plate camera) is equipped with high end 1/3" CMOS color sensor and is Element Ready. It is designed to withstand extreme weather conditions. It consumes very little power due to the design and use of modern circuitry inside. It has Moving Guidelines
C-MOS Sensor
A CMOS sensor is an electronic chip that converts photons to electrons for digital processing. BC DH05 incorporates a highly efficient color sensor and modern electronics, reducing power consumption.
General Specifications
- 170° Universal OE style Rear View Number Plate Camera with Dynamic Guide Lines
- Power Supply : DC12V±3V
- Resolution : 720 TVL
- Current Consumption : 50mA
- Image Sensor :CMOS
- Optical Format : 1/3
- Lens Angle : 170° wide angle
- Effective Pixels : 1080 x 720
- White Balance : Auto
- Electronic Shutter : 1/60 ~ 1/100000 sec
- Water Resistant
- Humidity : up to 95%
- PAL / NTSC compatible
- Illumination Min.: 0.1 Lux
- Operating Temperature : -20°C ~ +70°C
