The S165 S85 kit is designed for outstanding audio performance. It includes two 165 mm S6.85 woofers, with a maximum power output of 200 W and a frequency response of 45 Hz to 5 kHz, guaranteeing deep bass and clear midrange. Their ultra-rigid beryl-carbon design and oversized magnet motor ensure precise, dynamic sound reproduction. T25HR 25 mm soft-dome tweeters, with their high-efficiency neodymium magnet, deliver detailed highs and wide sound dispersion, while their low-resonance rear chamber guarantees excellent audio quality. BFX02 crossovers provide optimum frequency management, with adjustable tweeter levels (0 dB or -3 dB) to personalize the sound experience. This complete system offers professional sound quality, ideal for demanding audiophiles.

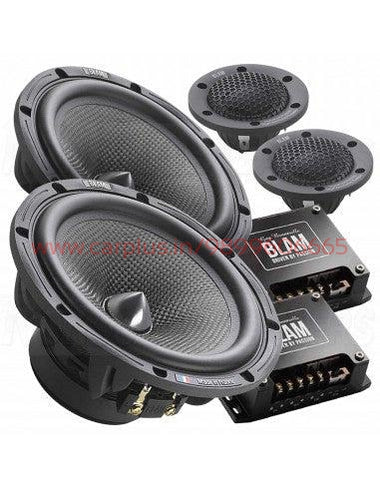

THIS KIT INCLUDES

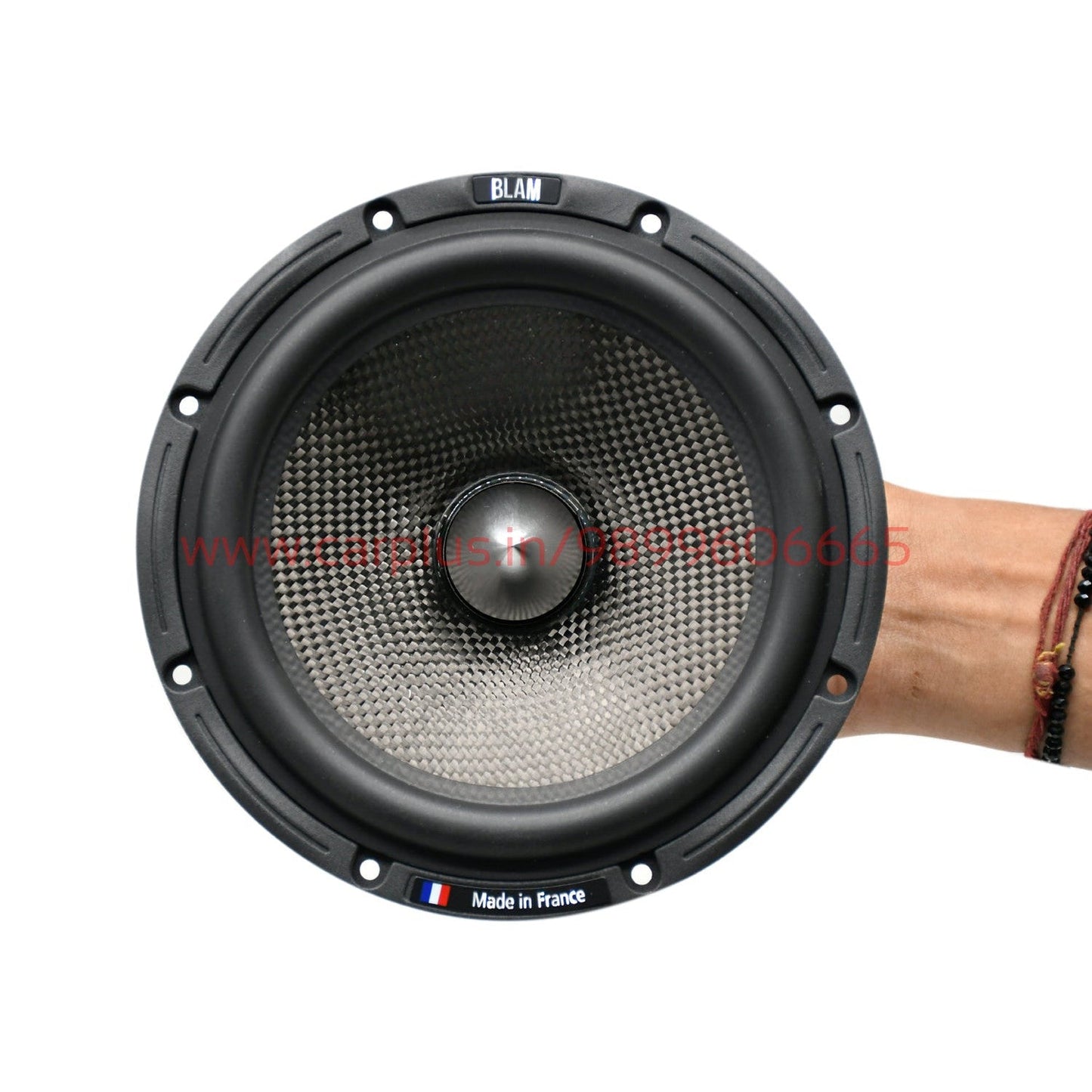

x2 woofer S 6.85
– 6-1/2” (165 mm) woofer
– Maximum power 200 W / Nominal power 100 W
– Frequency response 45 Hz – 5 KHz
– Impedance 3 Ω
Die-cast aluminium basket – Ultra-rigid beryl-carbon cone – NBR cone – “Conex” spider
Long-life “Conex” spider – 32 mm voice coil – Glass support – 85 mm x 20 mm
Oversized magnetic motor – Machined poles – Gold-plated terminal block.

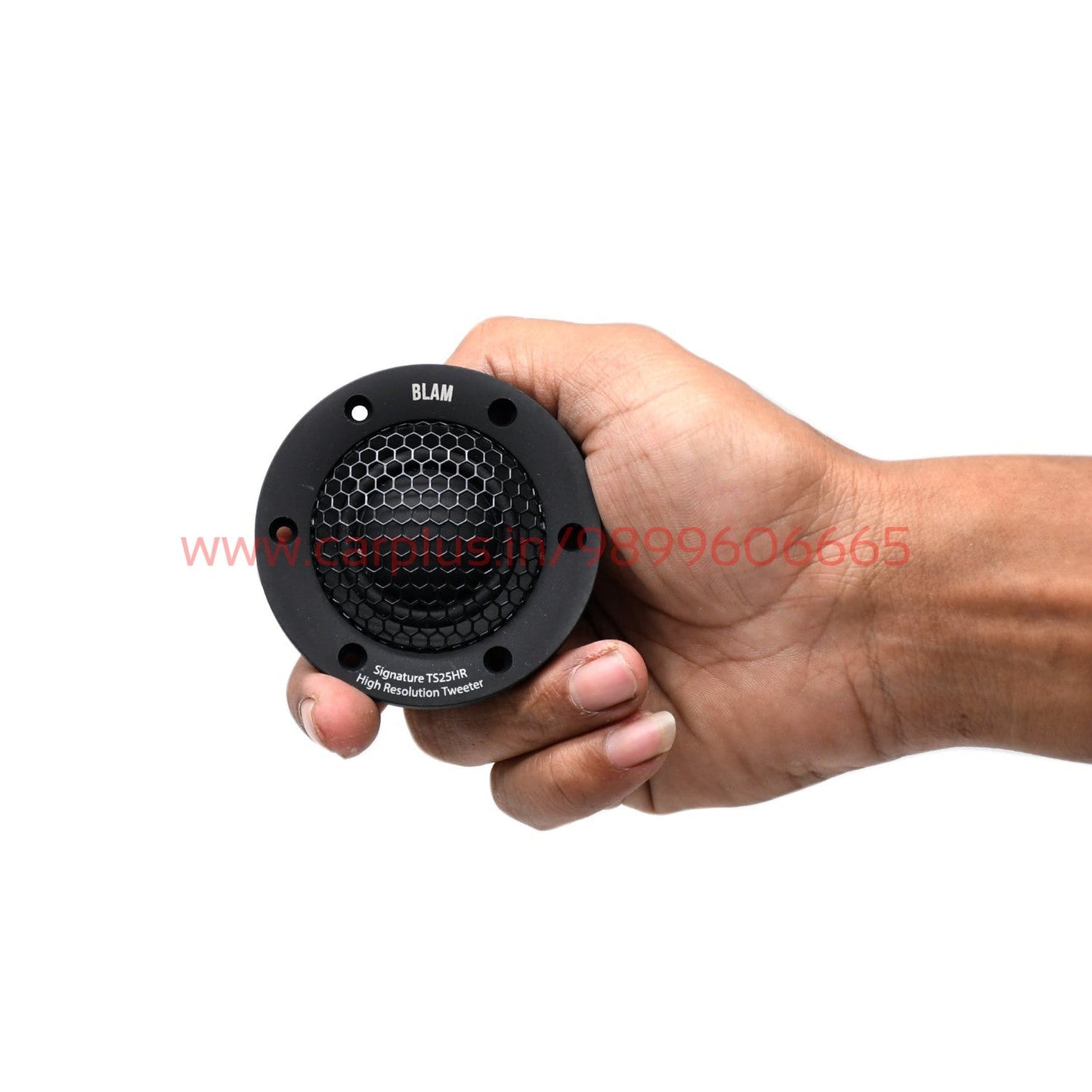

x2 tweeter T25HR
– 25 mm (1″) soft-dome tweeter
– 4 Ω, high-efficiency noedymium magnet (N38H)
– Precision-machined aluminum faceplate
– Low-resonance rear chamber
– Large protection roller for wide dispersion
– Transparent protective grille

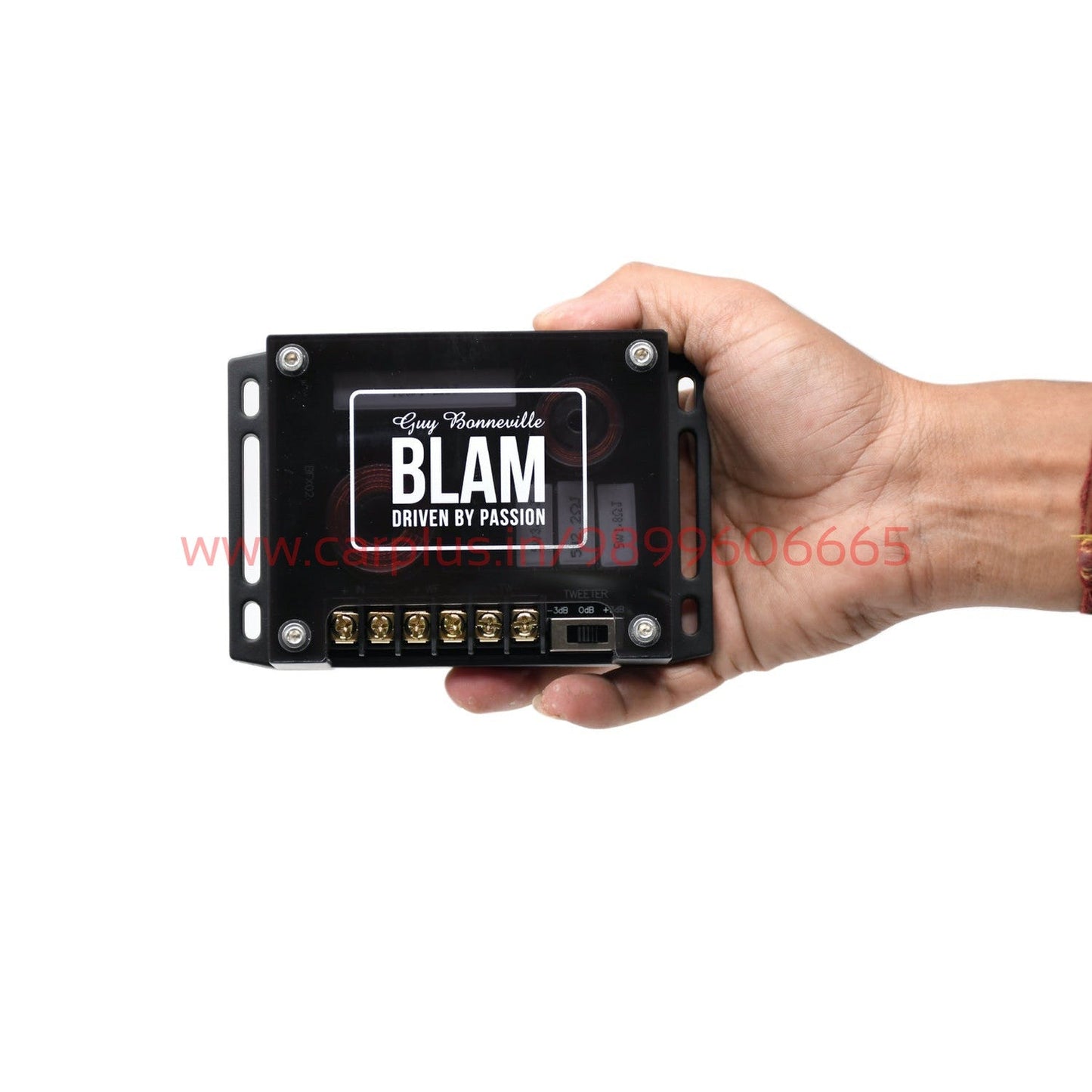

x2 BFX02
6dB/octave high-pass filter
Tweeter level adjustable to 0 dB or attenuated to -3 dB
TECHNICAL DATA SHEETS :
