PRODUCT DESCRIPTIONS-

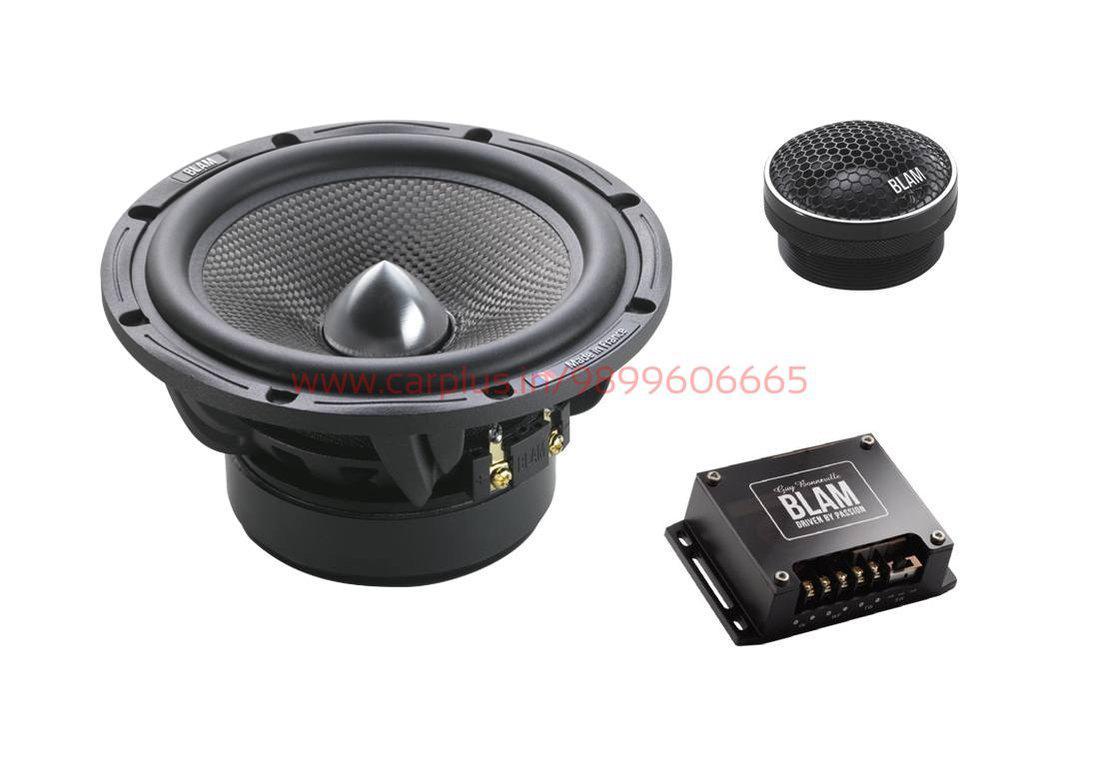

This kit contains two 165mm (6.5 '') woofers, two 28mm (1.1 '') soft dome tweeters and two 6 / 12dB / octave external filters with adjustable tweeter level: +3 dB 0dB or - 3 dB
Composition

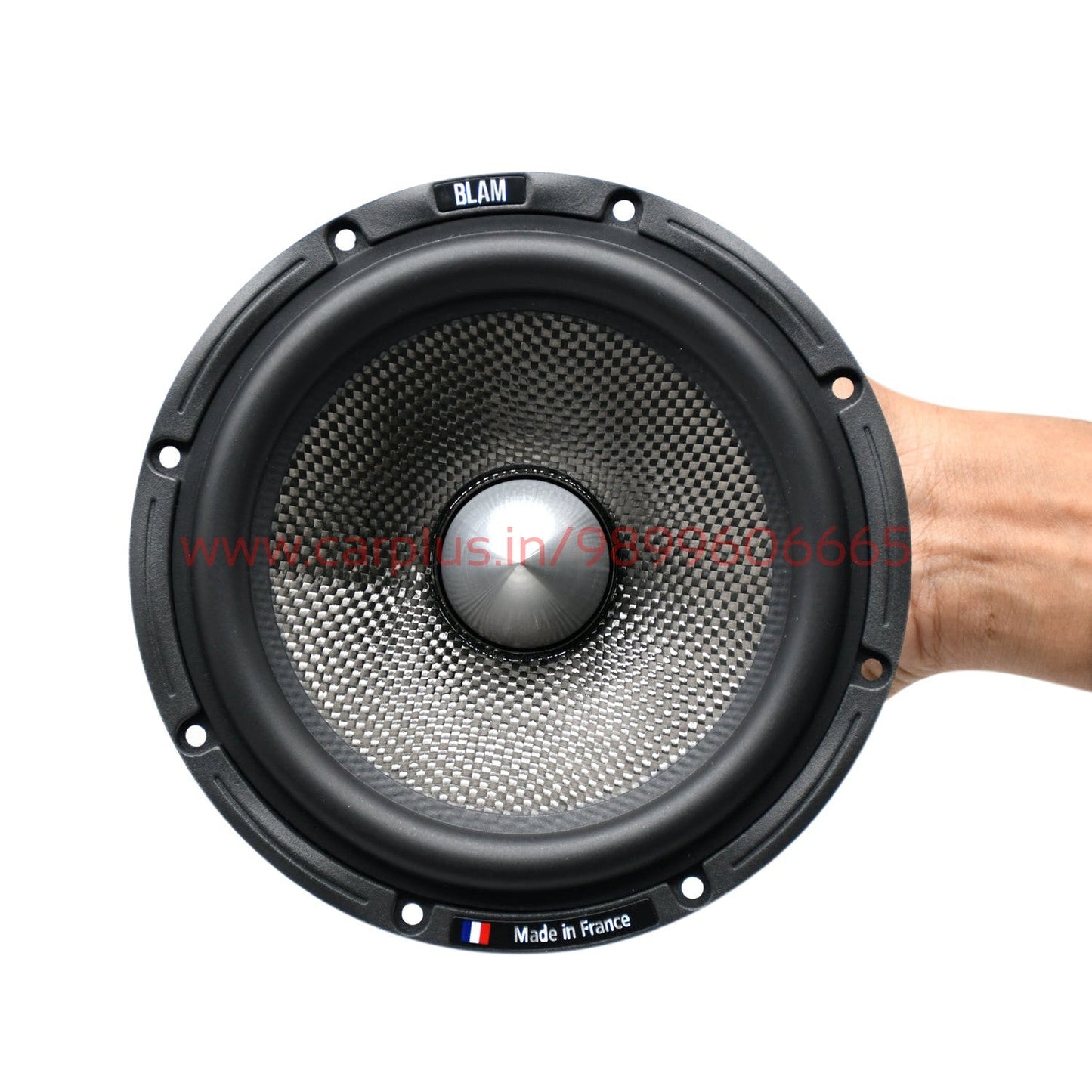

- WS 6.100 HIGH POWER WOOFER
- 6.5 '' (165 mm) woofer
- Max Power 250 W / Nominal 125 W
- Frequency response 50 Hz - 5 kHz
- Sensitivity 93.2 dB - Impedance 2 Ω
- Cast aluminum salad bowl - Ultra rigid fiber membrane of carbon - Peripheral NBR suspension - Spider long life "conex" - Spool of 38 mm on fiberglass support - Oversized magnetic motor 100 × 20 mm - Machined aluminum warhead - Gold plated terminal block.

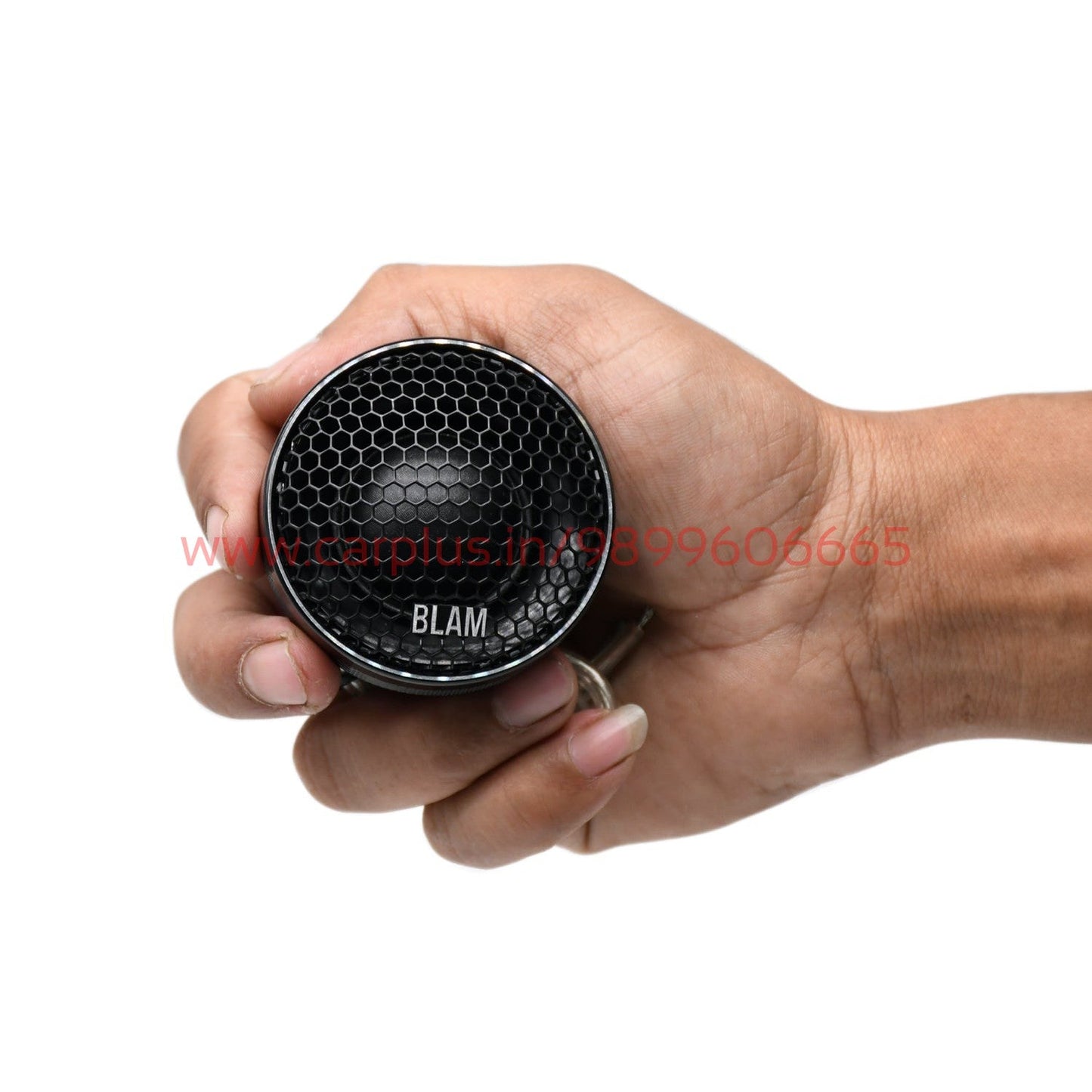

TS 28 HIGH SENSITIVITY TWEETER
- 28 mm (1.1 '') soft dome diaphragm
- Frequency response 2.5 kHz - 25 kHz
- Sensitivity 93 dB - Impedance 4 Ω
- High efficiency magnet (N38H neodymium) - Ferrofluid for high power handling - Precision machined aluminum horn - Transparent sound protection grille.

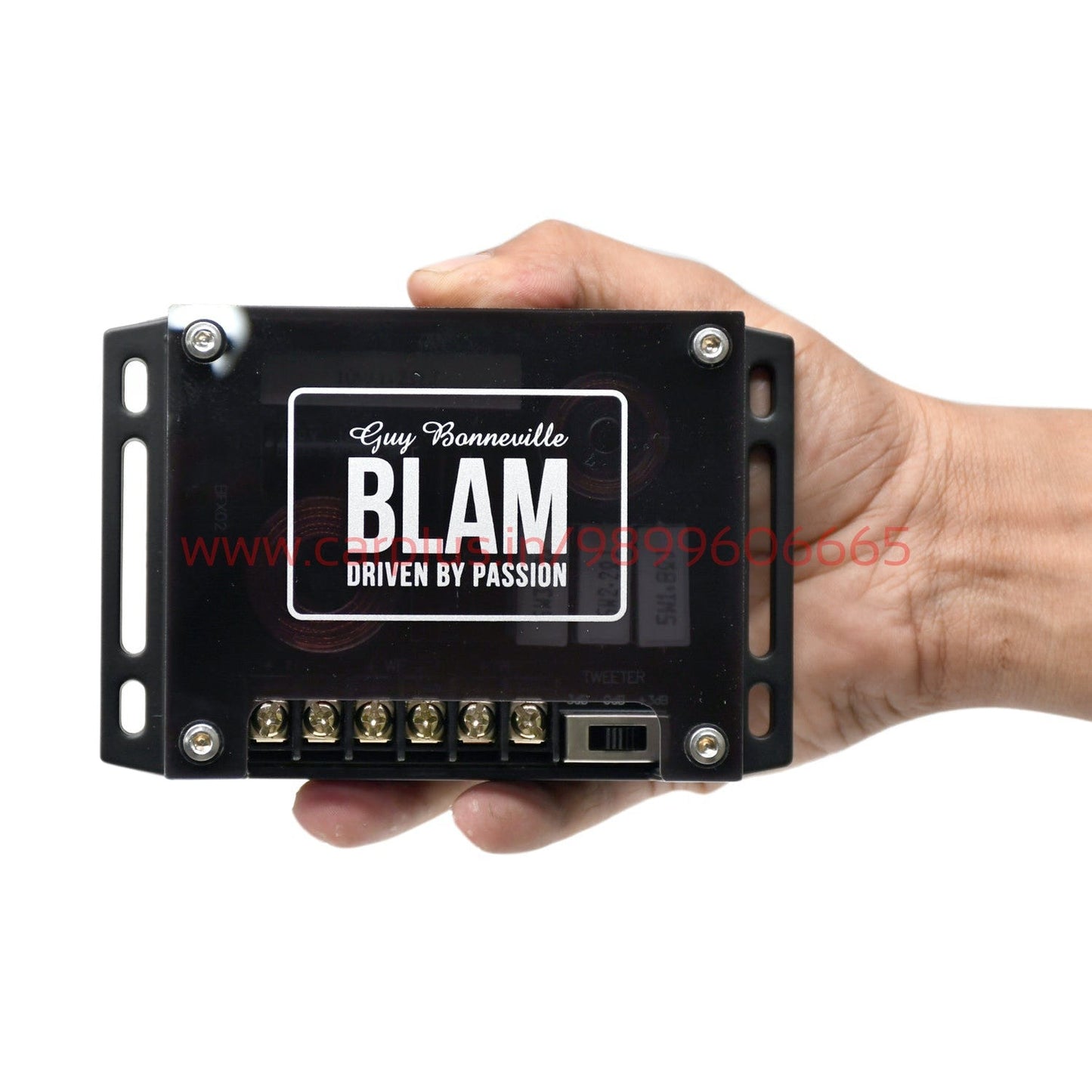

BFX 02 AUDIOPHILE COMPONENT FILTER
- 2-way 12/12 dB / octave filter
- Adjustable tweeter level +3 dB, 0 dB or -3 dB
- Crossover frequency: 3 kHz
- High-quality metallized polyester capacitors - Low resistance air coils.
