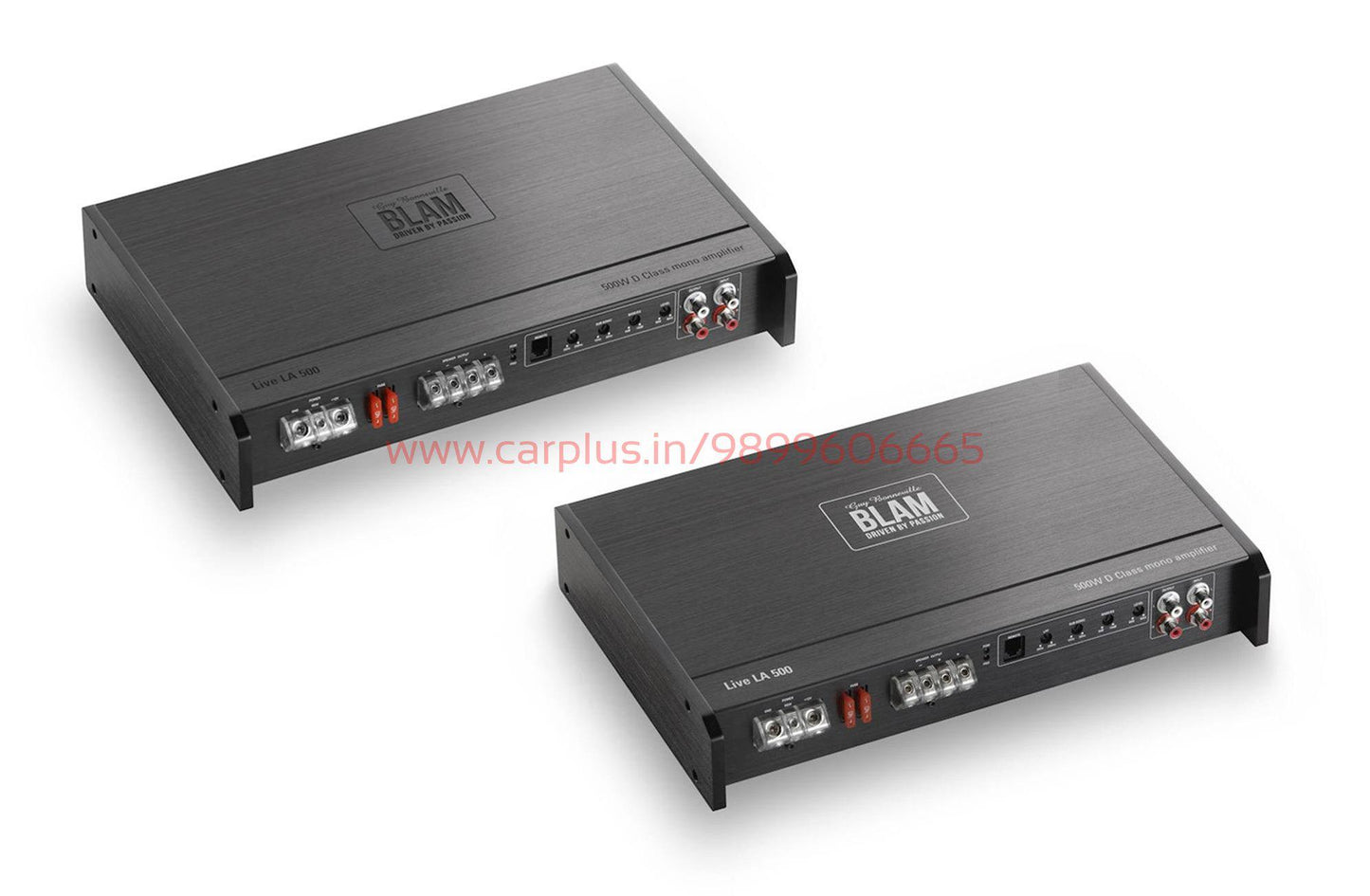

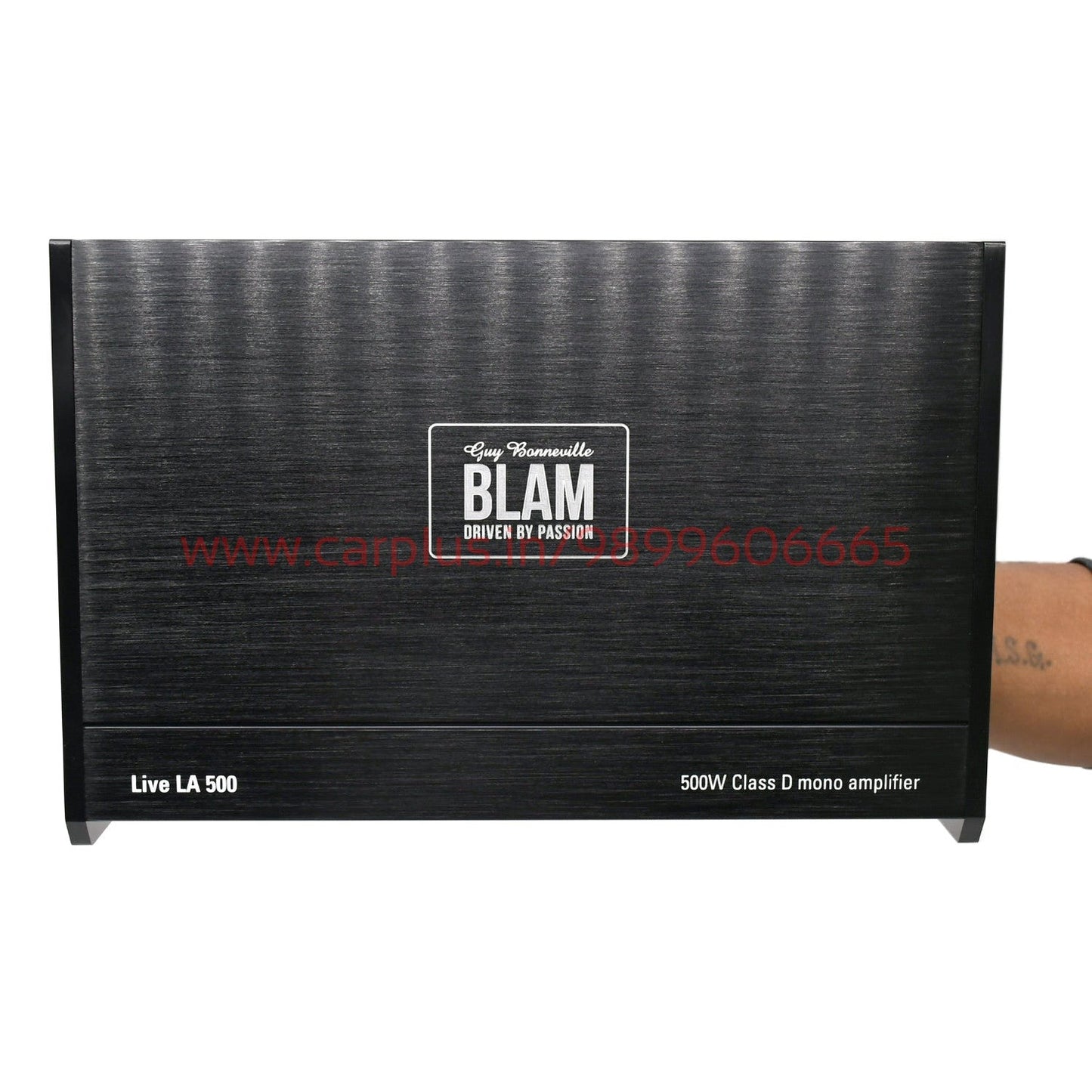

500 W CLASS D MONO AMPLIFIER
We developed the LIVE amplifiers by considering every parameter; bringing them to life by measuring and listening to each design concept until they reached our design target.
The result is a huge reserve of power that reproduces every detail of the music. Low frequency information is precisely reproduced with impressive authority. Their large heatsink area keeps the amplifier cool, increasing stability and reliability.
Their robust design is combined with a high-end finish and are available in two colors black or silver.
Composition
Characteristics
• RCA low level inputs: 0.5 V – 8.5 V
• RMS Power (4 Ω): 230 W
• RMS Power (2 Ω): 400 W
• RMS Power (1 Ω): 500 W
• Low pass crossover: 30 Hz – 250 Hz (24 dB/octave)
• Subsonic crossover: 15 Hz – 35 Hz (24 dB/octave)
• Frequency response : 15 – 250 Hz
• Bass boost: 0-10 dB at 45 Hz
• Signal/noise ratio > 100 dB
• Protections: short circuit / low impedance /reversal of polarity / heat protection
• Dimensions (L x W x H): 346 x 217 x 60 mm – 13.6’’ x 8.5’’ x 2.4’’
• Remote level control included
It is also available in the Black Edition
