SKU: BLAM000035

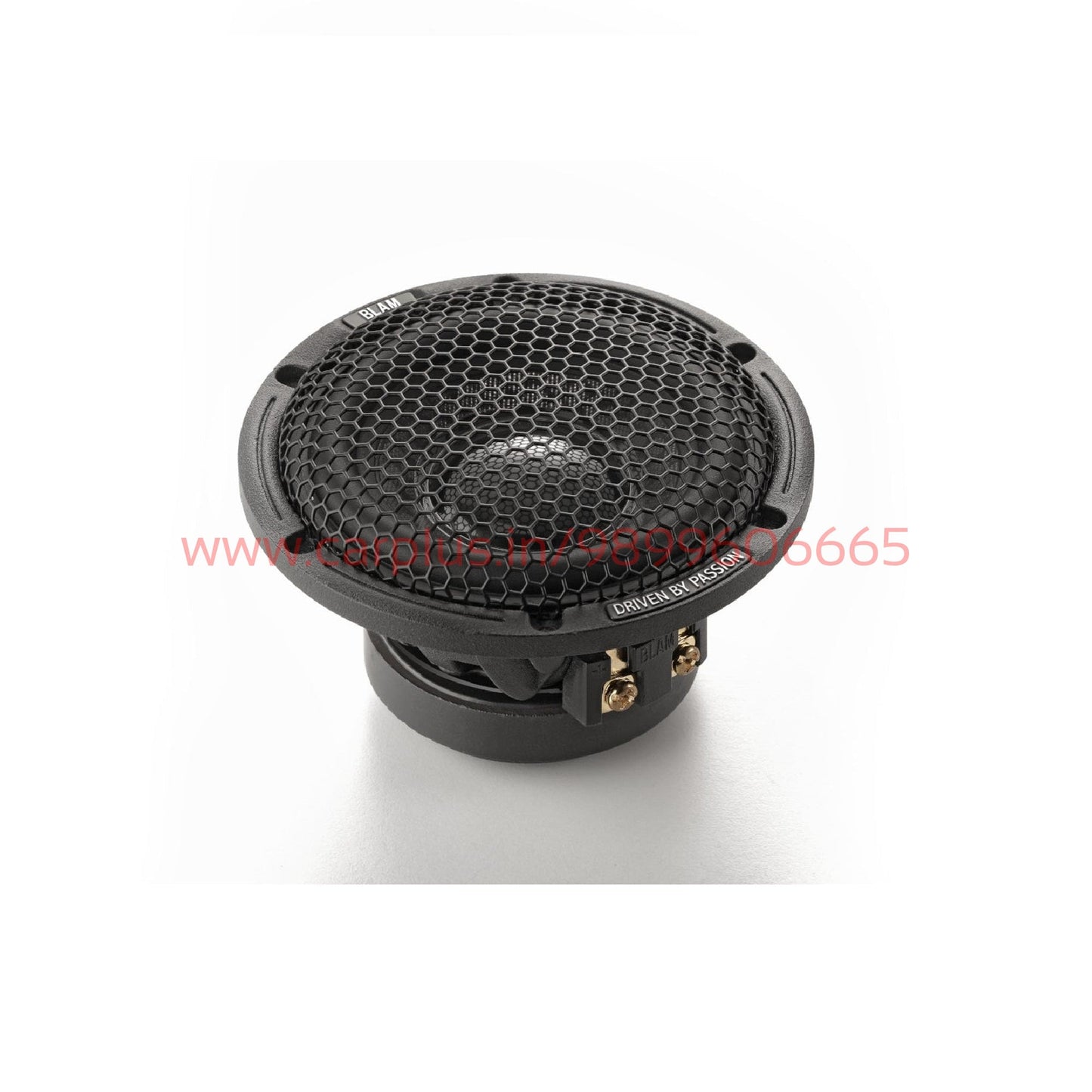

BLAM LIVE 3" Midrange - LM80

Sale price

Rs. 27,990.00

Regular price Rs. 25,000.00
( / )
Click here to be notified by email when BLAM LIVE 3" Midrange - LM80 becomes available.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question

Thanks to its very linear frequency response that extends into the extreme high frequencies, the LM80 will reproduce music with an incredible resolution that will drive you to rediscover all your favorite music tracks.

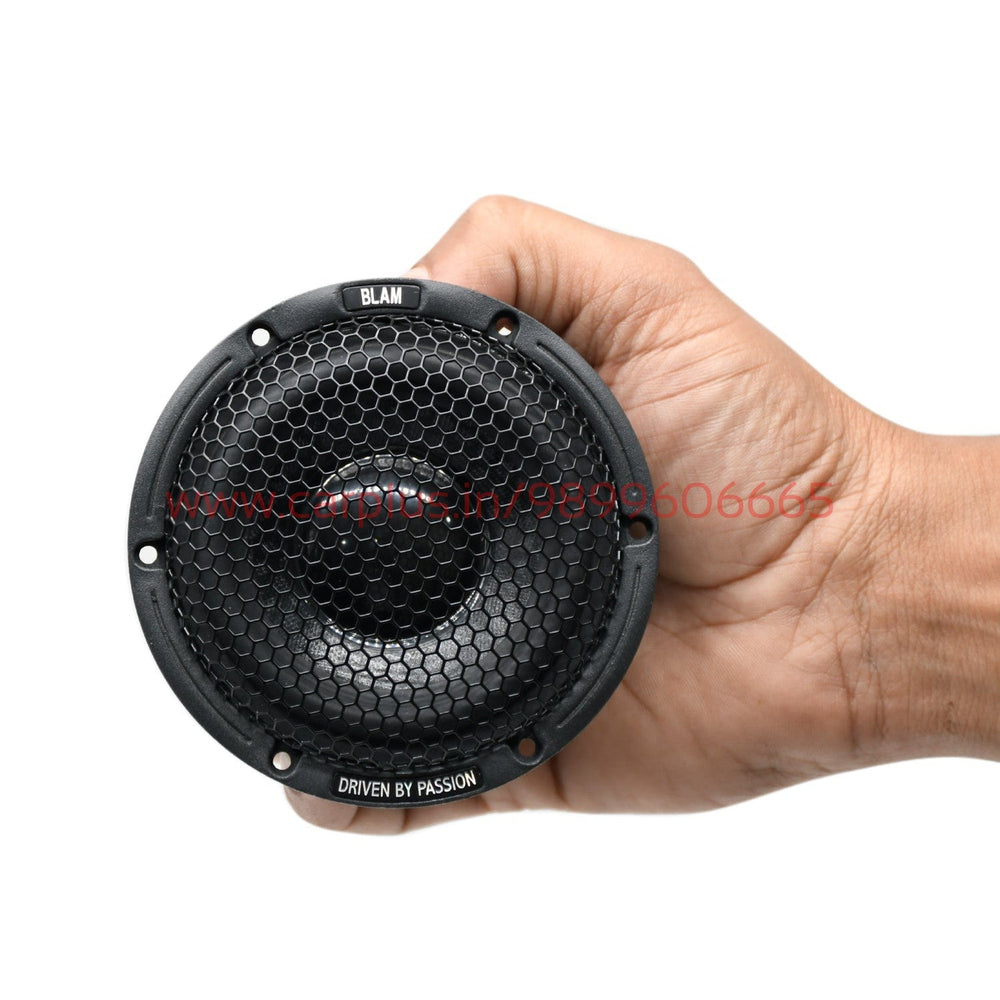

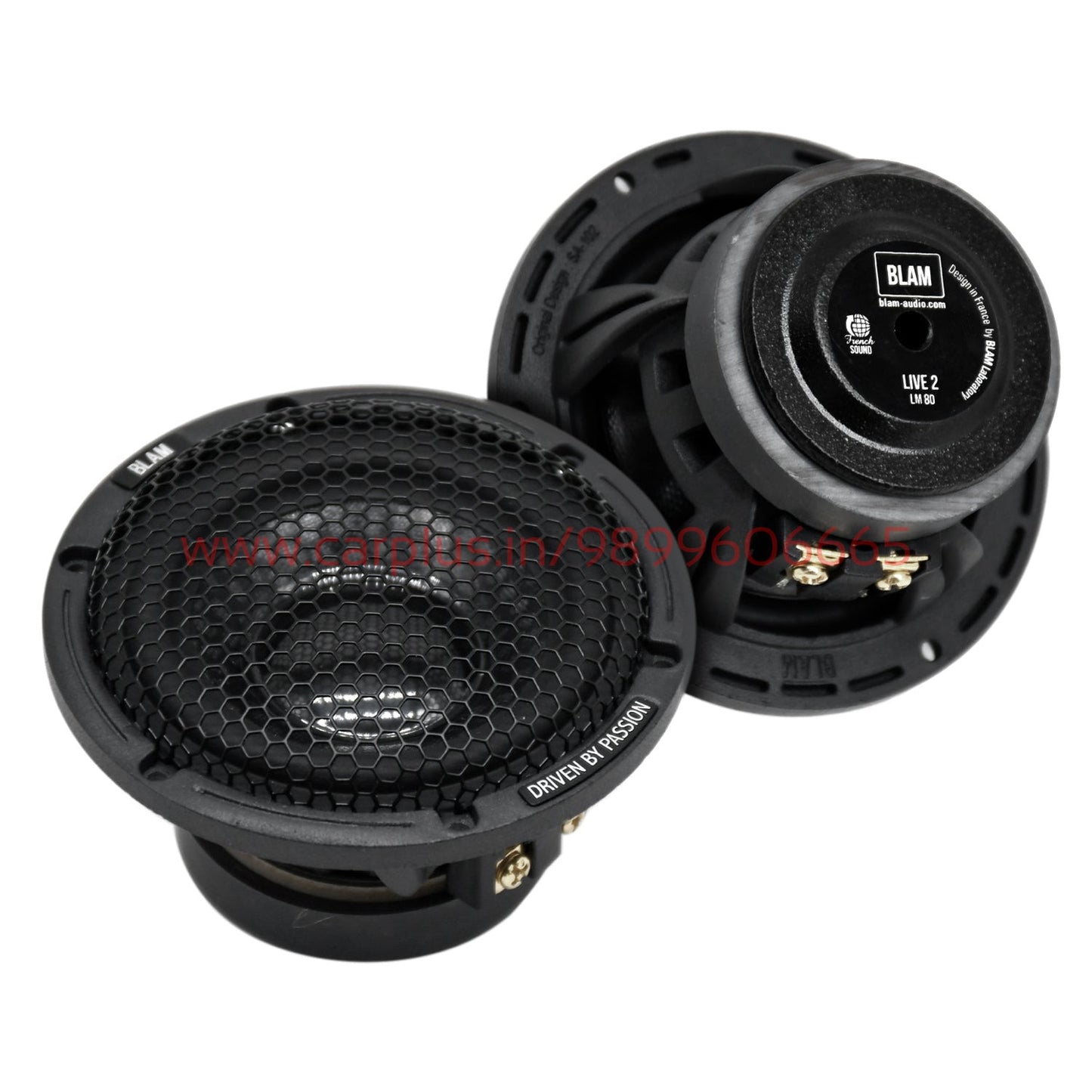

This system includes two 80 mm (3″) midrange driver

80 mm (3″) midrange driver
Max power 100 W – Nominal power 25 W
Frequency response 100 Hz – 25 kHz
Sensibility 87.6 dB – Impedance 3 Ω

  • Depend upon the cut-off frequency. 25 W RMS if filtered above 300 Hz at 12 dB/octave

Composition

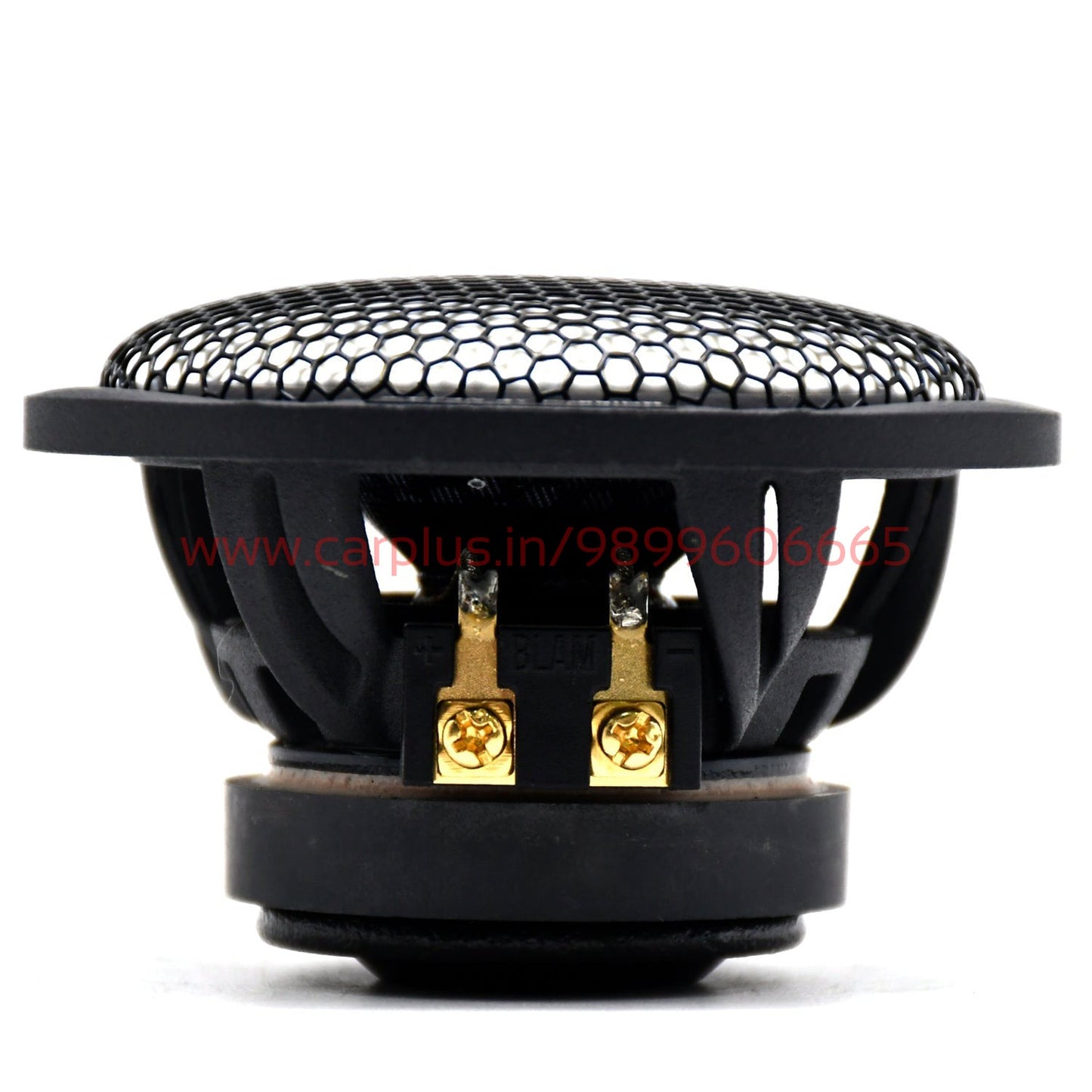

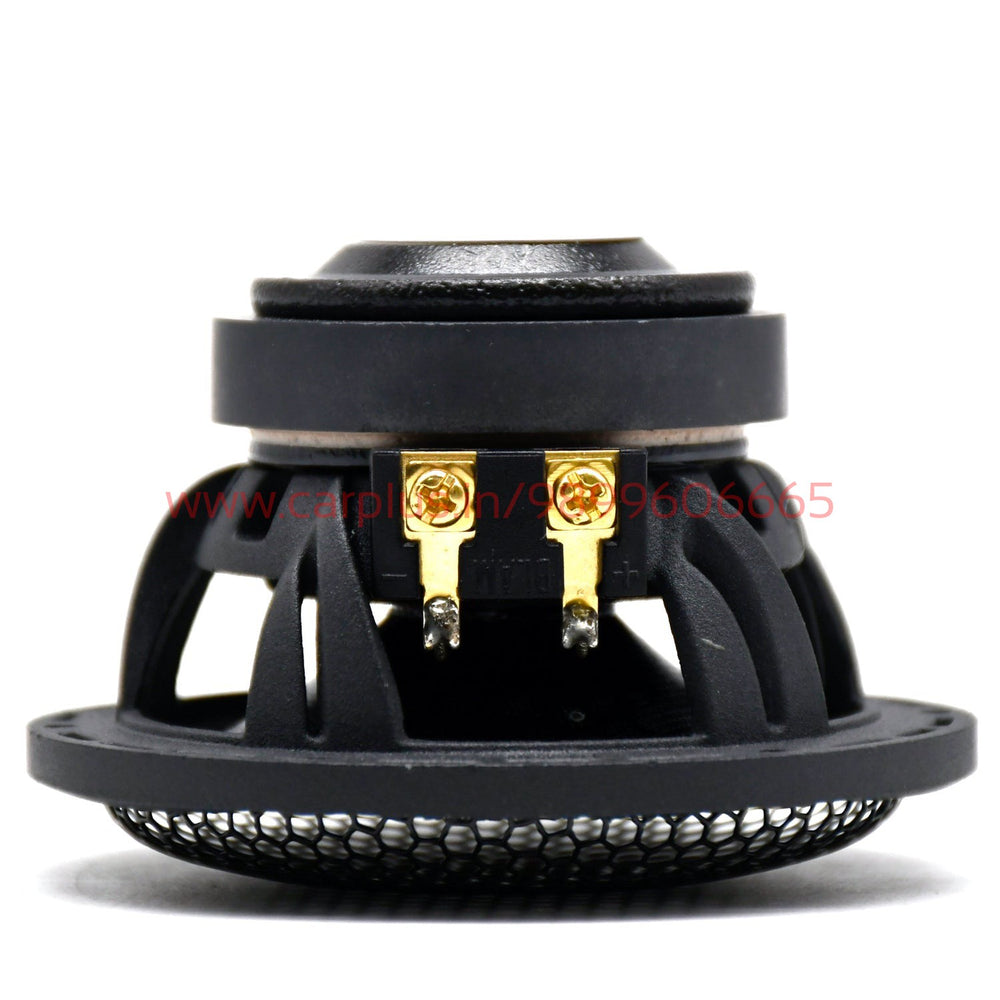

LM80 80 MM (3”) MIDRANGE DRIVER
Max power 100 W – Nominal power 25 W
Frequency response 100 Hz – 25 kHz
Sensibility 87.6 dB – Impedance 3 Ω
Mounting depth 45.5 mm (1.8’’)

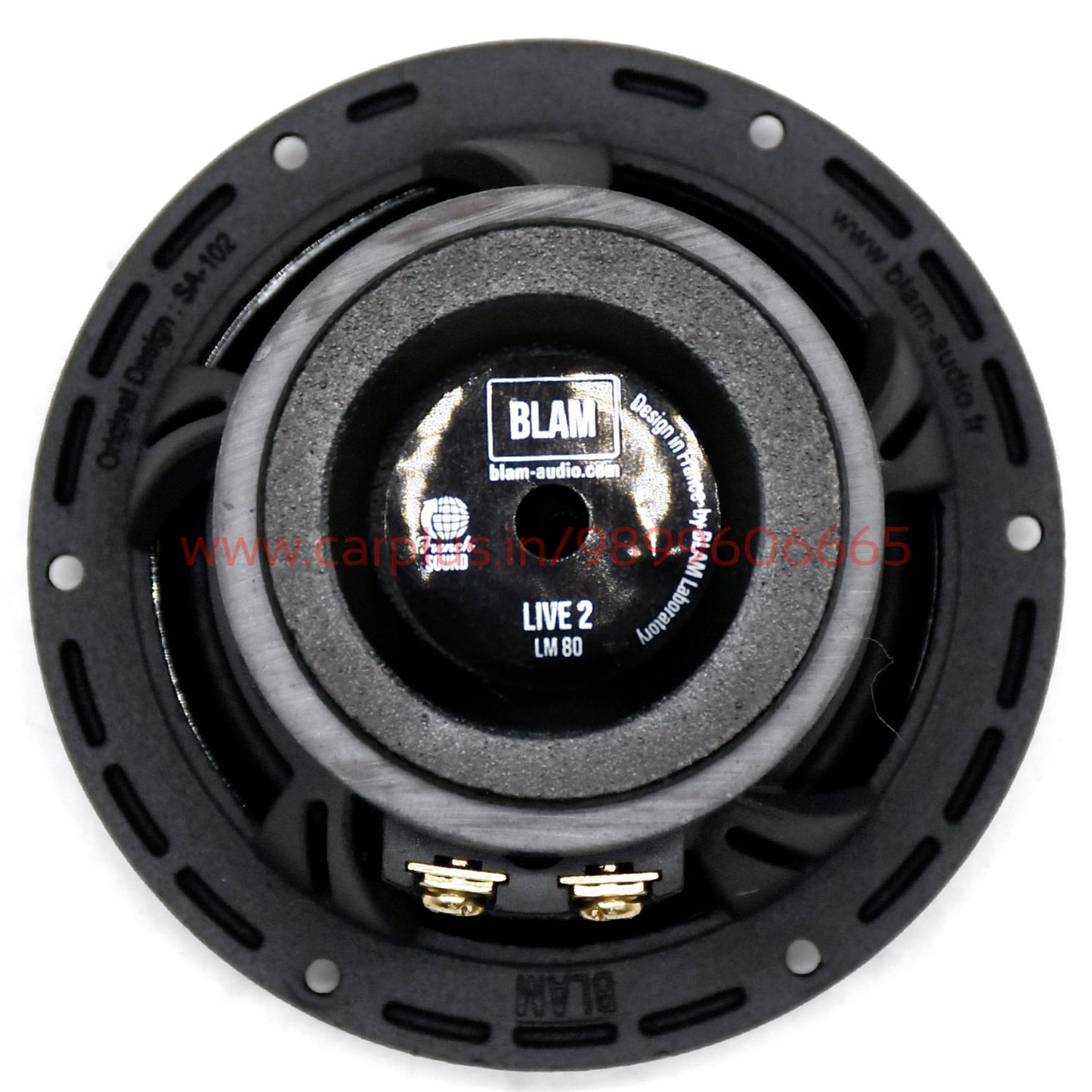

Die cast aluminium basket – Epoxy resin and glass fiber cone – Butyl surround – Long-life “Conex” damper – 20 mm (0.8”) voice coil with TIL former – 55 mm x 10 mm (2.1” x 0.4”) ferrite magnet

Optimized for sealed enclosure volume from 2 L to 30 L
Minimal required cut off frequency: 300 Hz 12 dB/octave

Supplied accessories :
Mounting screws

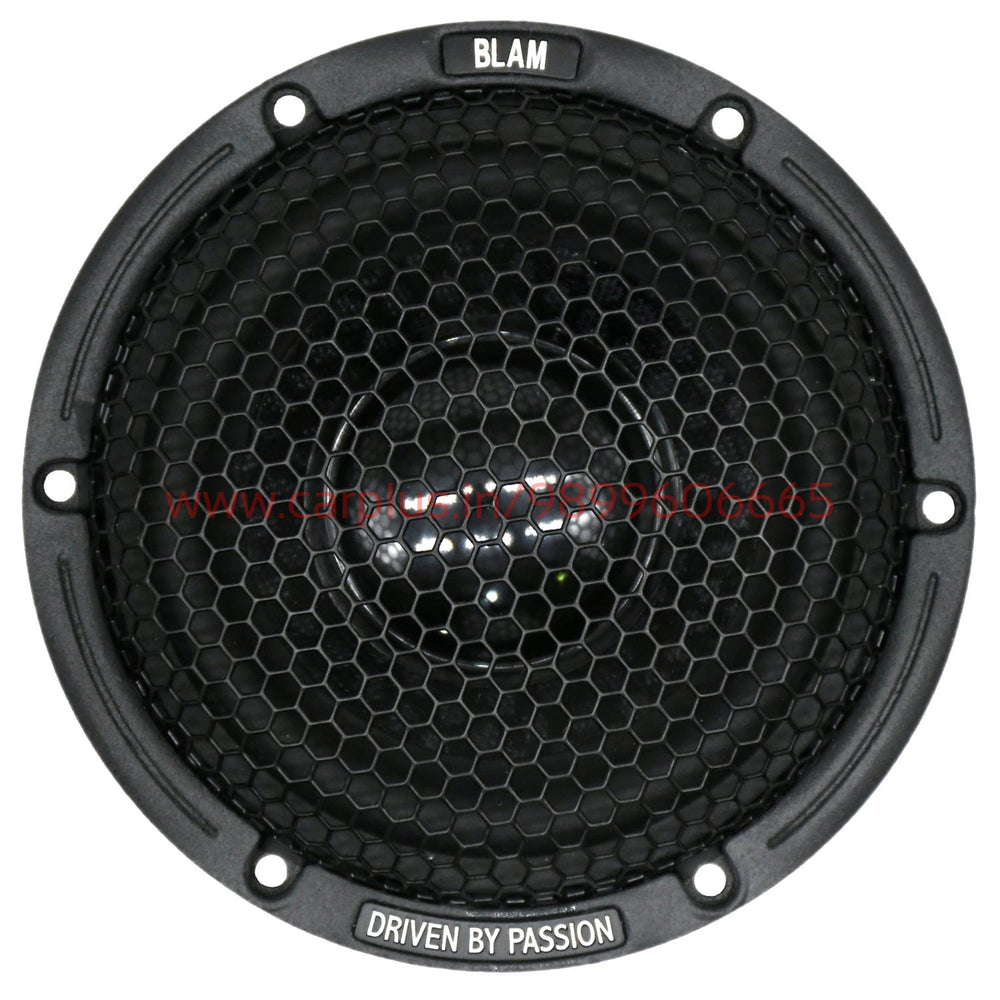

Protective grill
User manual

OS80 compatible with LM80
MACHINED SOLID ALUMINIUM SEALED ENCLOSURE
Available in two colors: light grey and mat black
