Technical specification

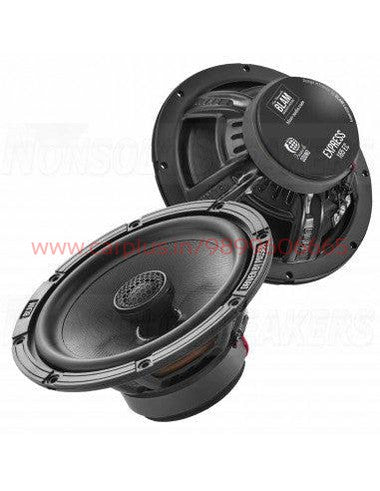

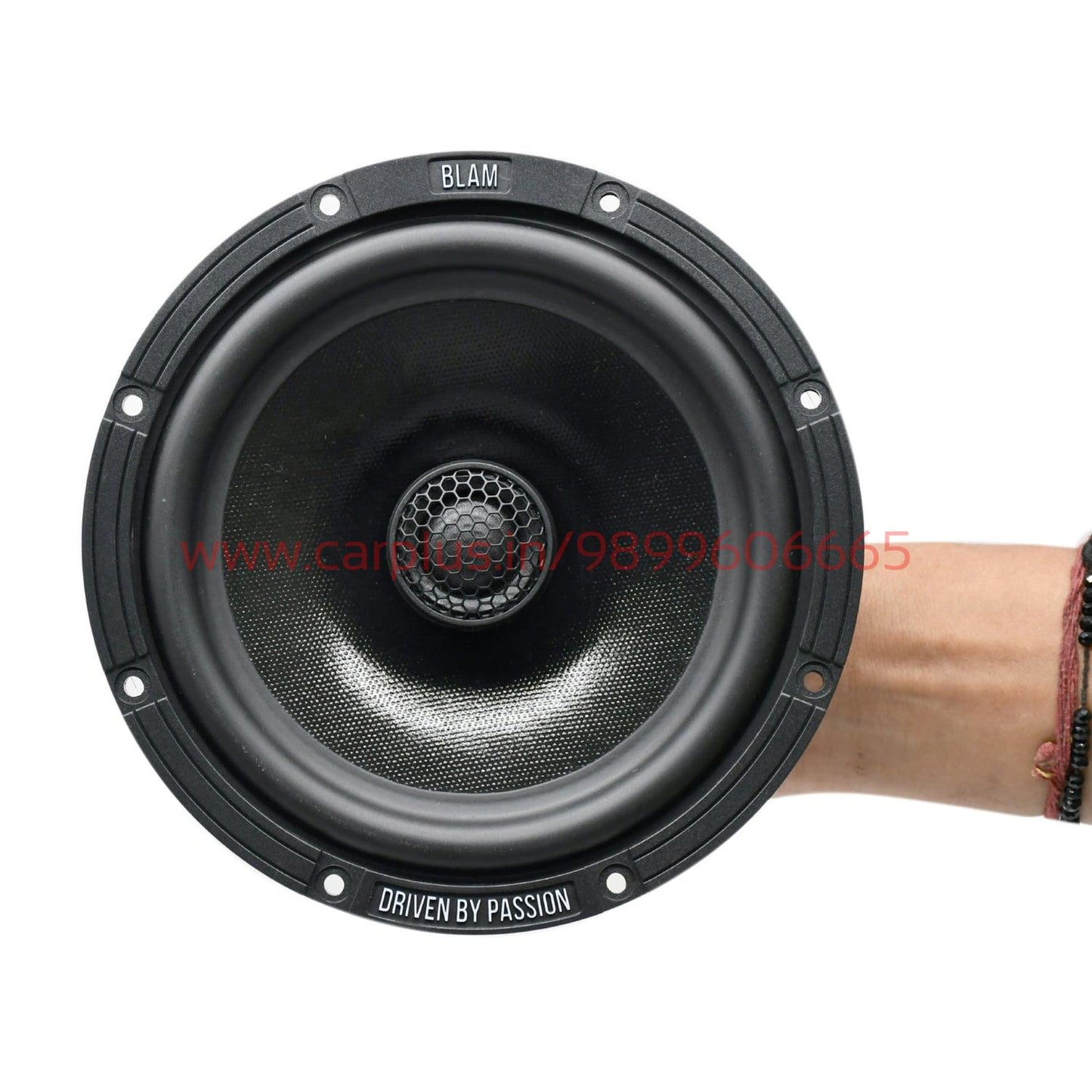

This kit is composed of two 165 mm (6,5”) woofers, with two 20 mm (3/4”) coaxial soft dome tweeters, two 6 dB/octave audiophile high-pass crossovers
2-way high-fidelity coaxial system
165 mm woofer
Max Power 120 W – Nominal Power 60 W
Frequency response 65 Hz – 25 kHz
Sensitivity 93.5 dB – Impedance 2 Ω
Composition
2 Woofers : 165EC
Specific deep-drawn steel basket
Treated and tropicalized cellulose pulp membrane
Butyl rubber surround
Spider long life “Conex”
25 mm voice coil on kapton former
Magnetic motor 80 mm x 15 mm (Y30)
Thick magnetic circuit (5 mm)
2 coaxial tweeters :
20 mm high quality soft dome
N38 neodymium motor
Integrated high-pass crossover 6 dB/octave
Supplied accessories:
Mounting screws
User manual
