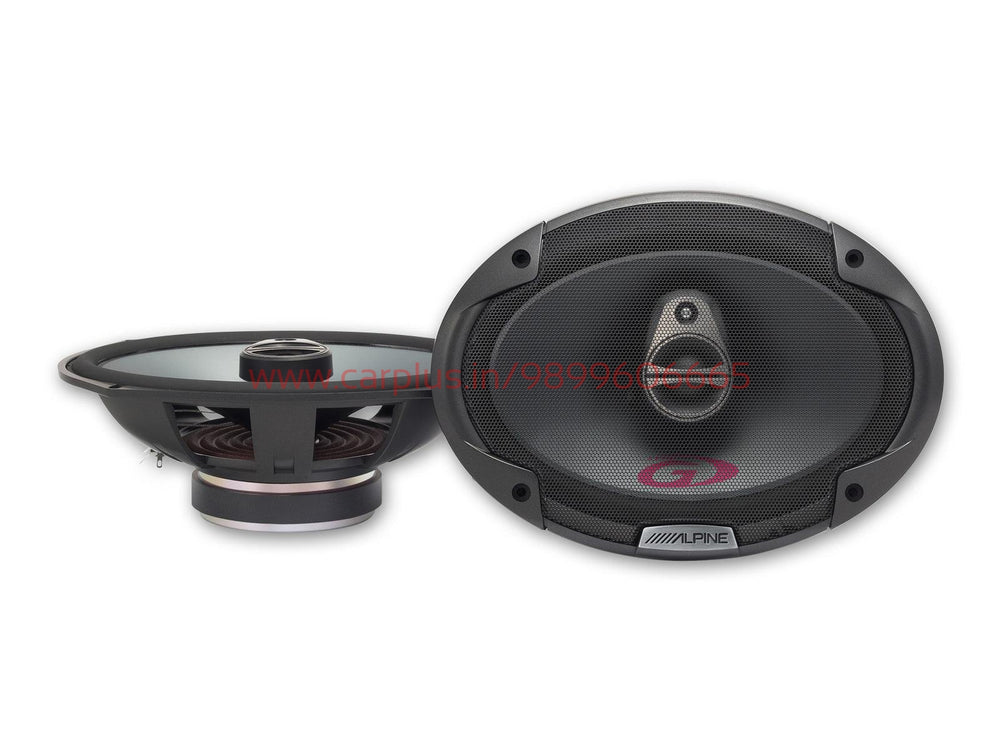

Built to Handle High Power The new Type-G Series of component and coaxial speakers are designed and built to handle high power levels. This speaker also delivers good sound quality, due to a soft dome tweeter, square voice coil wire with Kapton bobbin and an audio tuned capacitor.
FEATURES
Tweeter
- Tweeter Type: 11mm PI Dome Tweeter
- Magnet Material: Neodymium Magnet
Midrange
- Midrange Type: 25 mm Silk Soft Dome Midrange
- Magnet Material: Neodymium Magnet
Woofer
- Cone Material: Polypropylene Cone Pearl Mica Injection
- Voice Coil Type: Square Voice Coil Wire
- Magnet: Ferrite Magnet
- Frame: Injection Mold Frame
- Design: Ultra Long Excursion Design
SPECIFICATIONS
Power Handling
- Peak Power: 350 W
- RMS Power: 90 W
Dimensions
- Woofer Mounting Diameter: 15.0 cm x 22.2 cm
- Woofer Mounting Depth: 7.6 cm
General
- Frequency Response: 65 Hz to 19 kHz
- Impedance: 4 Ω
- Sensitivity: 91dB / W (1m)
