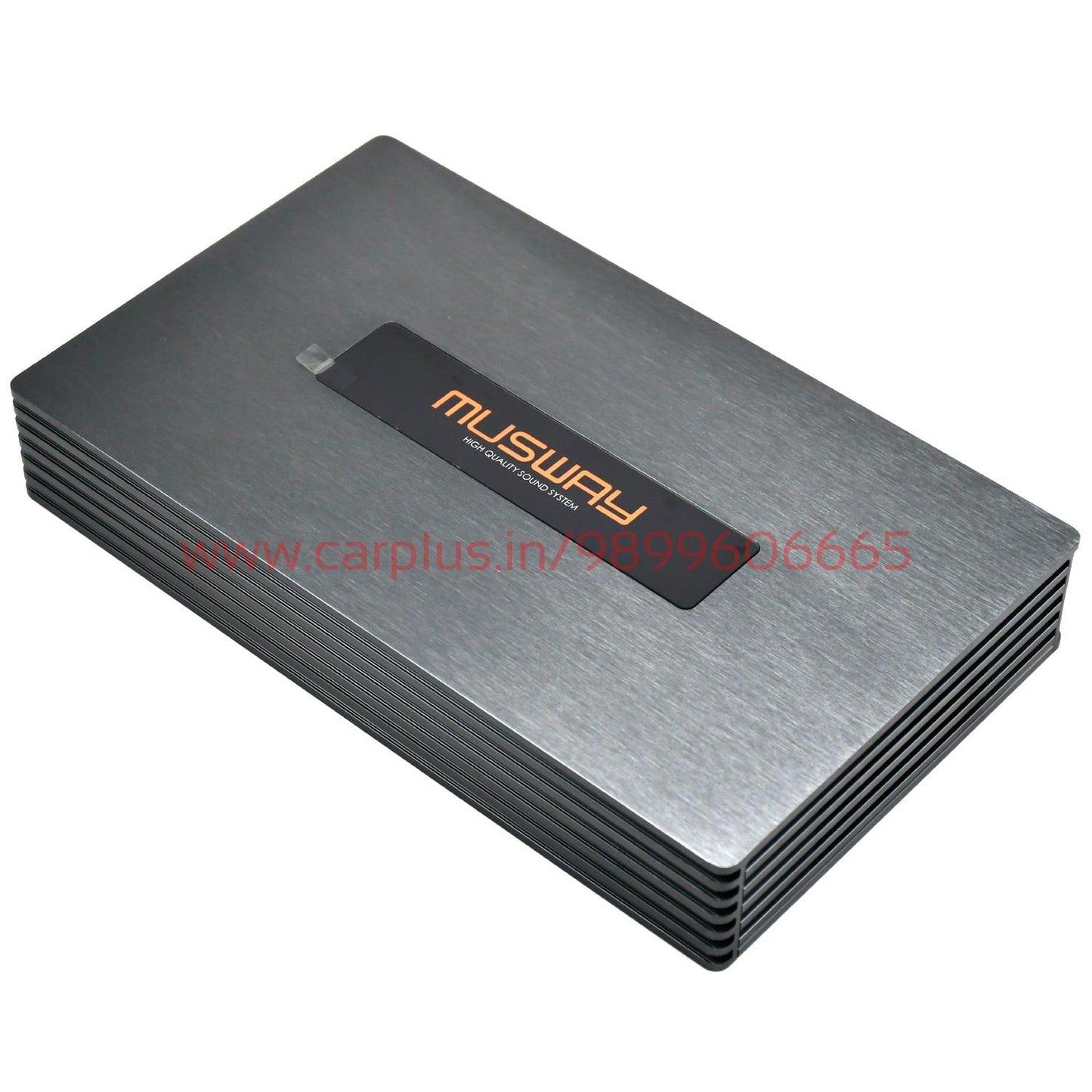

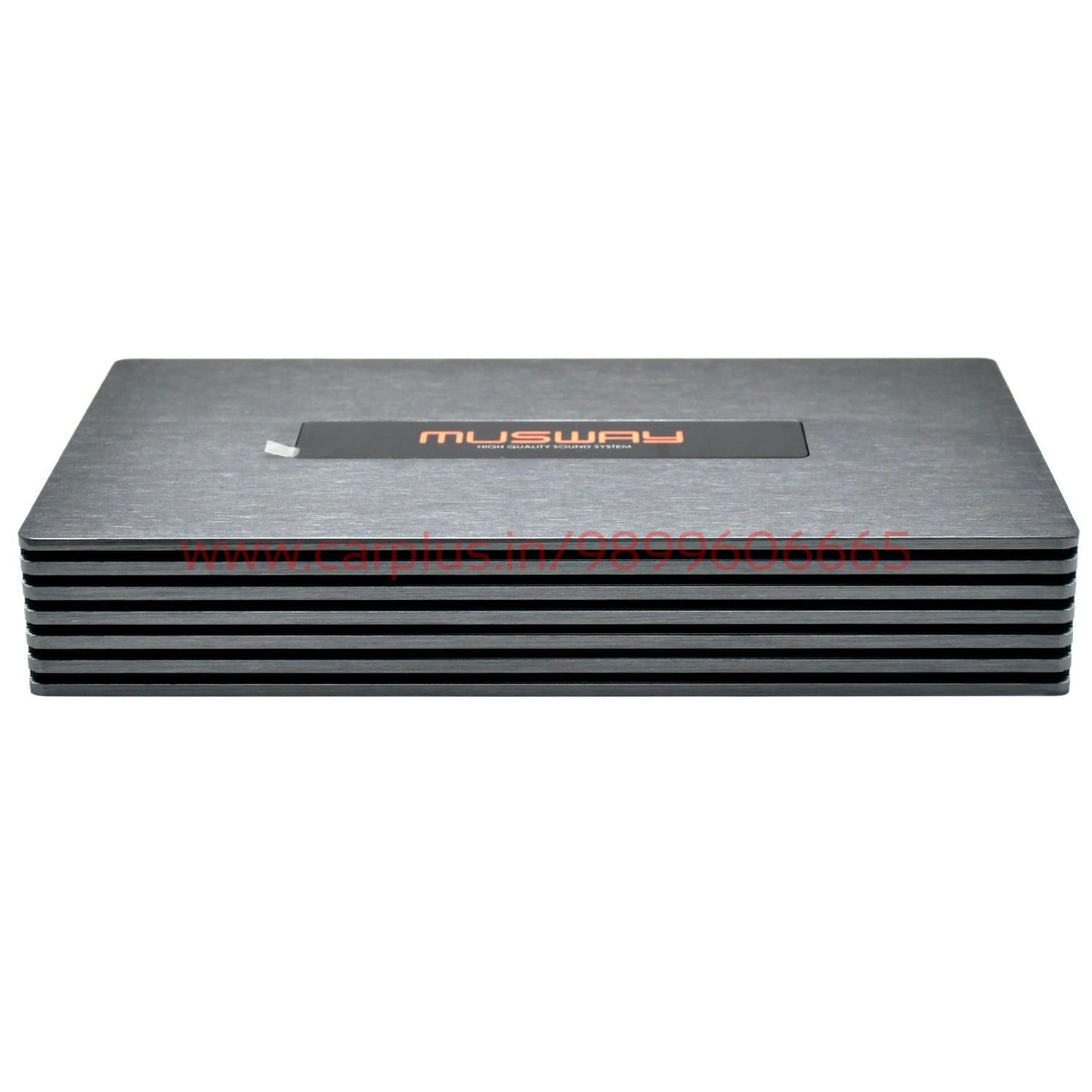

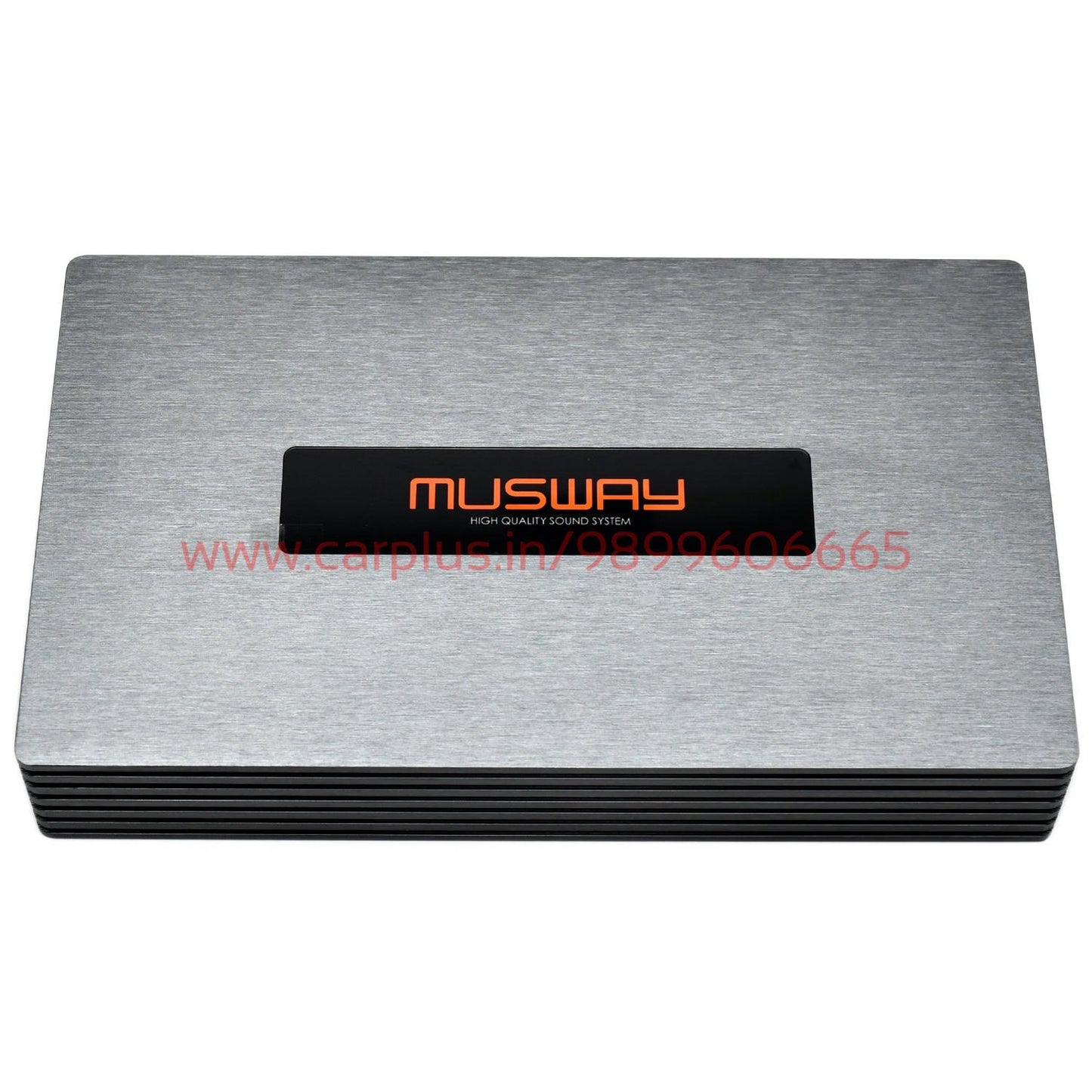

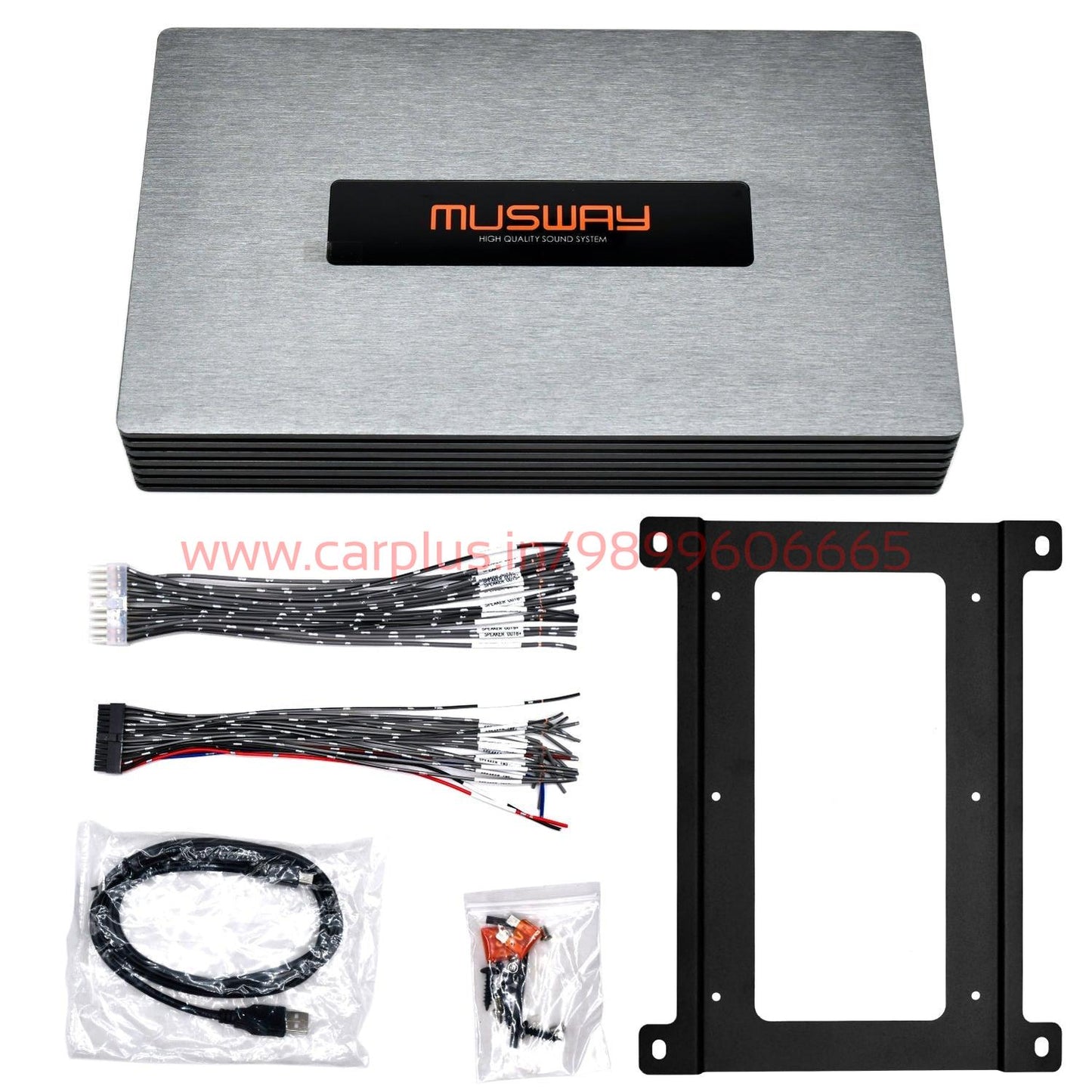

MUSWAY 12 Channel DSP with 10 Channel Amplifier - M10

The new Musway M10 amplifier impresses with its 10 Class-D channels and an integrated 14-channel DSP with four outputs. It is especially designed for hi-fi enthusiasts who want to create more complex car hi-fi speaker systems without complex wiring. With its two powerful subwoofer channels, the M10 is particularly well-suited for current BMW and Mercedes models that require the power of powerful under-seat or footwell subwoofers. The amplifier therefore offers an impressive selection of low-level and high-level inputs. In addition to six RCA inputs and one AUX input, there are also 10 high-level inputs available that can receive signals directly from the speakers. Channels 1-8 are designed for a load of 24 V/RMS, while channels 9 and 10 can even be driven with 32 V/RMS – ideal for vehicles with complex factory systems. Naturally, the high-level signals are protected with EPS® to prevent errors in the diagnostic system. Characteristics: • Intelligent high-level input with EPS ® (Error Protection System) • Start-stop ready, automatic switch-on function • Burr-Brown converter (PCM3168A) and Analog Devices DSP (ADAU1466) • Dual 64bit, 295 MHz DSP technology, controllable via DSP software and smartphone app • Soft clipping (power attenuation) in 2 ohm operation • Signal-to-noise ratio 95 dB, frequency response 15 Hz – 22 kHz (-3 dB) • Total harmonic distortion 0.05% (1 kHz, 4 ohms, 90% power) • Separately adjustable input sensitivity (channel 1-8, channel 9-10, AUX), clipping LED • External Bluetooth ® USB dongle BTS , BTS-HD & BTA2 for audio streaming & app control (optional) • Digital remote control DRC1 with OLED display for controlling various DSP functions (optional) Technical data: 8 x 80 / 135 watts RMS @ 4 / 2 ohms + 2 x 120 / 220 watts RMS @ 4 / 2 ohms 4 x 270 + 1 x 440 watts RMS @ 4 ohm bridged Dynamic Headroom Technology (DHR)*: • Channels 1-8: up to 155 watts RMS @ 2 ohms per channel • Channel 9/10: per channel up to 220 watts RMS @ 2 ohms 10 x high-level input with EPS ® 6 x low-level input RCA 2 x AUX input RCA 1 x Optical input/Stereo PCM 4 x preamplifier output RCA (configurable via DSP) 10 x speaker output amplified Dimensions: 280 x 45 x 166 mm Downloads: Operating instructions Test report (German) Test report (English) DSP software
