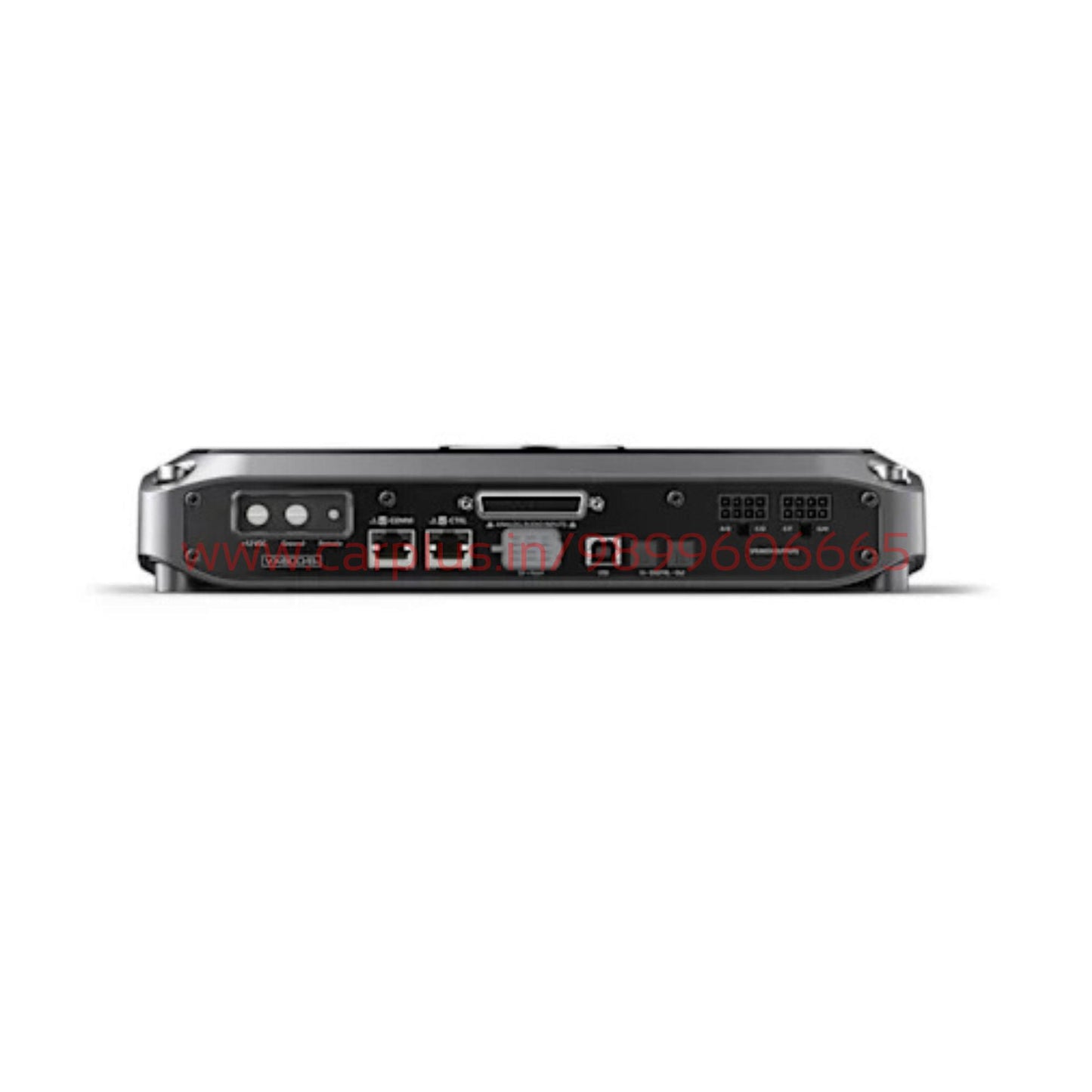

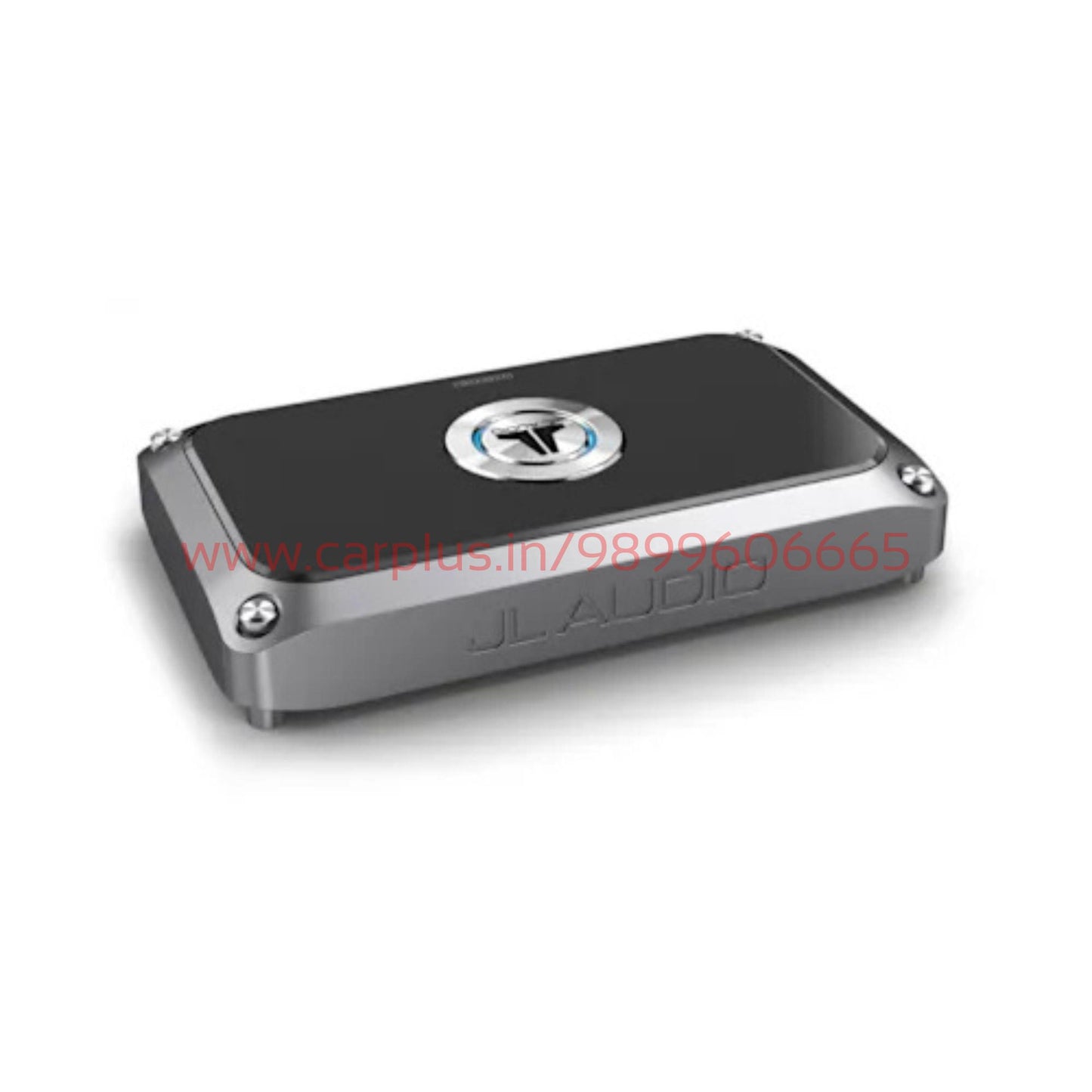

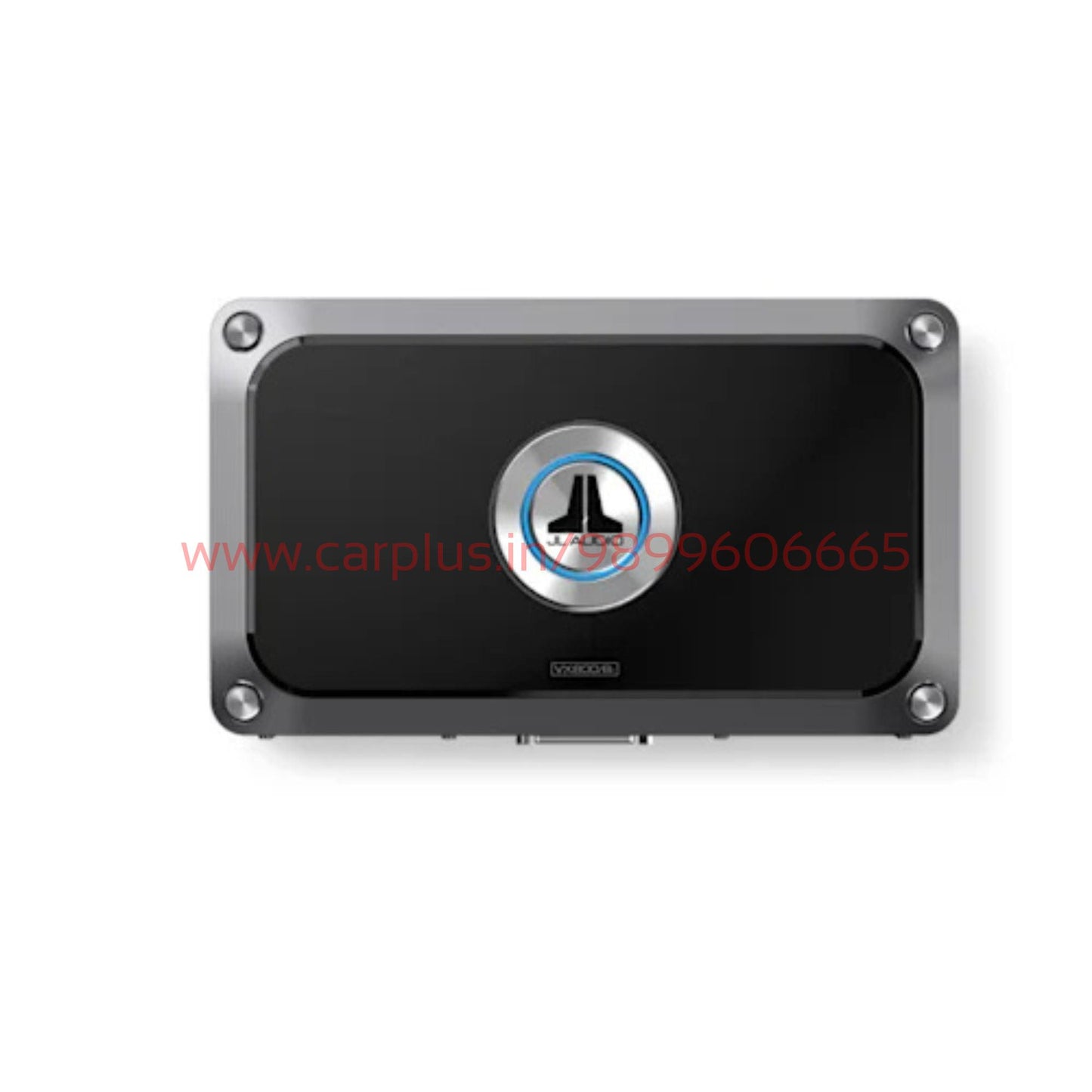

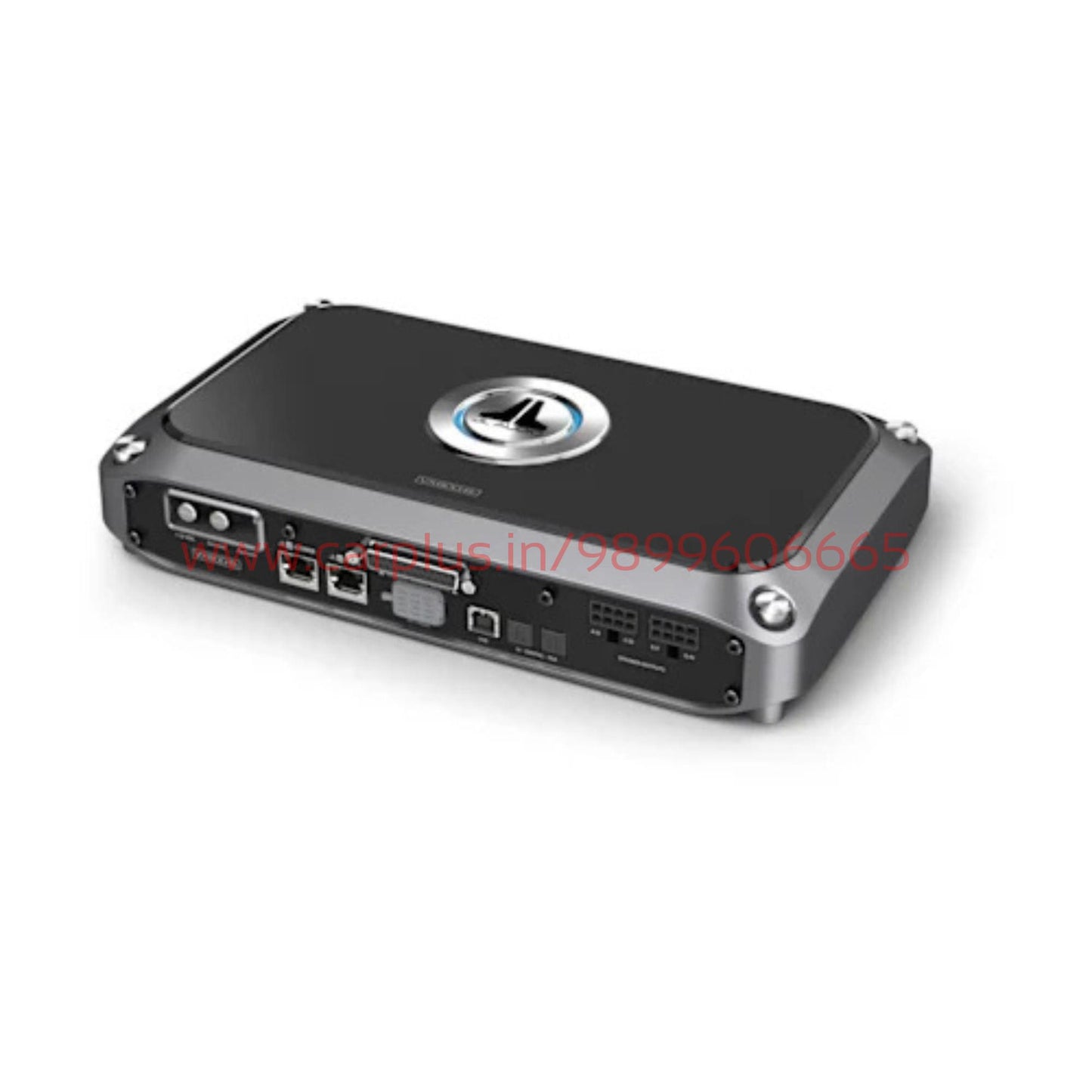

JL Audio 8CH D Full Range Amplifier with Integrated DSP (VX800/8i)

8-Channel Class D Full-Range Amplifier with Integrated DSP, 100 W x 8 @ 2 Ω / 75 W x 8 @ 4 Ω - 14.4V Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor. With our second-generation NexD2™ technology, the VX800/8i full-range amplifier outputs up to 75 watts per channel into 4 ohms, or 100 watts into 2 ohms. It can also be bridged into 4 ohms to deliver a powerful 200 W x 4. The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces. Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed. Amplifier includes: Power Connector (for 2 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harnesses (2), 6 ft A/B USB Cable SPECIFICATIONS Rated Continuous (RMS) Power @ 14.4 V @ 4 Ω 75 W RMS x 8 @ 2 Ω 100 W RMS x 8 Bridged @ 4Ω 200 W RMS x 4 Rated Continuous (RMS) Power @ 12.5 V @ 4 Ω 60 W RMS x 8 @ 2 Ω 90 W RMS x 8 Bridged @ 4Ω 180 W RMS x 4 GENERAL SPECIFICATIONS Frequency Response 12 Hz - 24 kHz (+0, -1dB) S/N Ratio, referred to highest rated power(Analog Inputs) 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W(Analog Inputs) 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to highest rated power(Digital Inputs) 101 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) S/N Ratio, referred to 1 W(Digital Inputs) 82 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) Damping Factor @ 4 Ω >100 / 50 Hz Damping Factor @ 2 Ω >50 / 50 Hz THD+N @ Rated Power <1% @ 2 Ω per Ch. Input Voltage Range @ RCA Inputs 200 mV - 16 V RMS Min.Copper Power / Ground Wire Gauge 4 AWG wire Fuse Rating 80 A (AFS, AGU or MaxiFuse™) PHYSICAL SPECIFICATIONS Height (H) 2.12 in / 54 mm Width (W) 11.32 in / 287 mm Depth (D) 6.62 in / 168 mm Net Weight 6.5 lb / 2.95 kg
