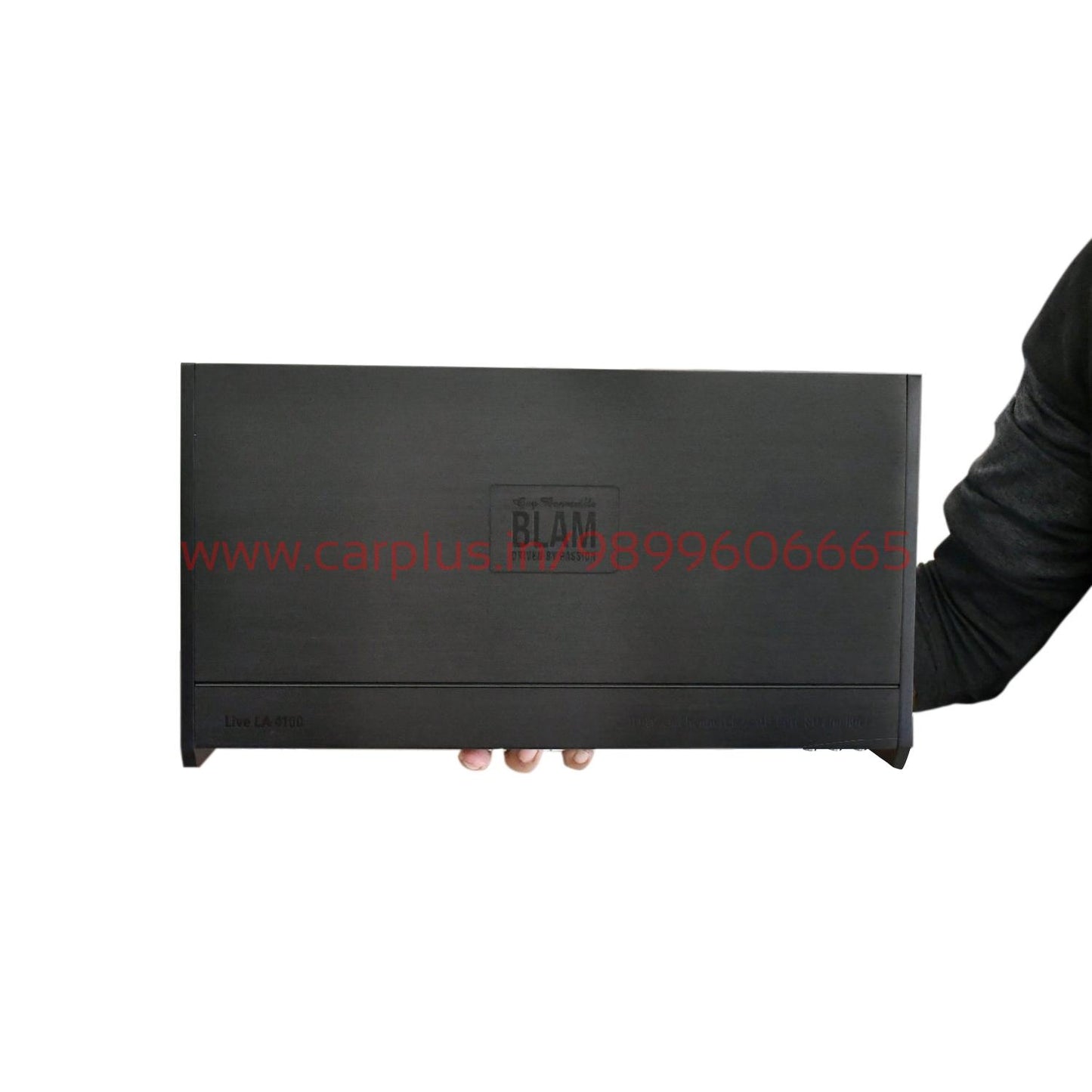

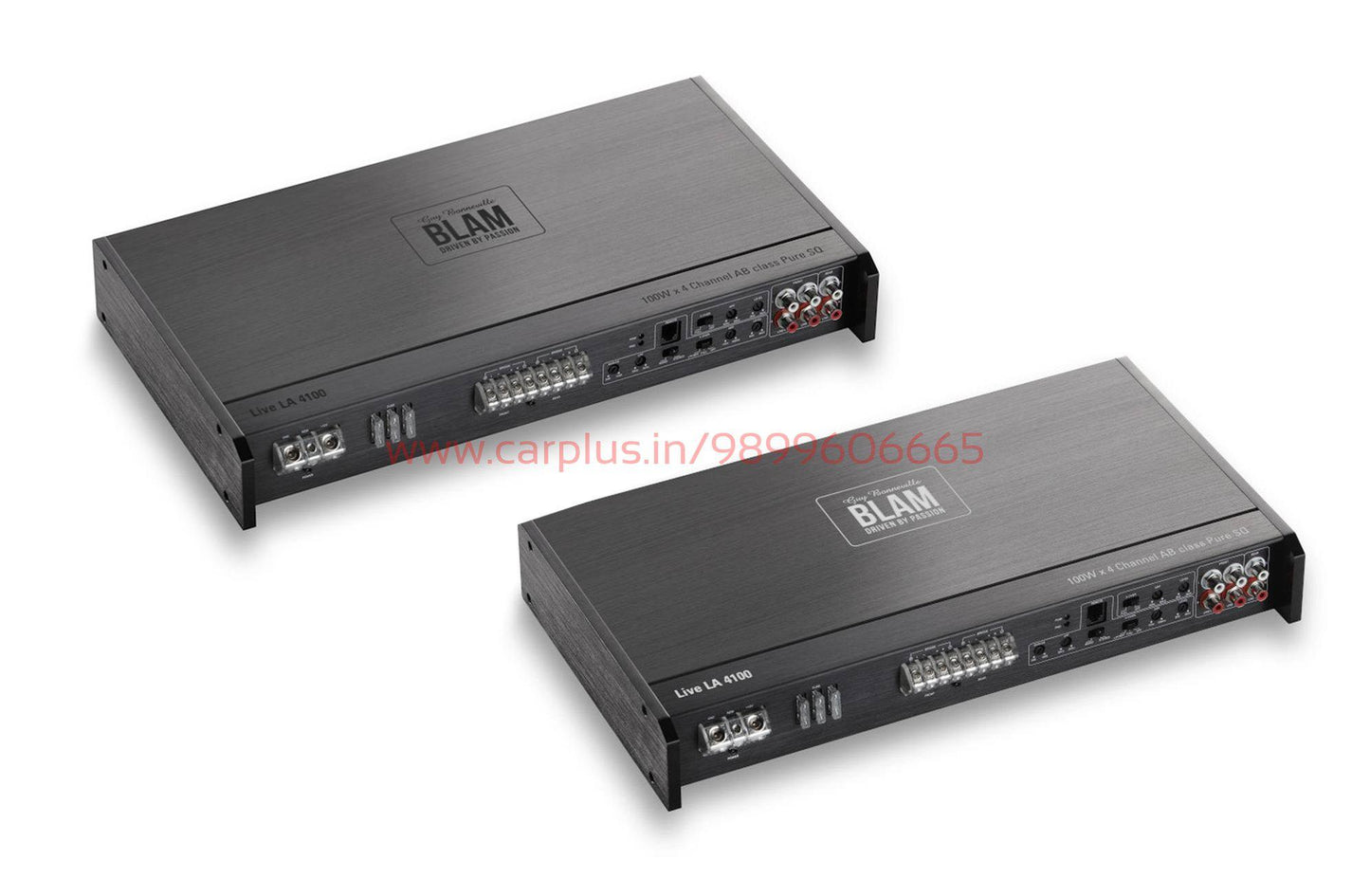

BLAM Live Series 100W x 4 Channel Class AB Pure SQ Amplifier - (LA 4100)

100 W X 4 CHANNEL CLASS AB PURE SQ AMPLIFIER – Low level RCA input: 0.5 V– RMS power (4 Ω) : 4 x 100 W– RMS power (2 Ω) : 4 x 130 W– Bridge power RMS (4 Ω) : 2 x 260 W Technical details We have developed the LIVE amplifiers taking into account all the parameters. We listened and compared each component until we reached our goals. The result is a monumental reserve of energy that transmits a natural music in its smallest details. The bass and extreme bass are faithfully reproduced with impressive strength. Due to their large volume, they have a large dissipation surface which ensures their cooling, stability and performance. They benefit from a sober and robust design, high quality finish and are available in two colors, black and silver. Composition – Low level RCA input: 0.5 V– RMS power (4 Ω) : 4 x 100 W– RMS power (2 Ω) : 4 x 130 W– Bridge power RMS (4 Ω) : 2 x 260 W– Low pass filter: 50 Hz – 3 kHz (12 dB/octave) Rear– High pass filter: 50 Hz – 3 kHz (12 dB/octave) (Front),15 Hz – 500 Hz (12 dB/octave) (Rear)– Frequency response: 10 Hz – 45 kHz– Bass boost: 0-10 dB at 45 Hz (Rear)– Signal to noise ratio > 90 dB– Remote subwoofer level control: 0 – 10 dB (Rear)– Mono/stereo selection (Rear)– Protections: short circuit / low impedance / reverse polarity / thermal protection– Dimensions (L x W x H): 416 mm x 217 mm x 60 mm – 16,3” x 8,5” x 2,4 LA 4100 DATA SHEETLA 4100 USERMANUAL
