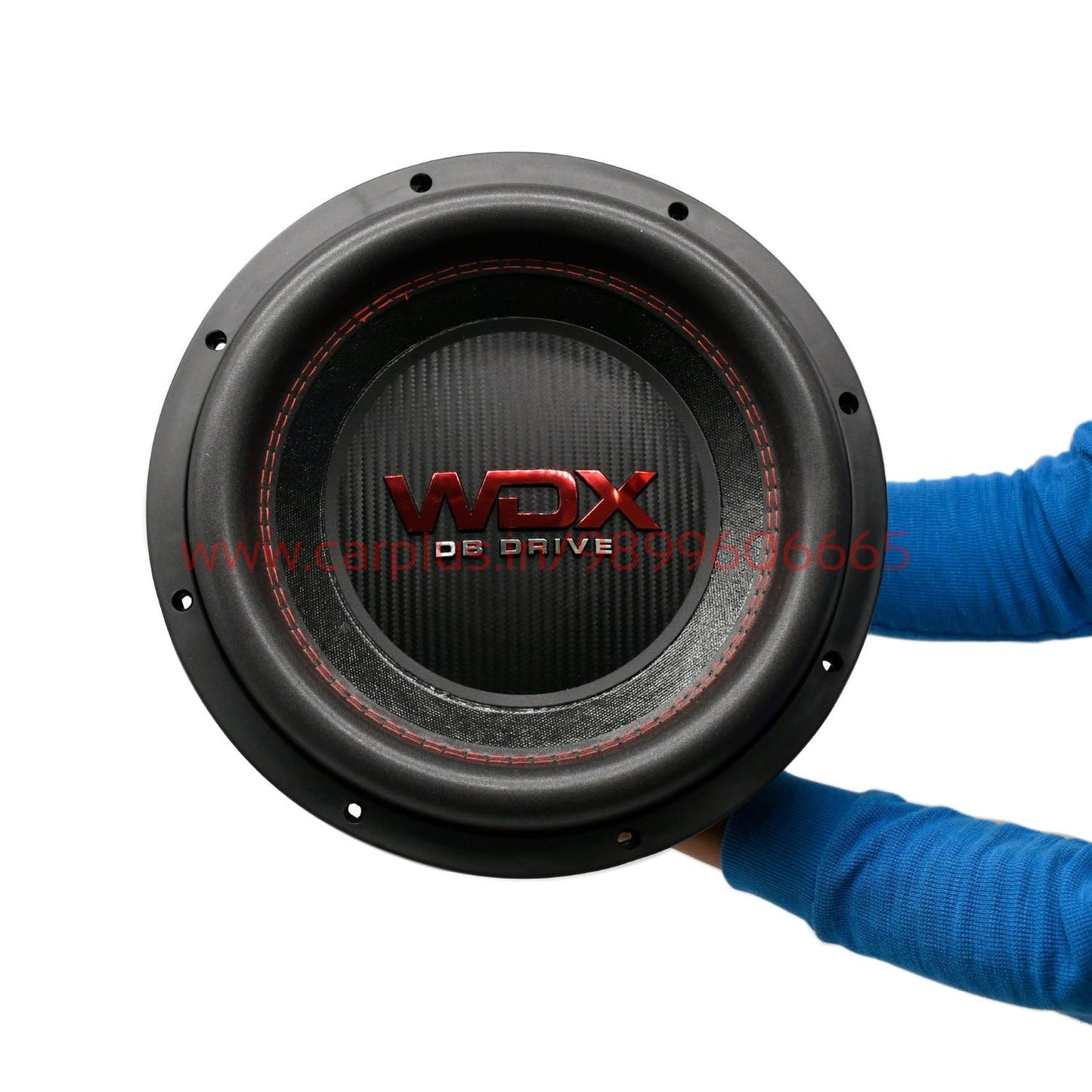

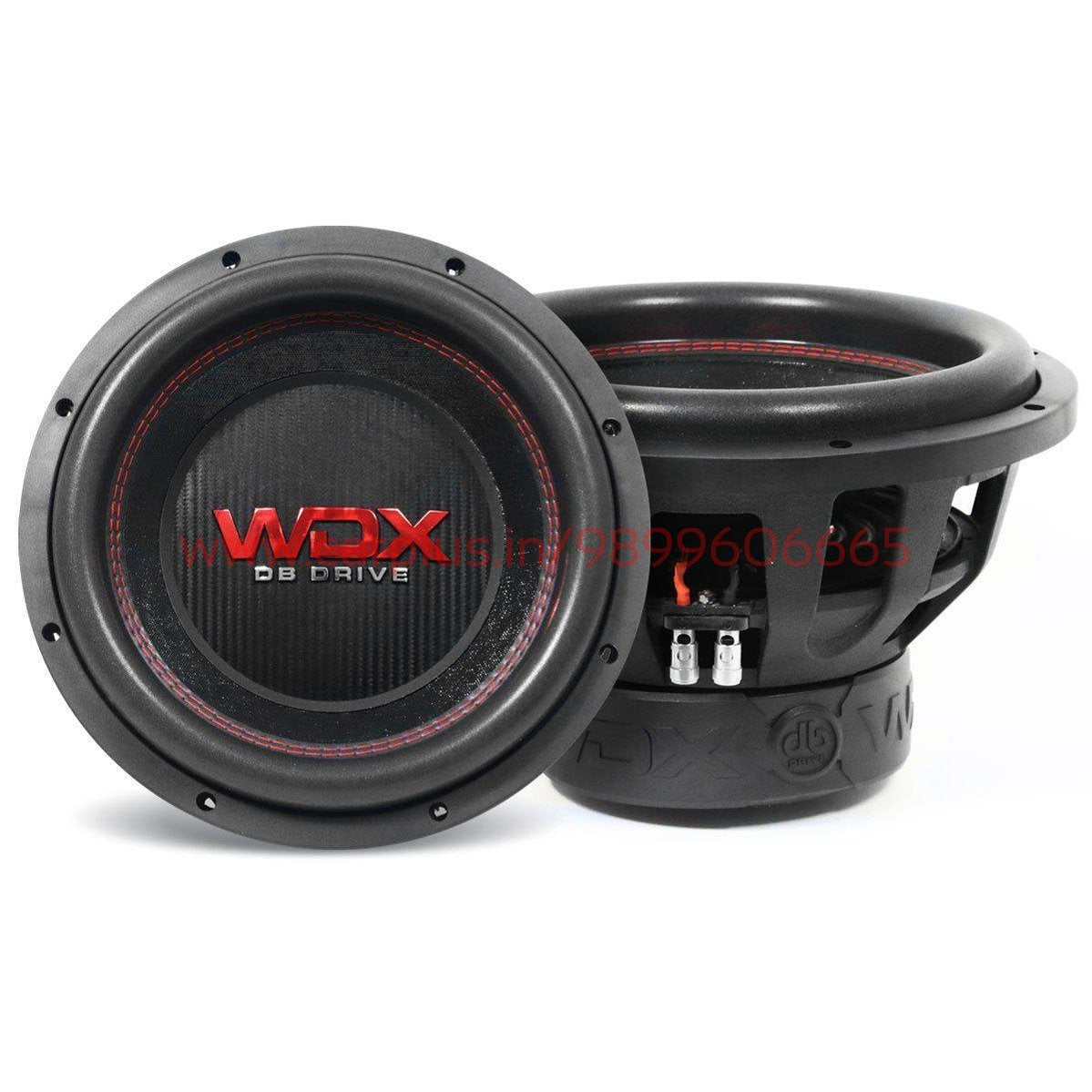

DB DRIVE WDX 12inch Subwoofer WDX12 G1.D4

PRODUCT DESCRIPTION- Our engineers at DB Drive have designed this subwoofer from the ground up to shake the ground up. The double stitched foam surround along with the die-cast aluminum vented basket allow for maximum excursion while the protective magnet cover gives the woofer a rugged yet stylish appearance. 3″ BASV High Temperature Voice coil Non-Pressed paper cone Double stitched foam surround Dual poly-cotton dampeners Die-cast aluminum vented basket Rubber gasket trim ring Large gauge compression terminals Protective magnet cover Physical Structure- Outside Diameter (A) 12.70″ (323.50mm) Cutout Diameter (B) 11.10″ (281.18mm) Mounting Depth (C) 6.85″ (173.80mm) General Specifications- Structure 12″ (30.48cm) Woofer Dynamic Power Handling 2000 Watts Nominal Power Handling 1000 Watts Impedance Dual 4Ω Voice Coil Parameters- Resonant Frequency (fs) 40.93Hz D.C. Voice Coil Resistance (Re) 3.2 x 3.2Ω Mechanical Quality Factor (Qms) 3.885 Electrical Quality Factor (Qes) 0.739 Total Quality Factor (Qts) 0.621 Equivalent Air Volume to Cms (Vas) 18.014 L Mass of Diaphragm/Coil (Mms) 335.972 g Force Factor (Bl) 13.679 Sound Pressure Level (SPL) 84.1 dB WIRING CONFIGURATIONYou can change the wiring configuration of your speakers (Series, Parallel and Series / Parallel) to match the impedance loads that maximizes the power output of you amplifier. Wiring the same woofer or multiple woofers in these three different wiring configurations will result in different impedance loads.Series: Is the method of wiring of alternate positive with negative terminals (string method) (Illustration below)Parallel:Is the method of wiring where you wire match 2 speaker terminals with positive to positive terminal and negative to negative. (Illustration below)Series/Parallel: This configuration is a combination of both series and parallel. We recommend series for the terminal and parallel for the leads to amp. (Illustration below).
